   Widely Application CNC Milling Controller
Application: CNC milling machinery; machining center; milling center; wood working machine; numerically control grinder.
SZGH High Quality Multifunctional CNC Milling Cnc Controller Milling Machine Controller Spindle Servo Speed Control 8537101101

Product Description



Feature:

1) three axis economic type milling controller
2) 64MB memory.
3) 32Mb user store room.

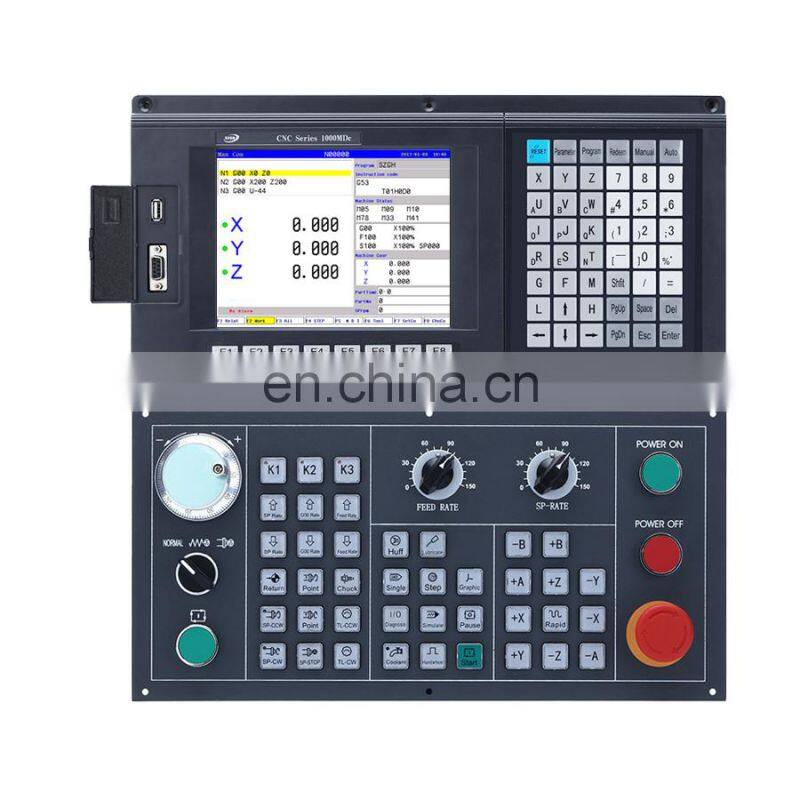

4) 640x480 8 inch real colour LCD displayer.
5) Touch screen main and sub panel.
6) High anti-jamming switch power.
7) USB movable U disc copy interface.
8) RS232 interface.
9) Spindle servo speed control/spindle frequency convertion speed control.
10) Manual pulse generator.
11) PLC and macro function
13) auto tool change function
12) English menu, program and interface, full screen edition
13) 32 bits high performance, low power consumption industrial grade ARM microprocessor.


Technical specification:

1) System technical parameter
controllable axesX,Y,Z five axes.
linkage axesArc 2-3 axes, liner 2-3 axes.
pulse equivalentX,Y,Zaxes:0.001mm.
max speed X,Y,Z60000mm/min.
cutting speed 1-10000mm/min.
min input unit 0.001mm.
program size range ± 99999.999.
99 tools management.
program code ISO-840 international standard.
program coordinate system definition ISO-841.
chassis protection complies with regulation of IP43.
2)System function
Auto-diagnosis function
All around diagnosis of CPU, storer, LCD, I/O interface, parameter status, coordinates, machining program etc. shall execute when the system starts or resets. In operation, it makes real time diagnosis of power, spindle, limit and all I/O interface.
Compensation function
automatic backlash compensation.
tool radius automatic compensation.
tool radius automatic offset and sharp angle transition.
leading screw pitch error automatic compensation.
Abundant instruction system
scaling up/down instruction
mirror machining instruction.
mutiple tool offset instruction.
program cycle, jump, call and different program ending.
multiple positioning instruction starting point setting fixed point,etc.
linera, circular spiral line interpolation instruction.
program management instructions: program cycle, call, transfer and different program ending method, etc.
6 work pieces coordinates system .
English menu, full screen edition
Easy operation, convenient viewing.
Abundant debugging functions
it can point out clearly what errors of operation are and guide to correct them.
Program changing between CNC system and IBM/PC series compatible computer
it can conduct CAD/CAM/CAPP auxiliary programming by using Pc series compatible computer's abundant software resources then transfer the CNC program into the system to machining through USB movable U disc copy port S232 port.Likewise it also can transfer the program from system to PC through communication port.

SZGH High Quality Multifunctional CNC Milling Cnc Controller Milling Machine Controller Spindle Servo Speed Control 8537101101



Packaging & Shipping



SZGH High Quality Multifunctional CNC Milling Cnc Controller Milling Machine Controller Spindle Servo Speed Control 8537101101
SZGH High Quality Multifunctional CNC Milling Cnc Controller Milling Machine Controller Spindle Servo Speed Control 8537101101
Our Services





• Lowest package prices -Always offer lower price than other companies.



• Professional technical engineer team- possible fastest response and support to client’ application demand.



• Quality guarantee – Free, one-years warranty and life-long maintenance. Any quality problem, SZGH promise to refund.



• Fast, professional and reliable International delivery – flexible and low cost delivery solution for clients.



• Free payment mode by T/T, L/C, western union and Paypal can be available.

SZGH High Quality Multifunctional CNC Milling Cnc Controller Milling Machine Controller Spindle Servo Speed Control 8537101101

We can provide total control system!
