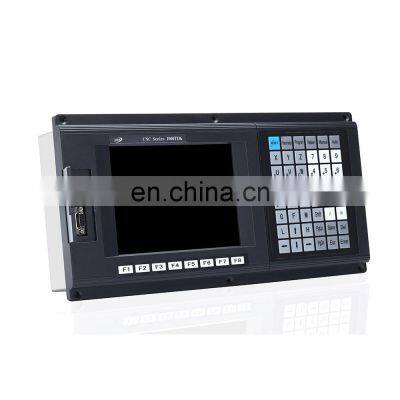

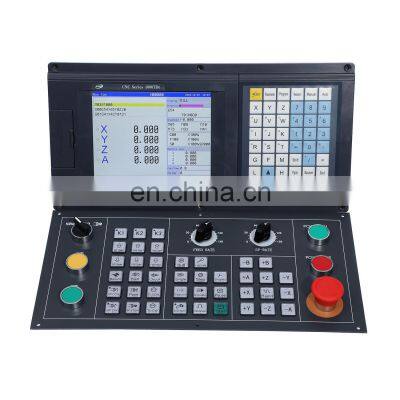

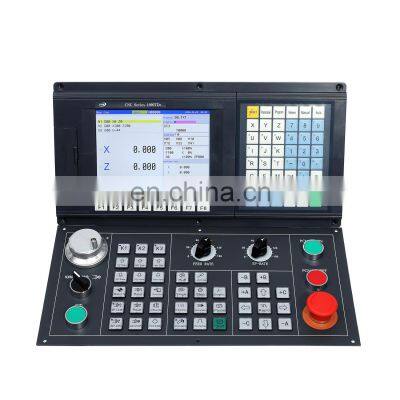

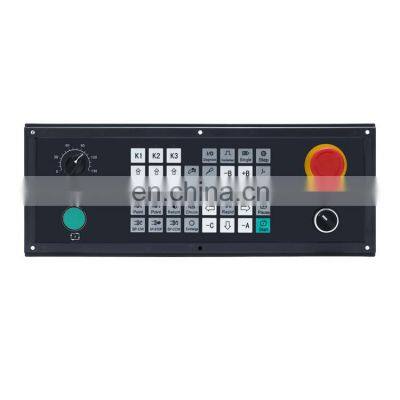

Help CenterSZGH-CNC1000TDb-2 2 Axis Lathe and Turning CNC Controller
Related Products
-
Updated 2 Axis CNC Threading Lathe Controller Similar as GSK Cnc Control SystemNegotiableMOQ: 1 -
Homemade 3 Axis CNC Milling Controller for Hobby Wood Router Machine Centre & Parts Cnc Mill Vmc Control Panel SzghNegotiableMOQ: 1
-
Lathe and Milling Machine for the Integration of the CNC ControllerNegotiableMOQ: 1
-
Powerful 4 Axis Mini Cnc Milling ControllerNegotiableMOQ: 1
-
Best 2 Axis CNC Lathe Controller With Servo Cnc Retrofit Kit Position Feedback Semi Closed Loop Control System for TurningNegotiableMOQ: 1
1) 800*600 8.4 Inches real color display
2) Support ATC function , Macro function,and PLC function
3) Support Electric Turret & Binary code turret, Max: 99 pcs of tools.
4) 5MHz Output Pulse Frequency,Max speed is 300m/min, feeding speed is 150m/min
5) 128MB Memory , 100Mb user store room,
6) Analog voltage output of 0~10V in two channels,support double spindles
7) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing
8) High anti-jamming switch power(220VAC -> DC 24V & 5V)
9) Built-in many plc programs,which can be edited freely.
10) With USB interface,it supports file operation in flash disk,system configuration and software upgrade
11) Display in chinese or english,which can be selected by parameter.
12) 32 bits high performance, low power consumption industrial grade ARM microprocessor.
13) I/Os : 56*32, can be edited freely
14) cutter offset : C
15) English menu, program and interface, full screen edition
Application: CNC lathe machinery; lathe & turning center; wood working machine; numerically control grinder; engraving CNC machine.
1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets
2.Commercial packing: plastic bag+ foam boxes + carton
3.As the clients' requirement
Delivery Detail: Normally ready goods and stock within 2-5 workdays
