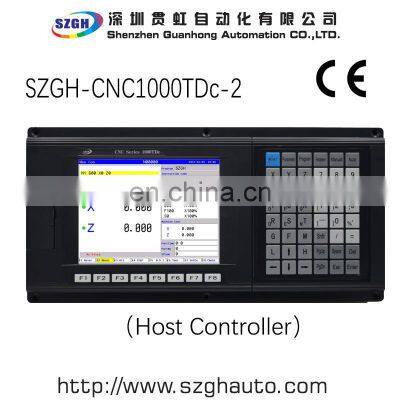

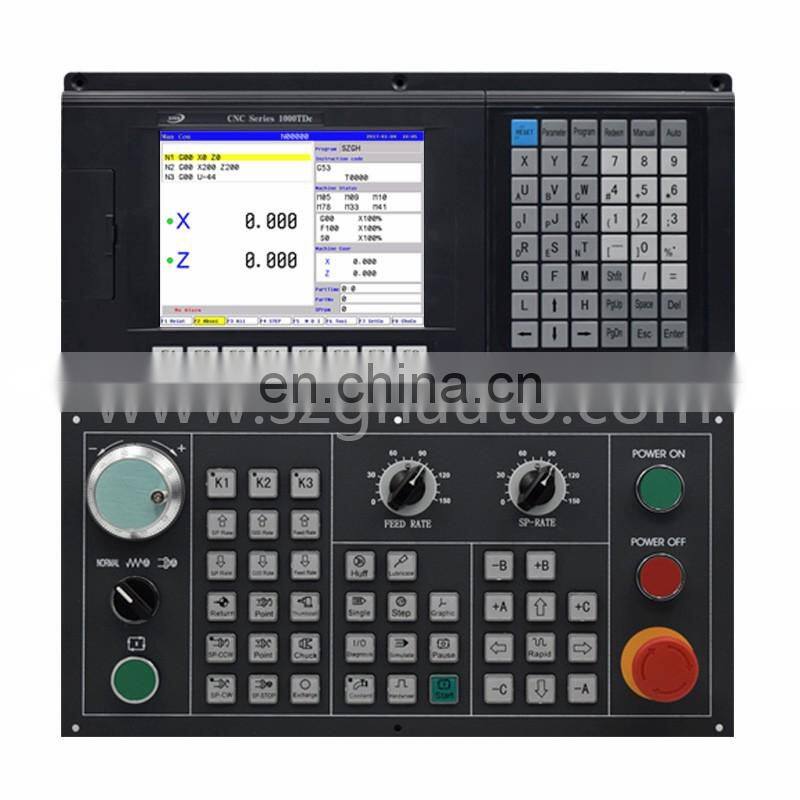

SZGH-CNC1000TDc-2 is High-performance type 2 Axis CNC controller for lathe & turning center ,with 8.4 inches
display(800x600) ,2 analog spindle ,2ms interpolation in high speed, support ATC , PLC function, Macro function &
Position feedback function, which obviously improve the efficiency, precision.
1) 800*600 8.4 Inches real color display
2) Support ATC function , Macro function,and PLC function
3) Support Electric Turret & Binary code turret, Max: 99 pcs of tools.
4) Support absolutely type servo system&linear scale, support position feedback function
5) 5MHz Output Pulse Frequency,Max speed is 300m/min, feeding speed is 150m/min
6) 128MB Memory , 100Mb user store room,
7) Analog voltage output of 0~10V in two channels,support double spindles
8) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing
9) High anti-jamming switch power(220VAC -> DC 24V & 5V)
10) Built-in many plc programs,which can be edited freely.
11) With USB interface,it supports file operation in flash disk,system configuration and software upgrade
12) Display in chinese or english,which can be selected by parameter.
13) 32 bits high performance, low power consumption industrial grade ARM microprocessor.
14) I/Os : 56*32, can be edited freely
15) cutter offset : C
16) English menu, program and interface, full screen edition
Speed |
Max speed: 300m/min feeding speed :0.001-30m/min
|
Interpolation mode |
Interpolation of linear ,arc ,thread and rigid tapping |
Tool Function |
Tool length compensation Tool nose radius compensation (C type) Tool wearing compensationTool length compensation |
Man-machine interface |
Display in Chinese or English Real-time clock
Operation authority of multiple-level management
|
Edit program |
Program capacity: 32M. Editing function: program/block/characters research ,rewriting and deleting
|
Community function |
RS232: files of part program can be transmitted USB: file operationand file directly processing in flash disk,support PLC programs,flash disk of software upgrade
|
Safety function |
Emergency stop Hardware and software travel limit
|
System operation condition |
Power supplying:AC 220V(+10/-15), Frequency 50Hz±2%. power:≤ 200W operation condition :temperature 0-45 degree,relative moisture 40-80%
|
• Certified actual products - We have a zero-tolerance policy for asset recovery vendors.
• Lowest package prices -Always offer lower price than other companies.
• Professional technical engineer team- possible fastest response and support to clients' application demand.
• Quality guarantee – Free, one-years warranty and life-long maintenance. Any quality problem, SZGH promise to refund.
• Fast, professional and reliable International delivery – flexible and low cost delivery solution for clients.
• Free payment mode by T/T, L/C, western union and Paypal can be available.
