Home > Instruments & Meters > Meter for Electricity > Voltage Meter > Two-wire DC Digital Display Voltage Meter 0.56 Inch LED Digital Voltmeter DC7V-120V Connection Reverse Protection

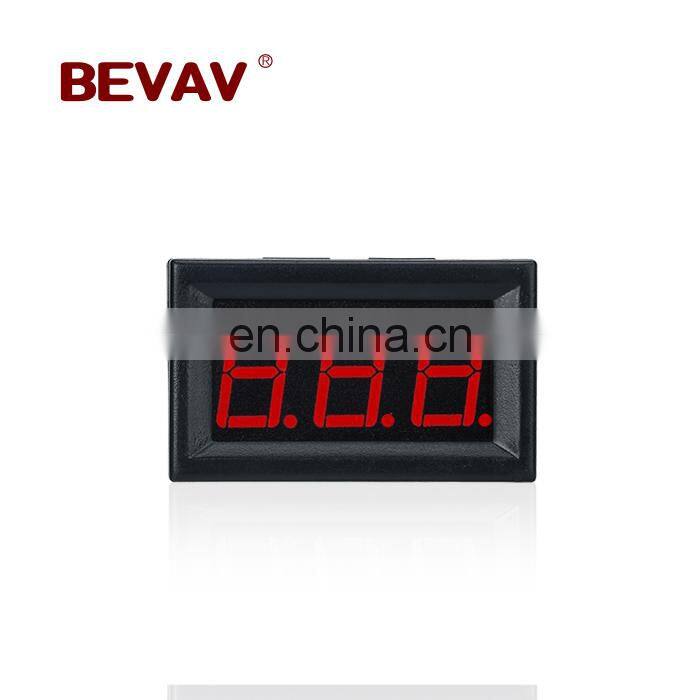

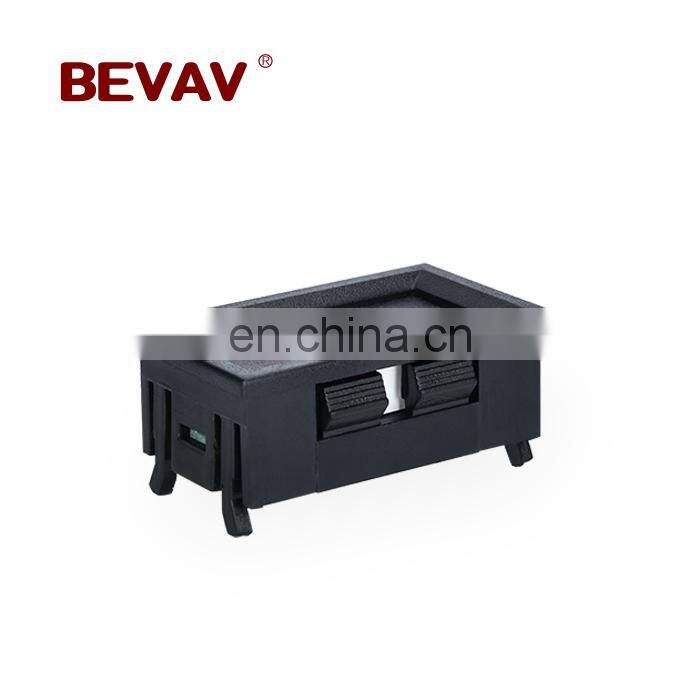

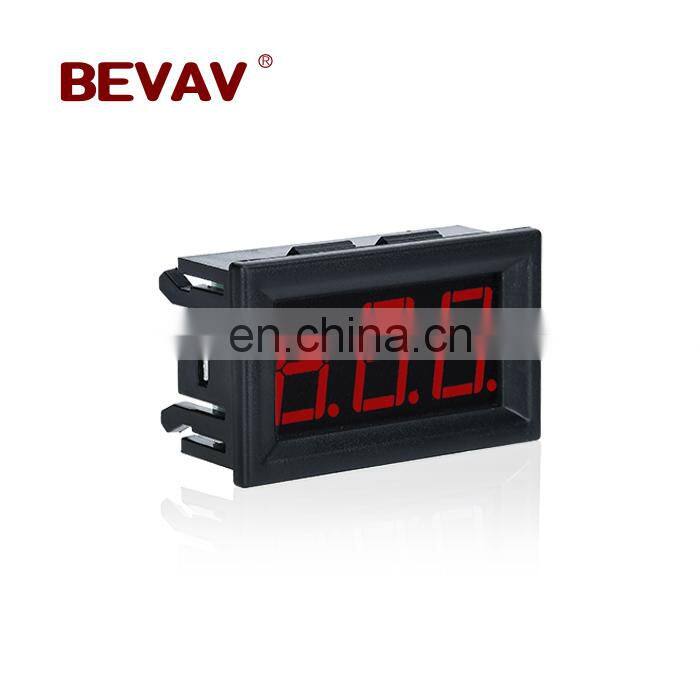

Two-wire DC Digital Display Voltage Meter 0.56 Inch LED Digital Voltmeter DC7V-120V Connection Reverse Protection
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1991
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Two-line Digital Power Meter,electric Car Battery Meter Lead Acid Lithium Battery Power Meter Power IndicatorNegotiableMOQ: 1 -
BEVAV A+ Quality 1 Phase 2 Wire Energy Meter DDS40A Series DIN Rail Digital KWH Meter 10(40)A 220VNegotiableMOQ: 1
-
BEVAV A+ Quality XD60 Single Phase AC Voltage Panel Meter Voltmeter AC80-500vNegotiableMOQ: 1
-
BEVAV A+ Quality Single Phase AC Voltage Meter, Digital VoltmeterNegotiableMOQ: 1
-
High Quality XD80 Single Phase Current Ammeter Meter Digital Panel MeterNegotiableMOQ: 1
Specification:
Voltage Test Range: DC7-120V
Size: 48*29*16mm(1inch=2.54cm)
Wire Lenth :20cm

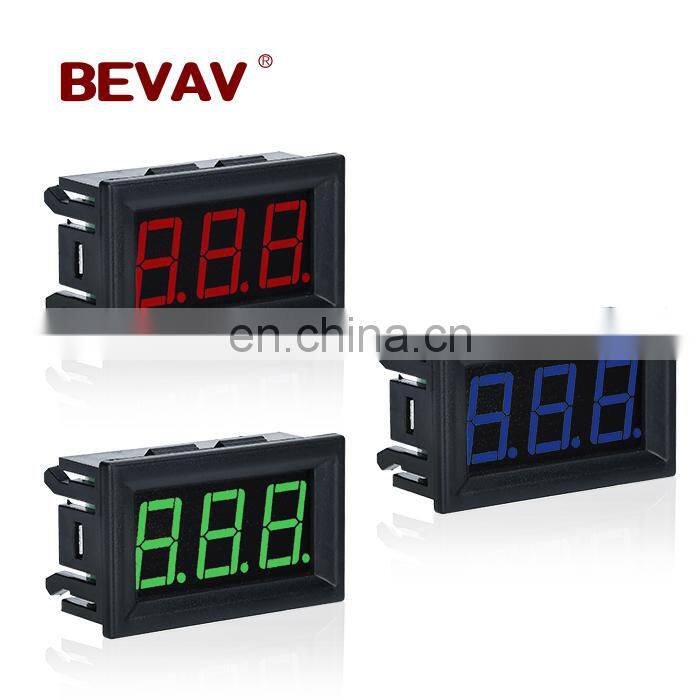

Colour Display: Red, Green and Blue
Size: 48*29*16mm(1inch=2.54cm)
Wire Lenth :20cm
Colour Display: Red, Green and Blue
Supply voltage: 4.5-30V (wide range)
Test voltage: 0 ~ 100V
The minimum resolution below 10V: 0.01V
The minimum resolution above 10V: 0.1V
Display screen: 1.36 inch LED
Operating current:<20mA
Measuring speed:≥ 500mS / times
Accuracy: 1%(± 1 word)
Minimum operating voltage: +4.5 V
Maximum operating voltage: +30 V
Operating temperatures: -10+65
Test voltage: 0 ~ 100V
The minimum resolution below 10V: 0.01V
The minimum resolution above 10V: 0.1V
Display screen: 1.36 inch LED
Operating current:<20mA
Measuring speed:≥ 500mS / times
Accuracy: 1%(± 1 word)
Minimum operating voltage: +4.5 V
Maximum operating voltage: +30 V
Operating temperatures: -10+65

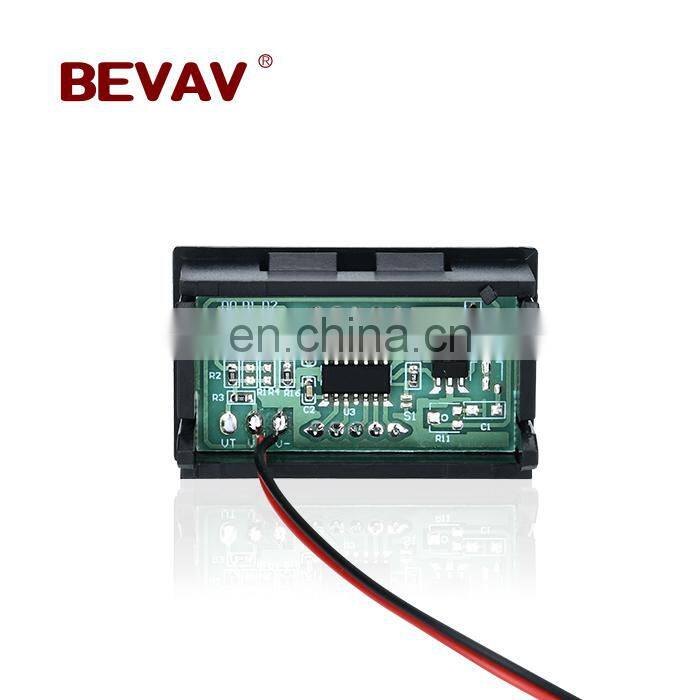

Remark: 1,This voltmeter's wiring is simple,it only need to connect two wires,the red wire is to connected to positive pole,the black wire is to connected to negative pole. There is protection when the wires aren't correctly connected,the electric circuit won't be bumed.
2,This voltmeter doesn't need external drive working power,it can work with measuring voltage,the working voltage's range is4.5-30V.
3,To reach the best measurement accuracy,this voltmeter will automatically move the decimal point's position according to the different measuring voltage. When it measures the voltage below 10V,it will display two places after decimal point. When it measures the voltage above 10V,it will display one place after decimal point.
4,This voltmeter can be used to measure the storage battery's voltage in motorcycles and cars and also can grasp the storage battery's status. It also can be used to measure other voltage.
