DIN Rail Digital Wireless 4G 3 Phase Mobile Smart Meter Mqtt Ethernet Smart Energy Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Remote Reading Smart Energy Monitor Single Phase Electric MeterNegotiableMOQ: 1 -
3 Phase DIN Rail Iot Current Meter Wifi Energy Meter Electrical Meter ManufacturerNegotiableMOQ: 1
-
DIN Rail Digital Wireless 3 Phase Smart Energy Monitor Lora Energy MeterNegotiableMOQ: 1
-
Industrial IOT DIN Rail 3 Phase Digital 4g Wireless Smart Meter Electric Power AnalyzerNegotiableMOQ: 1
-
Class 0.5s DIN Rail 3 Phase Wireless Iot Current Meter Wifi Energy Analyser MetersNegotiableMOQ: 1
Product Overview

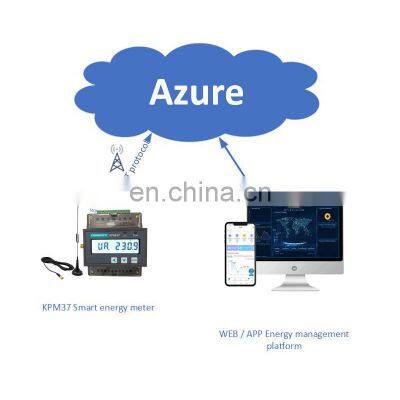

Solution diagram
T@energy wisdom energy management system can connect to KPM37 3 phase smart energy monitor lora energy meter through RS485/WiFi/4G/Lora, etc.
The meter can send data to cloud server through 4g, WIFI through mqtt directly.
KPM37 DIN rail digital wireless 3 phase smart energy monitor lora energy meter
KPM37 3 phase smart energy monitor lora energy meter adopts DIN 35MM rail type installation structure and LCD display. It integrates three-phase electric parameter measurement, 2~31st harmonic analysis and time statistics. KPM37 default communication is Modbus-RTU by RS485 interface. WiFi, 4G, Lora communication are optional. The meter can also expand 2-way digital input and 2-way relay output, 4-way temperature measurement and 1 way residual current measurement.
FEATURES AT A GLANCE
Application
1. Intelligent distribution management system
2. Internal energy consumption statistical analysis and charging statistics basis
3. Energy metering, automatic meter reading system
4. Energy and energy efficiency management system
1. Intelligent distribution management system
2. Internal energy consumption statistical analysis and charging statistics basis
3. Energy metering, automatic meter reading system
4. Energy and energy efficiency management system
Details Images
Product Paramenters
Technical Parameters - KPM 37 3 phase smart energy monitor lora energy meter |
Item |
Data |
||
accuracy class
|
Voltage: 0.2; Current: 0.2; Frequency: 0.02; Power Factor: 0.5 |
37.5KW |
||
2 |
Active Power: 0.5S; Reactive Power: 2.0 |
2.8 M3 |
||
3 |
Active Energy: 0.5S; Reactive Energy: 2.0 |
125Ton |
||
Rated Value |
Voltage: 57.7/100V, 220/380V,380/660V |
|||
5 |
Max. breakout force |
Current: 5A (0~6A) |
||
6 |
Overload |
Voltage: Sustained Overload: 1.2 times of the rated value |
||
7 |
Engine displacement |
Momentary Overload: 2 times of the rated value, allows 1s |
||
8 |
Max. torque |
Current: Sustained Overload: 1.2 times of the rated value |
||
Momentary Overload: 20 times of the rated value, allows 1s |
||||
Frequency |
45-60Hz |
|||
Pulse Output |
1 |
|||
Interface |
RS485 / WIFI / 4G/ Lora Modbus-RTU,DL/T645-2007, MQTT, 1200~38400bps
|
|||
Working Range |
AC: 85-265V; DC: 80-300V |
|||
Consumption |
< 0.5VA per phase |
|||
Temperature |
Operating: -25°C~+70°C. Storage: -30°C~ +75°C |
|||
Humidity |
5%~95% No condensation |
|||
Altitude |
<3000m |
|||
Dimensions: |
75*88*74mm |
|||
Certifications
Company Profile
R&D Dept.
More than 40 R&D engineer, including software team, hardware team.
Production shop
Lean production management， guarantee product delivery and quality.
Sales office
International trade and deomestic sales for globle market.
