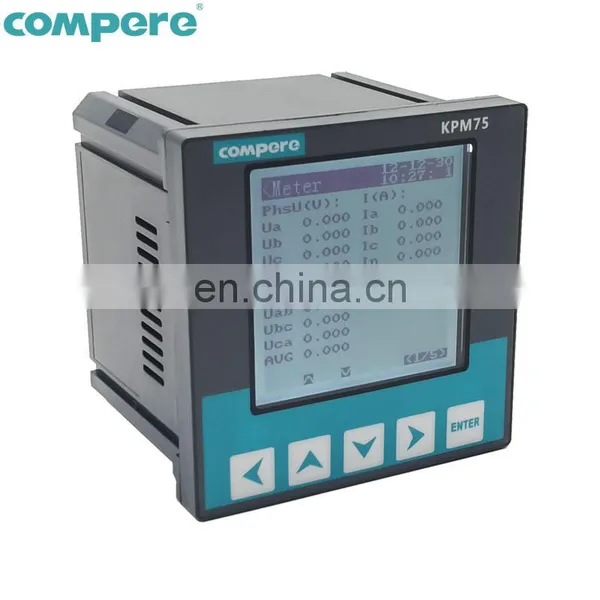

KPM75 SOE record 3 phase digital modbus network analyzer meter power analyser data logger
power analyser data logger Applications:
1.Measure,monitor and control power distribution system parameters.
2.Collect energy consumption data that cost center analysis needs.
3.Power quality analysis(Harmonic,voltage interruption,flicker and so on).
4.Signal control alarm.
Function Features for power analyser data logger
1. Measure the real effective value of all-parameter.
2.63th harmonic measurement and analysis.
3.Measure voltage imbalance rate,voltage deviation,frequency deviation and other power quality parameters.
4.Measurement and recording voltage fluctuations and flicker,inter-harmonics and other power quality parameters.
5.Short-term interruption of voltage,surge,sudden drop and other power quality events recorded.
6.Demand statistics function, record the current value and maximum value.
7.0.2S four quadrant power statistics.
8.Can set 4 kinds rates 8 time period multi-rate power statistics.
9.RS485 communication interface, Modbus-RTU protocol,Optional Profibus-DP.
10.1 road passive optical coupler collector active pulse output.
12.Can be extended 4-way passive switch value input.
13.Instrument working hours, load time statistics
14.160 * 160 graphic LCD screen,rich in content,intuitive and clear.
15.Pluggable design,appearence design patents,replacement and maintenance easy.
| Technical Parameters - KPM73 power analyser data logger | ||
| Accuracy Class | Voltage: 0.2; Current: 0.2; Frequency: 0.02 Hz; Power Factor: 1.0 | |
| Active Power: 0.5 Reactive Power: 2.0 | ||
| Active Energy: 0.2S; Reactive Energy: 2.0 | ||
| Input | Rated Value |
Voltage: 57.7/100V, 220/380V,380/660V Current: 1A(0~1.2A), 5A (0~6A) |
| Overload | Voltage: Sustained Overload: 1.2 times of the rated value | |
| Momentary Overload: 2 times of the rated value, allows 1s | ||
| Current: Sustained Overload: 1.2 times of the rated value | ||
| Momentary Overload: 20 times of the rated value, allows 1s | ||
| Frequency | 45-60Hz | |
| Functional Module | Pulse Output | 1 |
| Interface |
1*RS485; Modbus RTU protocol; Baud Rate: 1200-38400 bps Optional Profibus-DP protocol, 9600~12Mbps |
|
| Power Supply | Working Range | AC: 85-265V; DC: 80-300V |
| Consumption | < 3VA | |
| Working Condition | Temperature | Operating: -25°C~+70°C. Storage: -30°C~ +75°C |
| Humidity | 5%~95% No condensation | |
| Altitude | <4000m | |
| Dimensions: | 96×96×88mm | |

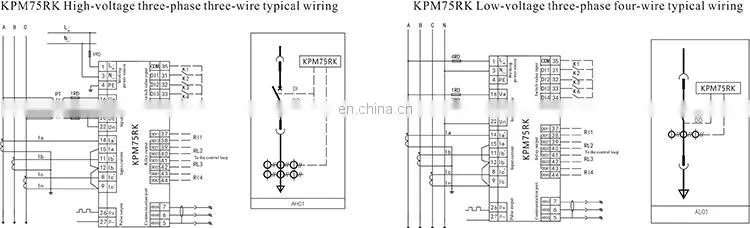

KPM 75 network analyzer meter power analyser data logger typical wiring diagram
1.Experienced manufacturer more than 10 years.
2.Highly experienced production team in Compere factory work-shop.
3.QC System:Quality controlled on all production lines,and QC inspectors work independently from the production line.
4.Good quality production with quick delivery.
5.Accepted OEM/ODM.
6.Accepted small MOQ.
7.Trade Assurance on Alibaba.
8.Factory certification:CE,RoHS and ISO9001.
|
|
|
| KPM73 Power quality analyzer | KPM 53 Three phase smart power meter | KPM 51 Single phase smart energy meter |
