Digital Panel Smart Energy Logger Lcd Multifunction Three Phase Power Meter Monitor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KPM10 LCD Panel Digital Power Monitor 3 Phase Watt Power Meter Rs485NegotiableMOQ: 1 -
Power Monitoring System Meter Digital Panel 3 Phase Power Factor AnalyzerNegotiableMOQ: 1
-
COMPERE KPM10 Digital Rs485 Power Meter 3 Phase Watt Meter Power MonitorNegotiableMOQ: 1
-
Multi Functional Digital Panel Smart Energy Monitor Meter 3 Phase Power AnalyzerNegotiableMOQ: 1
-
Electrical Power Monitoring Digital Rs485 Power Meter 3 Phase Energy MeterNegotiableMOQ: 1
Product Overview

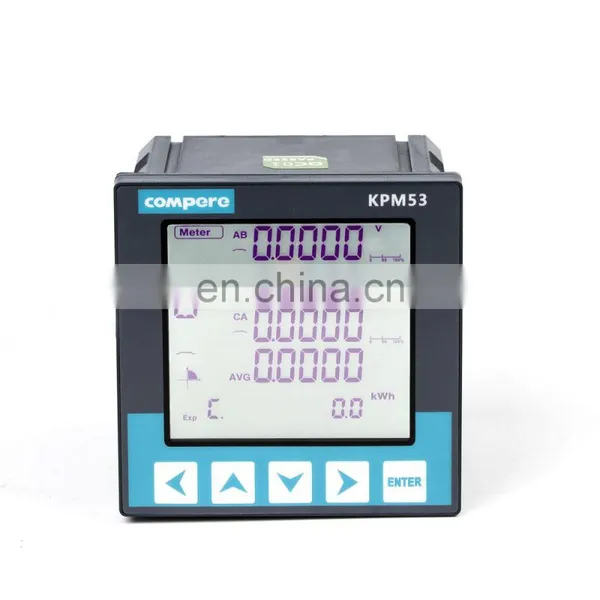

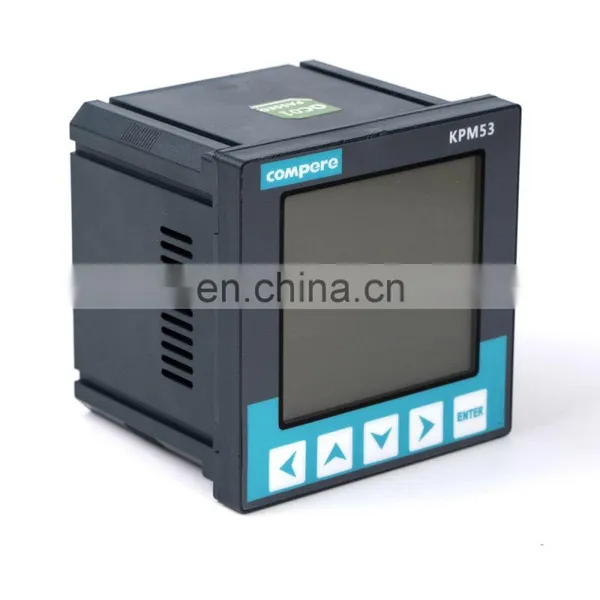

Digital panel smart energy logger lcd multifunction three phase power meter monitor
KPM53 multifunction three phase power meter monitor is used to measure three-phase electrical parameters ,display, power statistics,power quality analysis,digital input/Output and network communications in one.
FEATURES AT A GLANCE
1.Alternative analog pointer table.
2.Display and control of electrical parameters in mid-low voltage distribution System.
3.Collect energy consumption data that cost center analysis needs.
4.Green building or DC.
Details Images
Product Paramenters
Technical Parameters |
||||||||
KPM 53 three phase power meter monitor |
||||||||
Accuracy Class |
Voltage: 0.2; Current: 0.2; Frequency: 0.02 Hz; Power Factor: 0.5 |
|||||||
Active Power: 0.5S; Reactive Power: 2.0 |
||||||||
Active Energy: 0.5S; Reactive Energy: 2.0 |
||||||||
Input |
Rated Value |
Voltage: 57.7/100V, 220/380V,380/660V Current: 1A(0~1.2A), 5A (0~6A)
|
||||||
Overload |
Voltage: Sustained Overload: 1.2 times of the rated value |
|||||||
Momentary Overload: 2 times of the rated value, allows 1s |
||||||||
Current: Sustained Overload: 1.2 times of the rated value |
||||||||
Momentary Overload: 20 times of the rated value, allows 1s |
||||||||
Frequency |
45-60Hz |
|||||||
Functional Module |
Pulse Output |
1 |
||||||
Interface |
1*RS485; Modbus RTU protocol; Baud Rate: 1200-38400 bps |
|||||||
Power Supply |
Working Range |
AC: 85-265V; DC: 80-300V |
||||||
Consumption |
< 3VA |
|||||||
Working Condition |
Temperature |
Operating: -25°C~+70°C. Storage: -30°C~ +75°C |
||||||
Humidity |
5%~95% No condensation |
|||||||
Altitude |
<4000m |
|||||||
Dimensions: |
96×96×88mm |
|||||||
