Product Overview

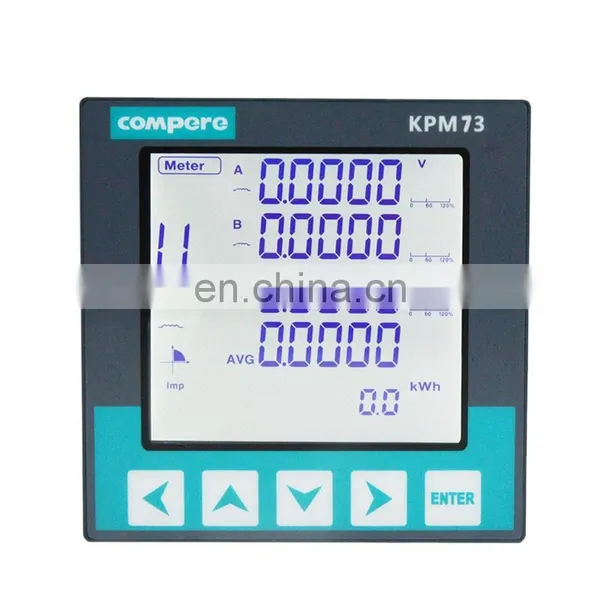

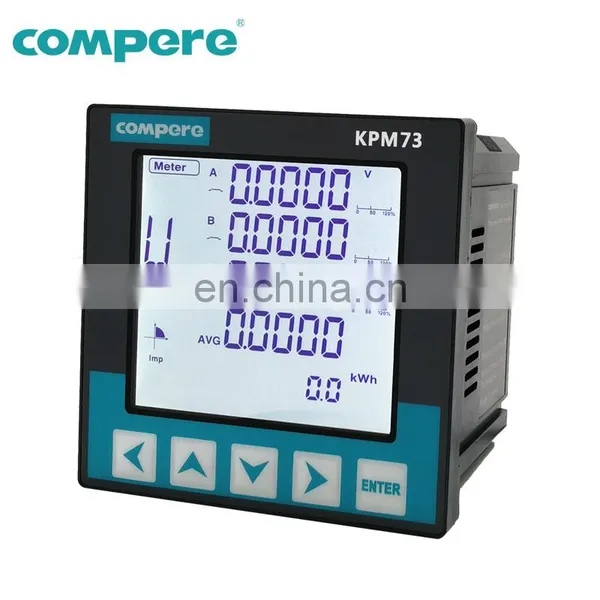

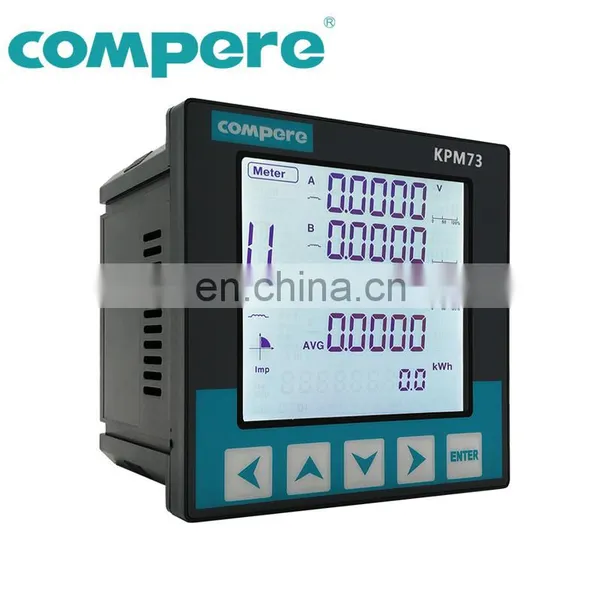

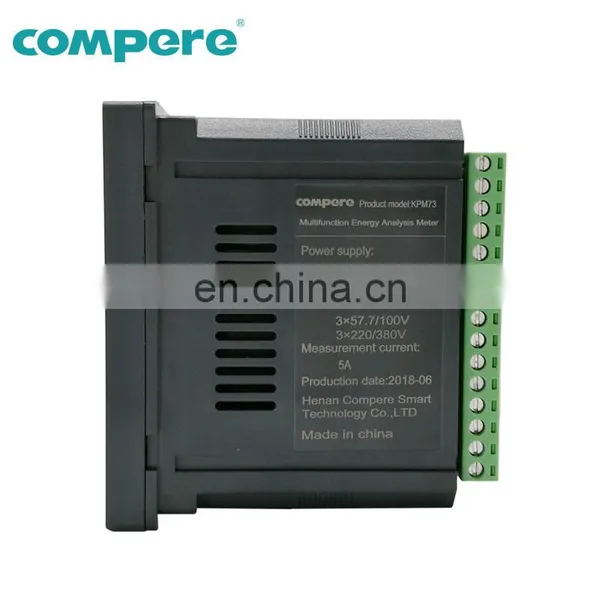

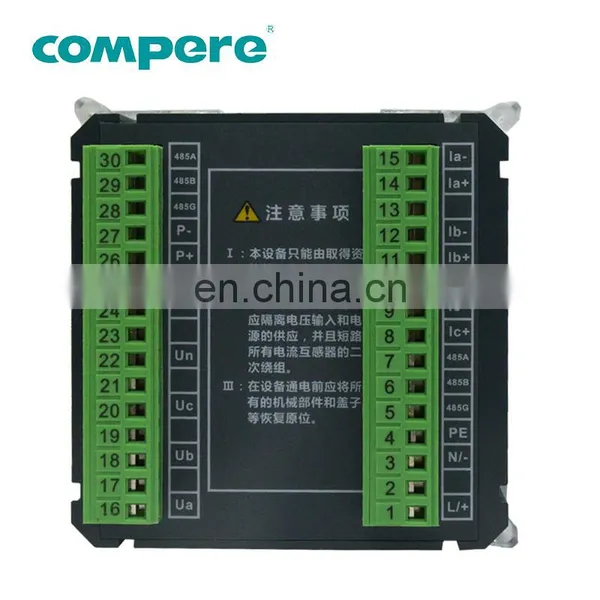

Multifunction industrial iot device bidirectional electric power meter with analog output
KPM73 series multifunction meter with accurate measurement of power parameters, bi-directional 4 quadrant energy measurement, statistics, recording functions, using advanced ARM processor and digital signal processing
technology. Set a comprehensive three-phase electrical parameters measurement / display, energy accumulation, power quality analysis, multi rates statistics, digital input / output and communications networks in one. Has a fine manufacturing process, good electrical insulation and electromagnetic compatibility, large-screen LCD liquid crystal display, etc.
FEATURES AT A GLANCE
1.Alternative analog pointer table.
2.Display and control of electrical parameters in mid-low voltage distribution System.
3.Collect energy consumption data that cost center analysis needs.
4.Green building or DC.
Details Images
Product Paramenters
Technical Parameters |
||||||||
KPM 53 smart digital commercial electric meter |
||||||||
Accuracy Class |
Voltage: 0.2; Current: 0.2; Frequency: 0.02 Hz; Power Factor: 0.5 |
|||||||
Active Power: 0.5S; Reactive Power: 2.0 |
||||||||
Active Energy: 0.5S; Reactive Energy: 2.0 |
||||||||
Input |
Rated Value |
Voltage: 57.7/100V, 220/380V,380/660V Current: 1A(0~1.2A), 5A (0~6A)
|
||||||
Overload |
Voltage: Sustained Overload: 1.2 times of the rated value |
|||||||
Momentary Overload: 2 times of the rated value, allows 1s |
||||||||
Current: Sustained Overload: 1.2 times of the rated value |
||||||||
Momentary Overload: 20 times of the rated value, allows 1s |
||||||||
Frequency |
45-60Hz |
|||||||
Functional Module |
Pulse Output |
1 |
||||||
Interface |
1*RS485; Modbus RTU protocol; Baud Rate: 1200-38400 bps |
|||||||
Power Supply |
Working Range |
AC: 85-265V; DC: 80-300V |
||||||
Consumption |
< 3VA |
|||||||
Working Condition |
Temperature |
Operating: -25°C~+70°C. Storage: -30°C~ +75°C |
||||||
Humidity |
5%~95% No condensation |
|||||||
Altitude |
<4000m |
|||||||
Dimensions: |
96×96×88mm |
|||||||
