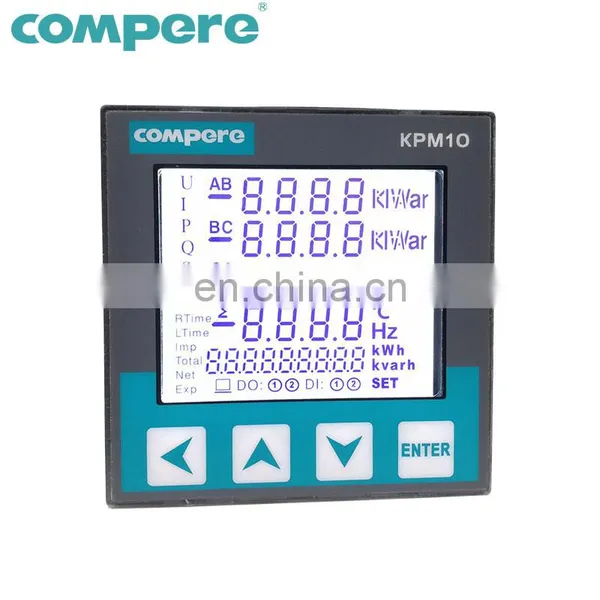

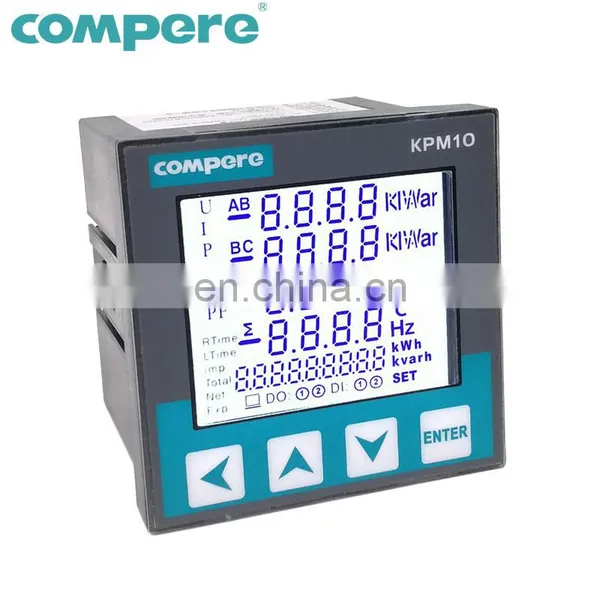

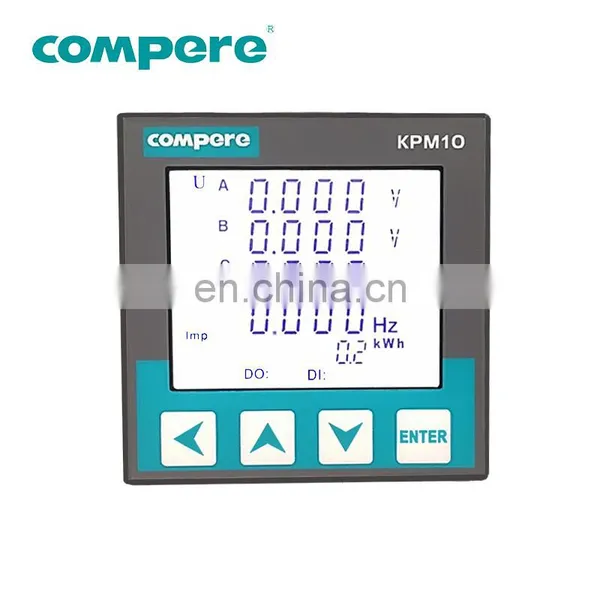

KPM10 3 phase rs485 modbus LCD digital panel multifunction electric meter
Application occasion
1.Measurement&Monitor energy parameter of distribution system.
2.Collect energy consumption data that cost center analysis needs.
3. Limit monitoring alarm(such as overvoltage, power consumption).
4.DC/Green building or DC.

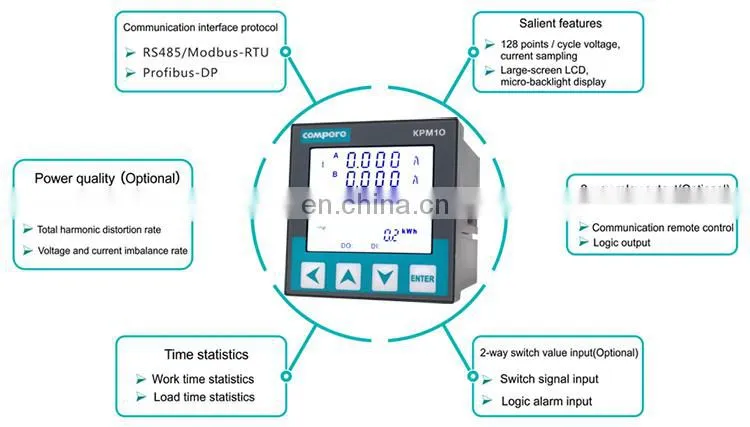

Function Features
1.Measuring three-phase AC voltage,current,active/reactive power,active/reactive energy,power factor and other 30 kinds of basic parameters.
2.0.5S level two-way four-quadrant power statistics.
3.Working hours,load time statistics.
4.Support up to 21 harmonic distortion rate calculation,total harmonic distortion rate calculation,voltage and current imbalance rate,the current K-factor calculation.
5.Standard 1–way RS485 communication interface,Modbus protocol.
6.Can be extended 2-way passive switch value input.
7.Can be extended 2-way relay outpu.t
8.128 points/cycle voltage,current sampling,high measurement accuracy.
9.LCD large-screen,micro-backlight display,in the light and wide viewing angle to obtain good visual effects.
Product Model: Click Here Send Inquiry Now
| Technical Parameters - KPM10 three phase digital energy meter | ||
| Accuracy Class | Voltage: 0.2; Current: 0.2; Frequency: 0.02; Power Factor: 0.5 | |
| Active Power: 0.5; Reactive Power: 2.0 | ||
| Active Energy: 0.5S; Reactive Energy: 2.0 | ||
| Input | Rated Value |
Voltage: 57.7/100V, 220/380V,380/660V Current: 1A, 5A (0~6A) |
| Overload | Voltage: Sustained Overload: 1.2 times of the rated value | |
| Momentary Overload: 2 times of the rated value, allows 1s | ||
| Current: Sustained Overload: 1.2 times of the rated value | ||
| Momentary Overload: 20 times of the rated value, allows 1s | ||
| Frequency | 45-60Hz | |
| Functional Module | Pulse Output | 1 |
| Digital input | 2 | |
| Relay output | 2 | |
| Interface | 1*RS485; Modbus RTU protocol; Baud Rate: 1200-19200 bps | |
| Power Supply | Working Range | AC: 85-265V; DC: 80-300V |
| Consumption | < 3VA | |
| Working Condition | Temperature | Operating: -25°C~+70°C. Storage: -30°C~ +75°C |
| Humidity | 5%~95% No condensation | |
| Altitude | <3000m | |

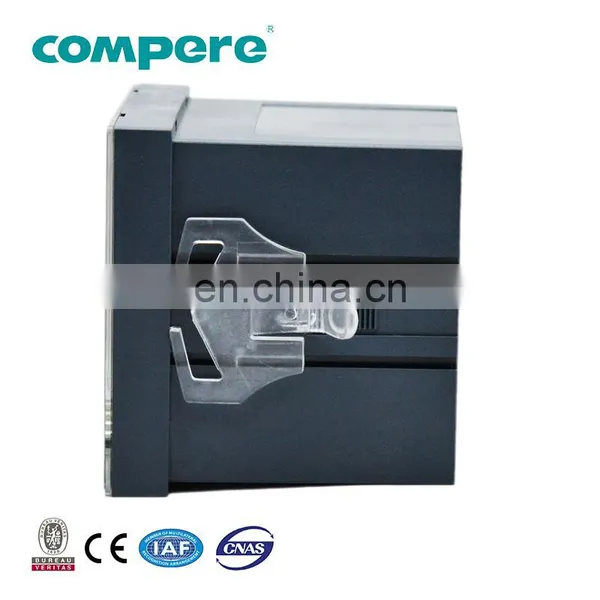

| Dimensions: | 72×72×68.5mm | |

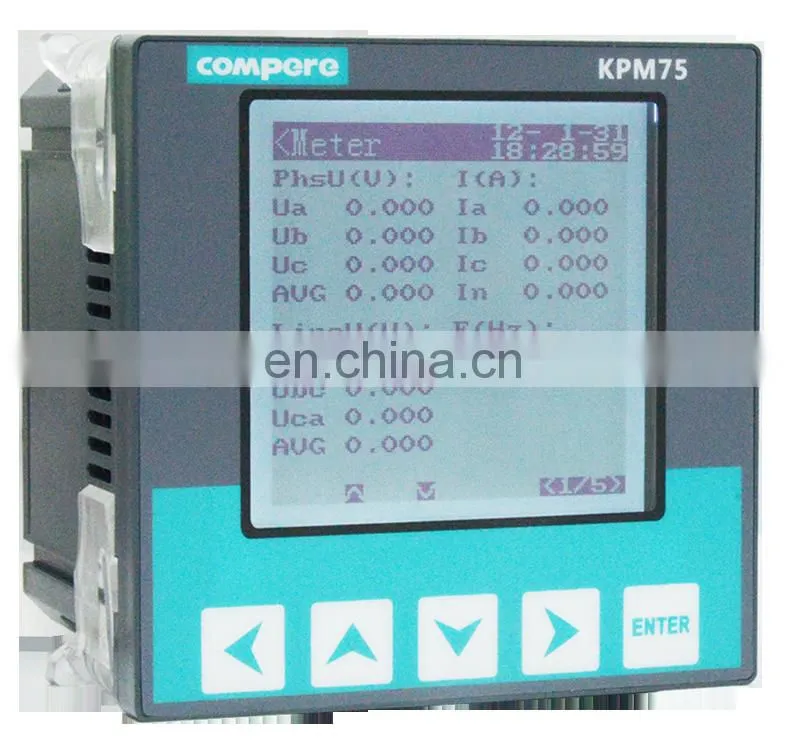

KPM75
57.7/100V LCD display RS485 port profibus-DP
power quality analyzer power meter

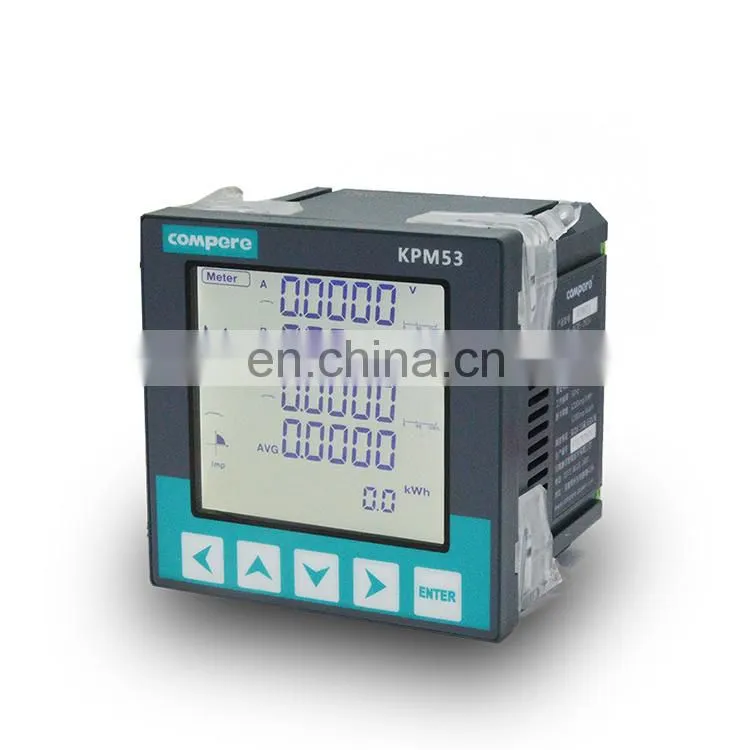

KPM53
Three phase profibus-DP ethernet digital smart power meter electricity meter price
