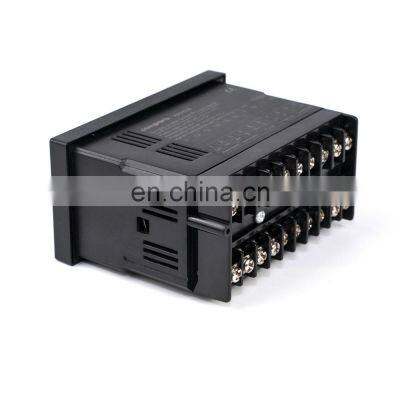

Single Phase Meter Current Meter with rs485/modbus Single Phase kwh Meter Wireless Smart Energy Meter

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

FEATURES AT A GLANCE

single phase digital voltmeter Application Occasion
1.Alternative analog pointer table.
2.Display and control of electrical parameters in mid-low voltage distribution System.
3.Collect energy consumption data that cost center analysis needs.
4.Green building or DC.

Digital voltmeter Function Features

>Measurement: Single - phase AC voltage, current, active power, reactive power, power factor, frequency, active energy, reactive
energy;
>Accuracy: voltage and current 0.2, 0.5 active energy, reactive energy 2;
>Statistics: working hours statistics, load time statistics;
>Special: 1-way active pulse output, built-in clock and maintenance-free battery, power-off data is saved, field programmable
input parameter ratio;
>Expansion: 2 digital inputs, 2 relay outputs, 1 analog output, 1 temperature input, Profibus-DP interface;
>Display: FSTN LCD display, high quality, wide viewing angle, high visibility;
>Communication: Standard 1 RS485 communication, MODBUS-RTU protocol;
>Uses: Suitable for intelligent buildings, hospital energy management system, school intelligent power distribution system.

Details Images

Product Paramenters

Technical Parameters - KPM51 digital voltmeter
Accuracy Class			Voltage: 0.2; Current: 0.2; Frequency: 0.02 Hz; Power Factor: 0.5
				Active Power: 0.5; Reactive Power: 2.0
				Active Energy: 0.5; Reactive Energy: 2.0
Input	Rated Value	Voltage: 220V Current: 1A(0~1.2A), 5A (0~6A)
Input		Frequency	45-60Hz
Functional Module	Pulse Output	1
Functional Module		Interface	1*RS485; Modbus RTU protocol; Baud Rate: 1200-19200 bps
Power Supply	Working Range	AC: 85-265V; DC: 80-300V
Power Supply		Consumption	< 3VA
Working Condition	Temperature	Operating: -25°C~+70°C. Storage: -30°C~ +75°C
		Humidity	5%~95% No condensation
		Altitude	<4000m
Dimensions			96×48×72mm
