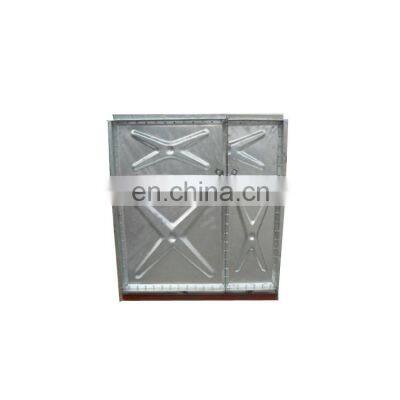

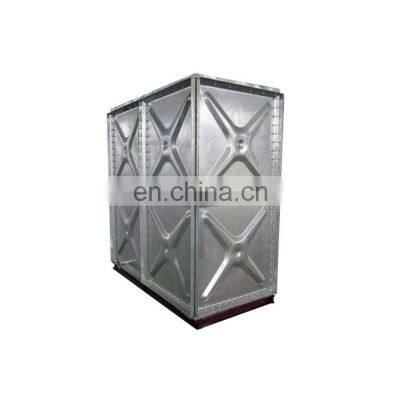

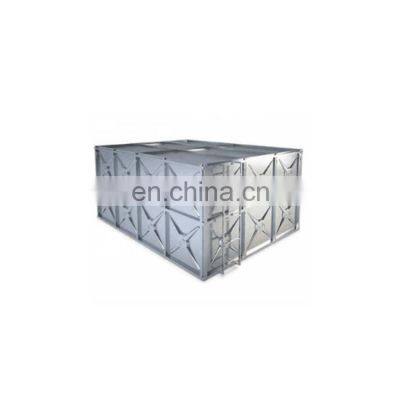

Steel Tank Water Galvanized Livestock Water Tank Supplier Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Galvanized Steel Water Storage Tank SupplierNegotiableMOQ: 1 -
China Stock Tank Galvanized Steel Water Storage TankNegotiableMOQ: 1
-
Low Price Square Galvanized Water Storage Tank 50000 LitersNegotiableMOQ: 1
-
Wholesale Large Galvanized Steel Water Tank 50000 Litters SquareNegotiableMOQ: 1
-
Galvanized Livestock Steel Poultry Water Storage TanksNegotiableMOQ: 1
GRP FRP Galvanzied water tank
Product Information
1. Material
The sectional panel tank shall consist of 4' x 4' or 1 meter x 1 meter,1 meter x 0.5 meter panel manufactured from 1.5mm to 4.0mm thickness according to requirement.
2. Flanges
The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
3. Reinforcement Method
All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is
supported by top panel support, which shall be made of stainless steel grade 304 or 316 material according to requirement.
4. Accessories
1. Bolt. nut & washers stainless steel 304 material.
2. Sealing material Non-toxic P.V.C foam tape shall be used in between the joints.
3. Covers The tank cover shall be constructed from 1.2mm to 3.0mm of thickness stainless steel 304 material according to the requirement.
4. Ladders and Level Indicator
Internal & external ladder shall be made of stainless steel grade 304 material.
The sectional panel tank shall consist of 4' x 4' or 1 meter x 1 meter,1 meter x 0.5 meter panel manufactured from 1.5mm to 4.0mm thickness according to requirement.
2. Flanges
The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
3. Reinforcement Method
All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is
supported by top panel support, which shall be made of stainless steel grade 304 or 316 material according to requirement.
4. Accessories
1. Bolt. nut & washers stainless steel 304 material.
2. Sealing material Non-toxic P.V.C foam tape shall be used in between the joints.
3. Covers The tank cover shall be constructed from 1.2mm to 3.0mm of thickness stainless steel 304 material according to the requirement.
4. Ladders and Level Indicator
Internal & external ladder shall be made of stainless steel grade 304 material.
Standard Thickness for 1.22m x 1.22m Tank Panel
Type |
1.22m(h) |
2.44m(h) |
3.66m(h) |
4.88m(h) |
4th side pannels |
5mm |
|||
3rd side panels |
5mm |
|||
2nd side panels |
5mm |
|||
1st side panels |
5mm |
5mm |
5mm |
5mm |
Bottom panels |
5mm |
5mm |
5mm |
5mm |
Standard Thickness for 1m x 1m Tank Panel
Type |
1.0m(H) |
2.0m(H) |
3.0m(H) |
4.0m(H) |
5.0m(H) |
5th side panels |
5mm |
||||
4th side panels |
5mm |
5mm |
|||
3rd side panels |
5mm |
5mm |
5mm |
||
2nd side panels |
5mm |
5mm |
5mm |
5mm |
|
1st side panels |
5mm |
5mm |
5mm |
5mm |
5mm |
Bottom panels |
5mm |
5mm |
5mm |
5mm |
5mm |
Production Process
