Better Price Sectional GRP Panels Modular Water Tank For Storing Potable Water
- 1000 per Month
- T/T Credit Card
- 1m3-1000m3 Capacity Bolted Inatallation FRP/GRP Sectional Water Tank
- Boted Panel Type Galvanised Water Tank for Firefighting Water Storage
- Welding Type Stainless Steel Elevated WaterTank Price Water Storage Tank 50000Liter With ISO
- Customized Capacity Fibreglass Reinforced Plastic Material SMC Molded Household HDPE Septic Tank
- ISO Certificated 1m3 Capacity Anti Corrosion FRP Fiberglass Septic Tank
- China Made Hot Sales High Quality Cheap PP or Plastic Septic Tank
Product Description

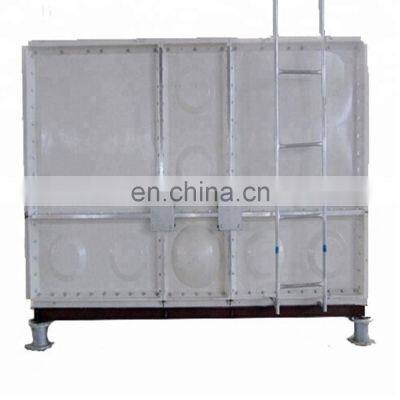

Modular Panel Water Tank
1. FRP Combined Water tank is a new type water tank which is widely used in the world. It is assembled by the high-quality FRP panels.
2. Its characteristics:
(1). It adapts the food-grade resin, so it can guarantee
for the water quality and prevent the pollution.
(2). It has the high strength, light weight, corrosion
resistant, beautiful appearance, long working life,
convenient to maintain etc.
3.The FRP combined water tank is widely used in industrial and mining enterprises, enterprises and institutions, residence, hotel and other buildings. It can be used as drinking water, fire water storage facilities etc.
The FRP water tank panels
The FRP water tank panel is made from food-grade resin, via high temperature and powerful mechanical pressing.
(1) In manufacturing process, it adopts to manufacture method that mechanical pressing so it increase the
anti-seismic and shock resistance strength;
(2) In the shape design, there is sag arc in the middle of water tank plate, it improve the bearing ability of water tank. In addition, it has the 45° and 90° flange so it don’t need the corner fittings.
(3) The size of the FRP water tank panel: 1000*1000mm; 1000*500mm, 500*500mm,
Thickness of the FRP water tank panel: 5mm,8mm,10mm,12mm,14mm,16mm,18mm and 20mm.( 5mm thickness plate is used for the cover plate).
(4) The water tank can be assembled to be any size with the different size FRP panels from 1-1500CBM
The properties of FRP panel:
Item |
Performance indicators |
Item |
Performance indicators |
tensile strength |
>1050kgf/cm2 |
compressive strength Mpa |
>3010 kgf/cm2 |
Young’s Modulus |
>1.4X105 kgf/ cm2 |
shear strength |
>96 kg/cm2 |
flexural modulus |
impact strength |
>52.5kgf/cm2 |
|
Pap strength |
More than 60 |
breakdown voltage Kv/mm |
10-18 |
Water absorption |
less than 0.2% |
Coefficient of overheat transmission |
5.0kcal/m2.hr.oc |
Glassfiber content |
more than 30% |
Light transmittance |
0% |
Specific gravity |
1.8 |
Cavity |
<2.0% |
We will offer the installation video with detailed drawing for guide and can also deliver our engineer to you for installation if need. During the 1 year warranty, We can offer the free maintenance if any part is broken except for human factor.
Shandong Handun Environmental Technology Co., Ltd is a leading international business company in China, mainly designs and manufacturers Centrifugal fan, Axial flow fan, Boiler induced draft fan and other Ventilation equipment and parts. Also customize fans water tank and cooling tower as requirements. Which are applied to industrial systems such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.
Main products : Centrifugal fan, Axial flow fan, Boiler induced draft blower and Industrial fans and parts, water tank and cooling tower
1. Are you a trading company or factory?
We're trading company with factory. We manufacture products ourselves and we source from other collaborative factories too which guarantees a competitive price and product variety.
2. How do I know your quality.
High solution detailed photos and a sample order will be able to verify our quality.
3. Can I get a door to door service? or can I get them delivered to my door?
Yes, we offer delivery to your door service, which makes your work easy.
4. As we know that FRP water tank are delivered in unassembled type, Can we install them ?
Yes, We will offer the installation video in details with drawing for guide. It is easy to assemble them. Besides it really save a lot of shipping charge then low down the cost
5. Can you offer me the capacity as we required?
Yes, Our water tank is assembled by panels size: 1m*1m;0.5m*0.5m; 1m*0.5m.
It is flexible to assembled as required capacity. Ranging from 1m3 to 2000m3 .
Application |
.All kinds of industrial, civil construction water supply, hvac, fire protection system .Food, beverage, wine, water treatment industry .Medicine, petroleum, chemical industry |
Instructions |
.Only hold water for life or fire water. Not hold hydrochloric acid, sulfuric acid, acid or alkaline liquid. .The water tank regular cleaning and disinfection 1-2 times a year |
