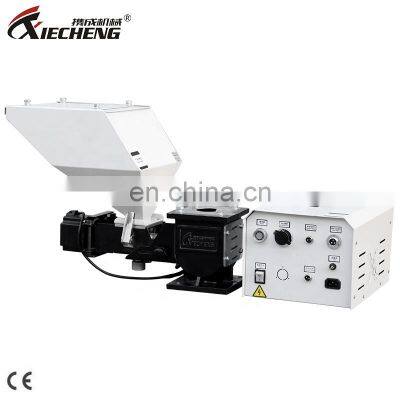

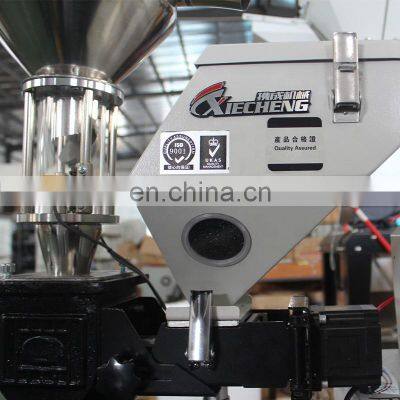

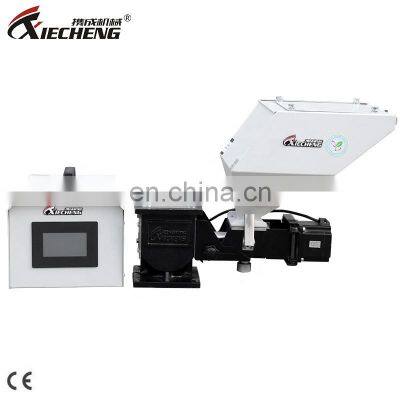

Xiecheng 14mm Single Color Masterbatch Volumetric Doser Machine

Xiecheng 14mm Single Color Masterbatch Volumetric Doser Machine photo-1
Xiecheng 14mm Single Color Masterbatch Volumetric Doser Machine photo-2
Xiecheng 14mm Single Color Masterbatch Volumetric Doser Machine photo-3
Xiecheng 14mm Single Color Masterbatch Volumetric Doser Machine photo-4
Xiecheng 14mm Single Color Masterbatch Volumetric Doser Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1991
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

Volumetric Dosers

XCM series volumetric doser can automatically mix 1 main material and 1-3 masterbatches or additives of plastic raw materials in proportion. It is suitable for injection molding, extrusion or blow molding production. This series of products adopts hybrid stepping motor and special PLC touch controller, which can accurately measure the addition proportion of masterbatch and additives. The doser can be connected with all kinds of molding machine signals, and then run synchronously to ensure the consistency of molding product performance.
Product Specifications
Model
Monochrome Machine
XCM-12
XCM-14
XCM-16
Motor Power (Kw)
0.3
0.3
0.3
Rotary Speed (r.p.m.)
1.8~300
1.8~300
1.8~300
Mixer Power (Kw)
0.09
0.09
0.09
Screw Dia. (mm)
12
14
16
Output Capacity (kg/hr)
0.05~20
0.1~40
0.1~40
Sorage Capacity (L)
13
13
13
Main Raw Material Hopper (L)
Optional
Optional
Optional
Mixer Power (Kw)
Optional
Optional
Optional
Floor Stands
Optional
Optional
Optional
Dimensions
H(mm)
430
430
430
W(mm)
560
560
560
D(mm)
300
300
300
Net Weight (kg)
25
25
25
If you want more sizes, please contact us for details
Product Actual Shooting
Product Details

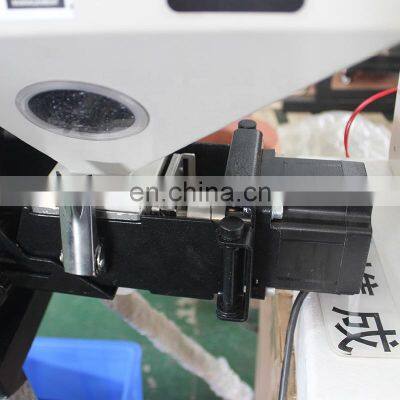

 01  Motor
▪ Using the high accuracy hybrid stepping motor, measurement accuracy and wide output range; ▪ Motor drive directly, without gearbox, long service life, maintenance-free.



 02  Screw
SUS304 stainless steel screw, more durable.


 03  PLC Controller
▪ Adopted PLC touch screen controller, the control accuracy is higher and more stable. ▪ Capable of saving 50 recipes of formula and fast booting.

04 Detachable Modules

Unit is comprised of standard modules for ease of cleaning, disassembly and interchangeability; The roof-shaped quick-change(the dosing section can be removed without granulate leaking form the neckpiece).
