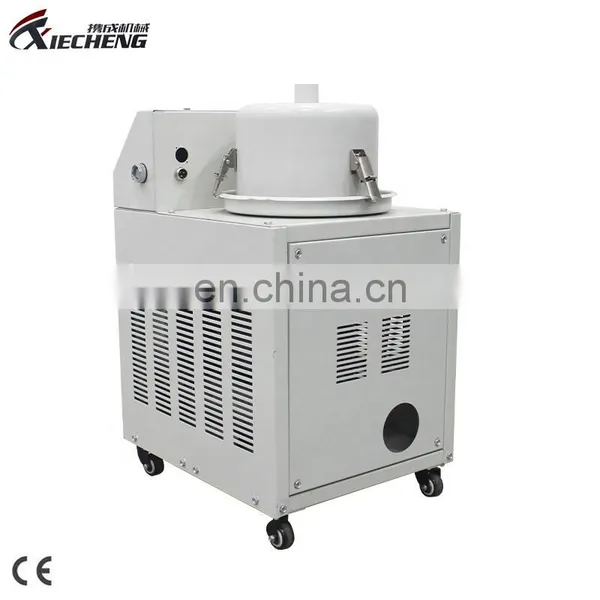

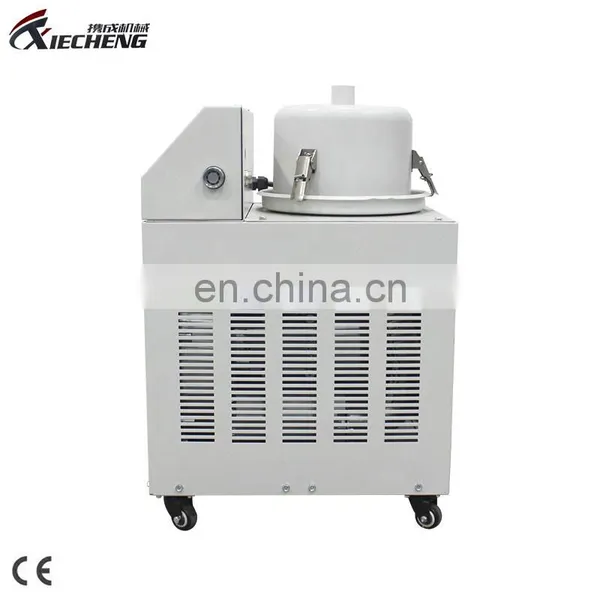

Plastic Material Vacuum Detachable Auto Loader Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1991
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vacuum Plastic Pellets Loader/ Feeder HopperNegotiableMOQ: 1 -
Plastic Waste Scrap Grinder Plastic Recycling Shredder Crusher MachineNegotiableMOQ: 1
-
Cheap Wholesale Plastic Pelletizer Pet Bottle Grinding Machine Price Plastic CrusherNegotiableMOQ: 1
-
Linear Vibration Sieve MachineNegotiableMOQ: 1
-
OEM Industrial Equipment Water Chiller Central Air Cooled ChillerNegotiableMOQ: 1
Product Description
Separate-Vacuum Hopper Loader
Main machine of separate vacuum hopper loader separated from the hopper, easy and safe to operate. 800G, 800G2 are with reverse running and automatically dust removing function.
Product Specifications
Model |
XC-X800G |
XC-XF800G2 |
||
Motor |
Model |
Induction |
Induction |
|
Specification |
1.1kw/1.5hp 3φ |
1.5kw/2hp 3φ |
||
Conveying capacity (kg/hr) |
450 |
500 |
||
Loading Distance (m) |
4 |
5 |
||
Static Wind Pressure (mm/H2O) |
1800 |
2400 |
||
Storage Tank Capacity (L) |
7.5 |
7.5 |
||
Conveying Tube Inner Diameter (mm) |
φ38 |
φ38 |
||
The Attached Hoses (mm) |
φ38mm×8m 1pcs |
φ38mm×10m 1pcs |
||
Dimensions L x W x H(cm) |
45x38x67 |
45x38x67 |
||
Weight (kg) |
47 |
50 |
||
If you want more sizes, please contact us for details
Product Details

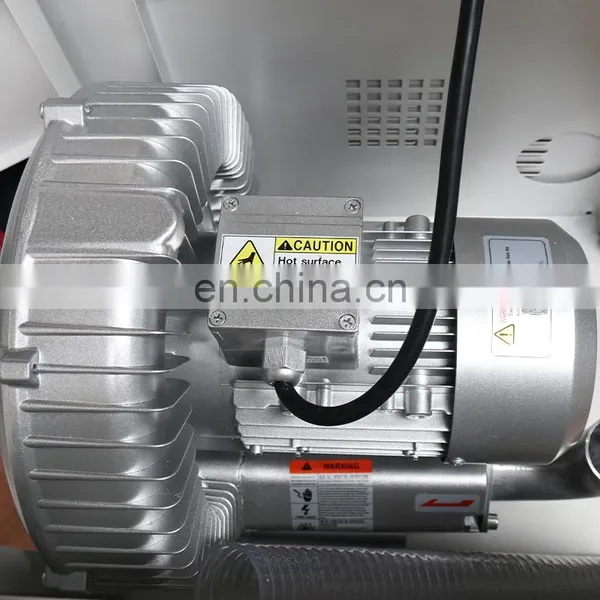

01 Motor
▪ 800G/800G2 with Induction type high pressure motor ,with low noise and long service time;
▪ 800G, 800G2 are with reverse running and automatically dust removing function.
02 Filter
Independent filter for easy cleaning.
Stainless steel hopper, to ensure that the raw materials are not polluted during transportation.

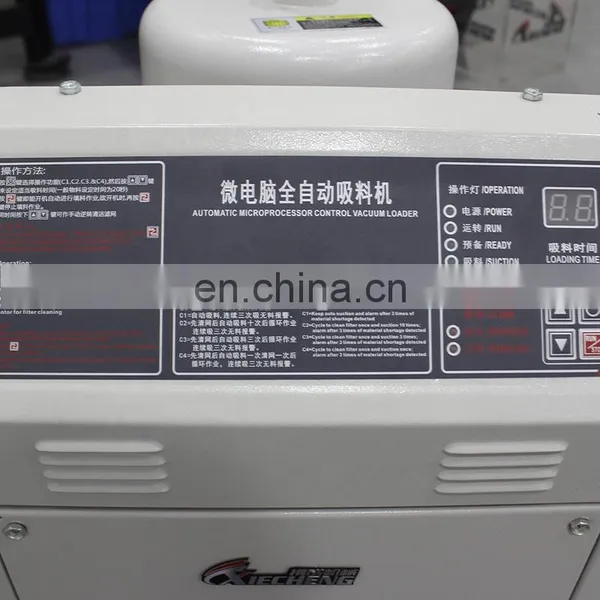

Microcomputer operation control program, with overload, shortage warning function.
Application Range
Best Selling
About Us
Company Profile
In 2009, founded by Mr. Fuzhibo with its head quarter in Jiangmen city which known as a famous hometown of many overseas Chinese, Jiangmen Xiecheng Machinery Co., Ltd. has been devoted herself to be an integrated enterprise of R&D, manufacturing and marketing businesses for High-end Industrial Refrigeration Equipment, Rubber and Plastic Moulding Auxiliary Automation Equipment, and also Intelligent Integrated System Solutions.
Authenticated by IS09001, XIECHENG also successfully established the “6+1+C” full dimensional product service system with her own supply chain advantages of combining the six series of products, as Industrial Refrigeration, Mould Temp. Controlling, Material Conveying, Crushing & Recycling, Dehumidifying & Drying, and also Mixing, into central intelligent system solutions as Material Feeding, Air Supply, Water Supply and Power Supply, to fast fitting customers’ specific demands.
