Tube Settler ( Lamella clarfiers)

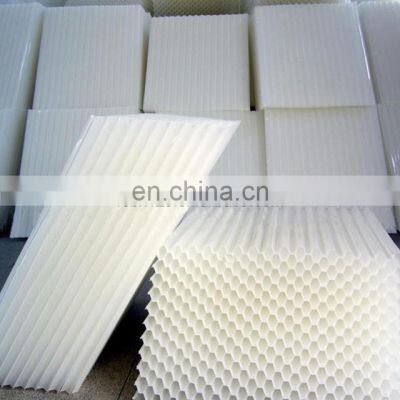

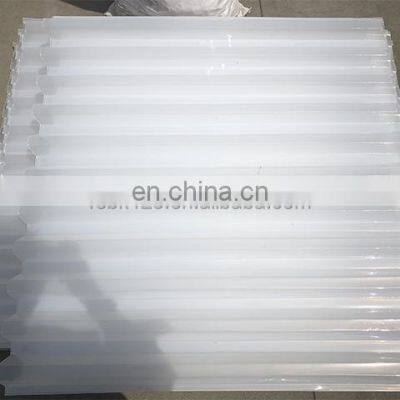

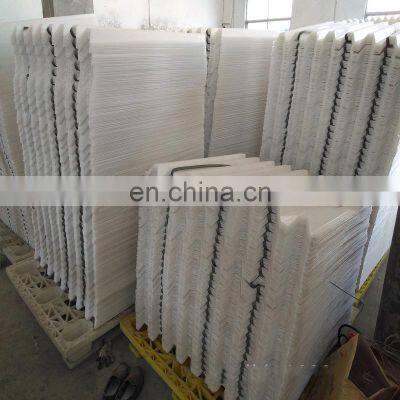

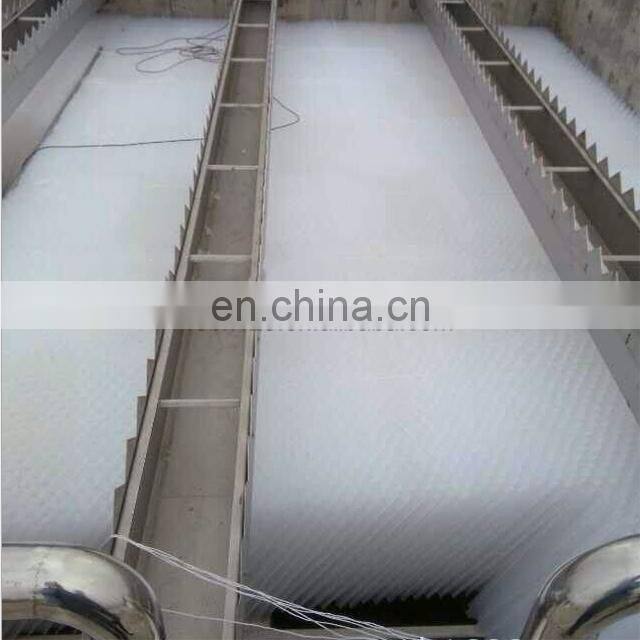

Descriptions:Inclined Honeycomb Tube Settlers meida for water treatment
Tube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment.

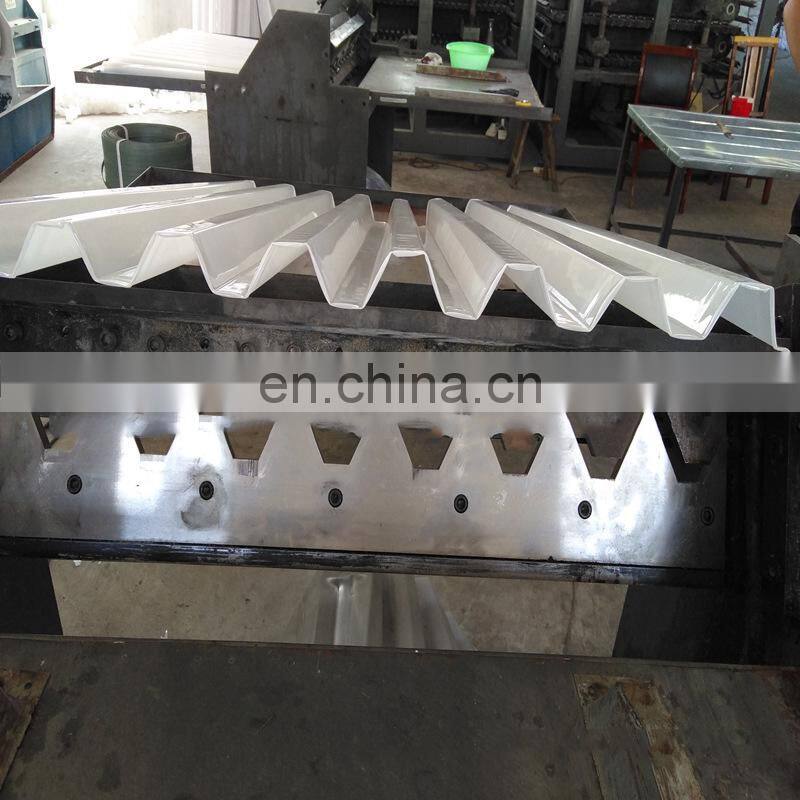

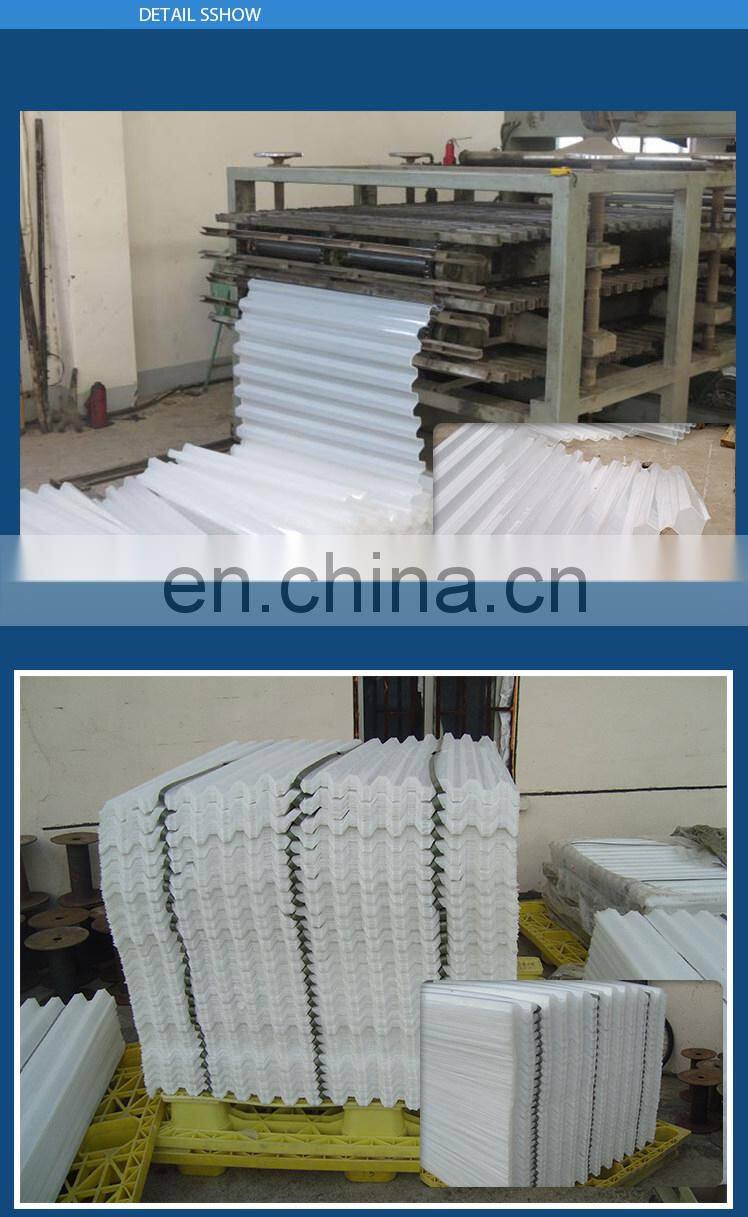

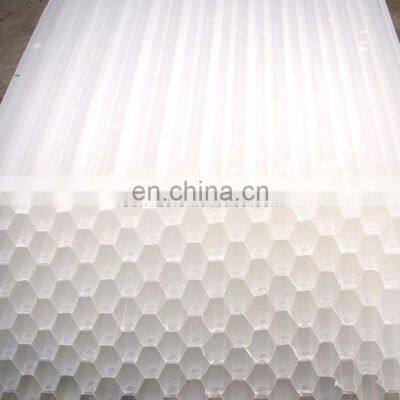

tube settlers are single plastic profiles combined to tubes. This design multiplies the sedimentation area up to 15 times per square meter surface area and helps to improve sedimentation in water and waste water treatment plants.
Different executions support a better process and cost reduction of the plant.
Advantages of tube settlers (lamella clarifiers)
- Process efficiency
From multiplication of the sedimentation area, chevron equidistant channel shape and adaptation of the settling area spacing and slope - Flexible dimensions
It can be adapted to all kinds of shapes, inclinations, round settlers and allows cut outs. - Easy handling

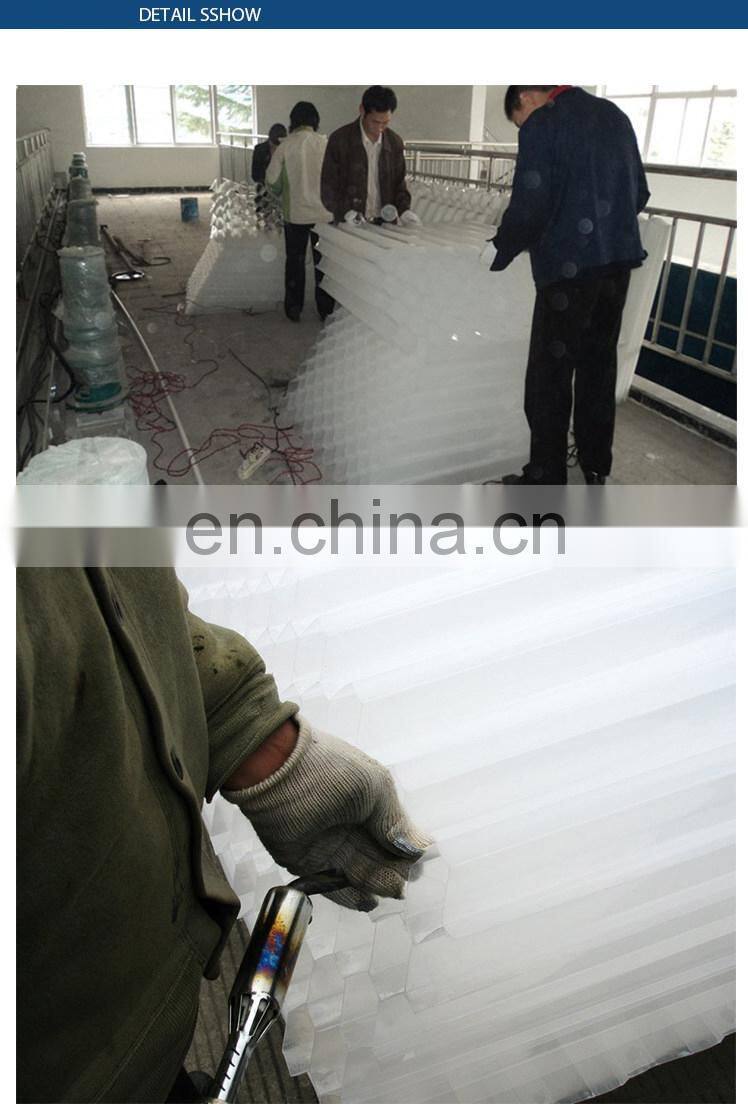

Simple on site assembly method grants low cost, safe delivery to any place in the world. - Sophisticated support system
With stainless steel and specially shaped glass fibre reinforced plastic beams minimizing turbulence and sludge deposit. - Strong and high quality material
- We provides high stability of the modules for easy maintenance – PP material approved for high standards of potable water applications
Applications:

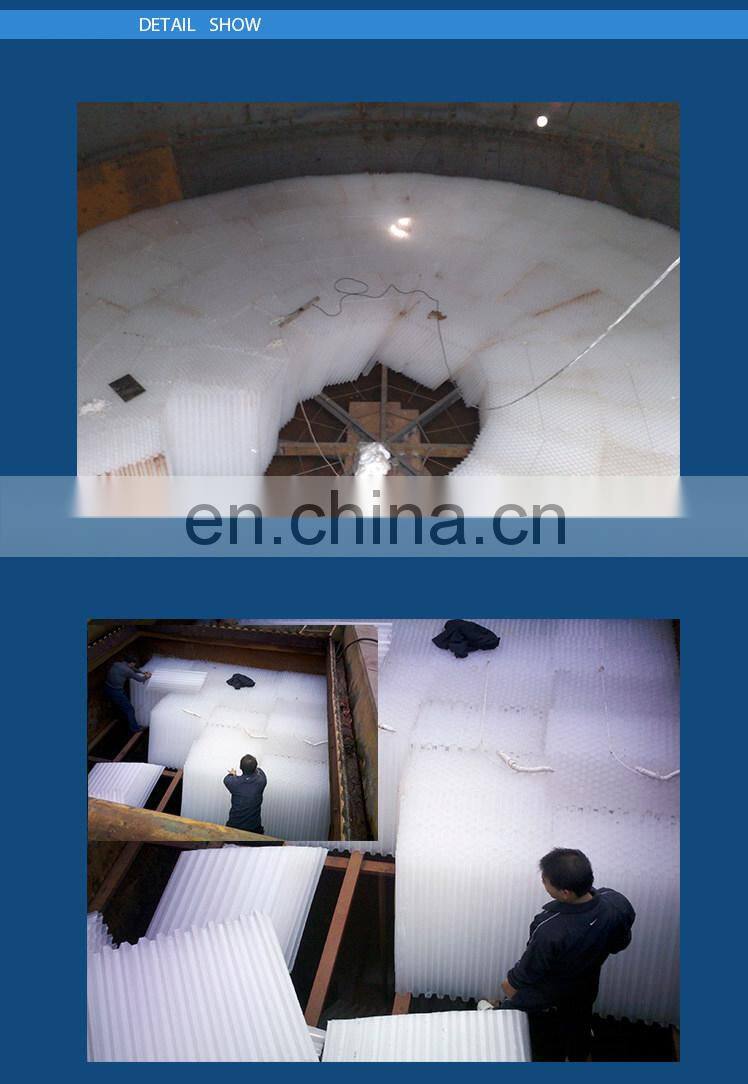

Design and build new clarifiers and settling tanks equipped with tube settlers
- Retrofit existing clarifiers and sedimentation basins with tube modules to increase settling capacity and increase throughput
- Provide replacement tube modules for existing installations
Our Environmental designs and builds liquid cleaning and recycling equipment including:
- Circular Clarifiers
- Parallel Plate Settlers
- Tube Settlers
- Horizontal and Vertical Clarifiers
- Air Strippers
- API Separators
- Oil Recovery Units
- Complete Engineered Systems
Technical Data:
Type |
The key technical indexes |
||||||||
Inscribed circles diameter |
Exteriors size of Single Unit |
Angle of bevel |
Thickness of Pipe |
Weight /Single Unit
Kg |
|||||
|
Dimen -sion |
Devia -tion |
Dimen -sion |
Devia -tion |
Dimen -sion |
Devia -tion |
Dimen -sion |
Devia -tion |
||
|
PP Oblique Pipe |
25 |
±1.5 |
1000 *500* 1000 |
±10 |
60 |
±2 |
0.4-0.5 |
±0.05 |
19-30 |
30 |
±1.5 |
0.45-0.55 |
±0.05 |
18-27 |
|||||
35 |
±2.0 |
0.5-0.6 |
±0.05 |
18-25 |
|||||
50 |
±2.5 |
0.6-0.8 |
±0.08 |
14-24 |
|||||
