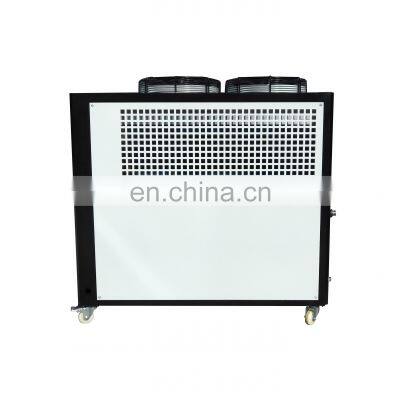

Zillion Eco-Friendly Industrial Air Cooled Water Chiller For Water Cooling 15HP
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2004
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Zillion Scroll Air Cooled Water Glycol/ Beverage Chiller Small Chiller 1HPNegotiableMOQ: 1 -
Zillion Small Water/Air Cooled Chiller for Water Cooling 3HPNegotiableMOQ: 1
-
Zillion Industrial Screw Air Cooled Water Cooled Water Chiller 5HPNegotiableMOQ: 1
-
Zillion Industrial Scroll or Screw Type Air Cooled Water Chiller 8HPNegotiableMOQ: 1
-
Zillion Chemical Industry Air Cooled Water Chiller With Screw Compressor 10HPNegotiableMOQ: 1
Product Paramenters
Zillion Industry Air-Cooled Chiller Specifiactions |
||||||||
Model |
Cooling capacity(KW) |
Fan Volume(m³/h) |
Chilled Water Flow(L/min) |
Tank Volume(L) |
||||
ZL-FL1 |
3 |
2350 |
20 |
36 |
||||
ZL-FL2 |
7.2 |
2350 |
40 |
36 |
||||
ZL-FL3 |
9 |
3216 |
60 |
46 |
||||
ZL-FL5 |
15 |
6570 |
100 |
65 |
||||
ZL-FL10 |
30 |
9800 |
200 |
156 |
||||
ZL-FL15 |
45 |
17000 |
360 |
235 |
||||
ZL-FL20 |
60 |
26640 |
540 |
313 |
||||
ZL-FL30 |
90 |
34000 |
600 |
365 |
||||
ZL-FL40 |
120 |
40000 |
900 |
443 |
||||
ZL-FL50 |
150 |
49000 |
1000 |
443 |
||||
NOTICE |
1. The cooling capacity is based on: chilled water inlet and outlet temperature 12°C/7°C, cooling inlet and outlet water temperature 30°C/35°C |
|||||||
2. Working range: chilled water temperature range: 5°C to 35°C; chilled water inlet and outlet temperature difference: 3°C to 8°C. Use in an environment where the condensing temperature is not higher than 35℃ |
||||||||
3. Unit conversion: 1kw cooling capacity=860kcal/hr 1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1 Metric horsepower (HP)=0.735KW |
||||||||
The company product design specifications,function,perfirmance parameters and shape may change,without prior notice, |
||||||||
Products Description
Zillion Air-Cooled Water Chiller Unique Feature
1, Single,double or four compressors combination unit available,high efficiency.
2, Auto alarm for overload and accidental failure.
3, Using electrical control security design to ensure the safety of your personnels.
4, The unit adopts high-strength integral welded frame with compact structure and small floor area.
5, Refrigerant can be R22, R407C, R404A, R134a, R410A, etc.
6, The protection function of the unit is complete, and it is equipped with reverse phase loss, high and low pressure, thermal
overload, low liquid level, antifreeze protection, etc. as standard.
2, Auto alarm for overload and accidental failure.
3, Using electrical control security design to ensure the safety of your personnels.
4, The unit adopts high-strength integral welded frame with compact structure and small floor area.
5, Refrigerant can be R22, R407C, R404A, R134a, R410A, etc.
6, The protection function of the unit is complete, and it is equipped with reverse phase loss, high and low pressure, thermal
overload, low liquid level, antifreeze protection, etc. as standard.
Water Cooled Chiller
The difference between water-cooled chillers and
air-cooled chillers lies in the way the unit itself needs to dissipate heat. Water-cooled chillers use external cooling towers to dissipate heat, while air-cooled chillers use finned condensers to dissipate heat.
Air Cooled Chiller
The air-cooled chiller is an independent integrated circulating refrigeration unit. It only needs to be connected to the power supply and the water pipe to operate, and is easy to move. However, its selection requires high environmental requirements. First, consider the heat dissipation and ventilation of the unit.
Product Disdplay
Details Images
FAN
Pure Copper Tube
Pressure Gauge
Microcomputer LCD Controller
①Display the cold water outlet and set temperature;
②Easy to operate, water temperature can be precisely controlled
Famous Band Compressors
Using famous brand DAIKIN / PANASONIC compressor
Lower noise
Less vibration,
High efficient and energy saving.
Chint Electric
①Selected German Bayer materials
②Reliable and durable quality of switch sockets
③Leading technology and high-end design effectively protect electrical appliances
V Type Finned condensers
①High efficient fin type condenser and silent refrigeration fan.
②no need to equip cooling water, easy to install.
③Corrosion resistance, oxidation resistance, easy to clean
Application
Company Profile
Dongguan Zillion Refrigeration MachineryCo., Ltd.
Was established in 2009 .It is a professional manufacturer of industrial chillers, plastic crusher, mold temperature controllers, cooling towers, mixers, and dryers.
Have a complete and scientific quality management system. The integrity, strength and product quality of Dongguan Zillion Refrigeration MachineryCo., Ltd. have been recognized by the industry.
