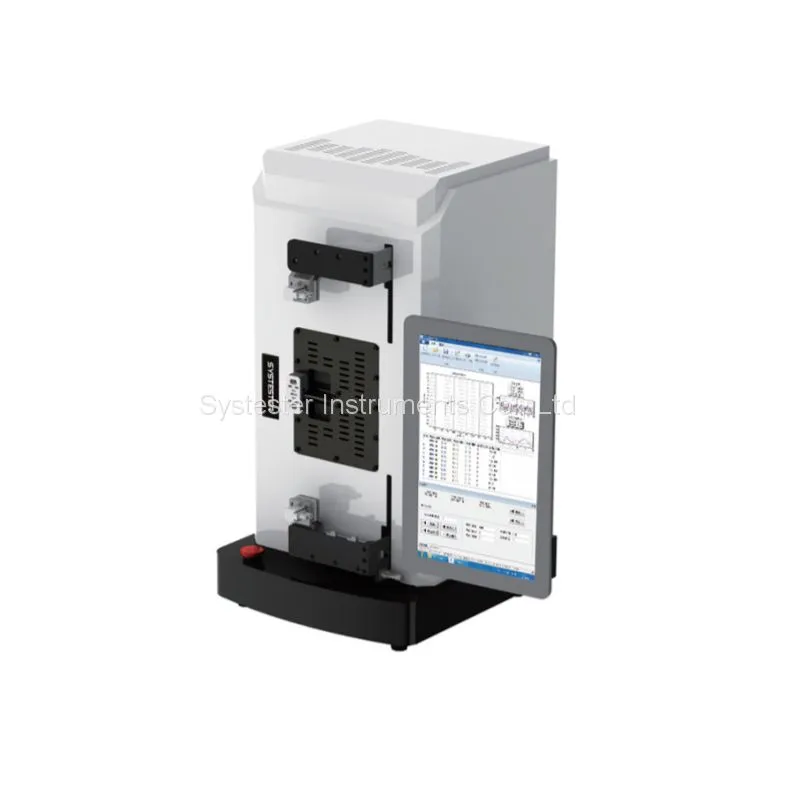

Hot Tack Tester ASTM F1924 For Plastic Membrane/ Flexible Packages
Product Detail
Application:
The tester is used for the measurement of the strength of heat seals formed between thermoplastic surfaces of flexible barrier materials and webs, immediately after a seal has been made and before it cools to ambient temperature.
Hot Tack Tester ASTM F1924 For Plastic Membrane/ Flexible Packages
Features:
1:Embedded system control, remote service and updating
2:Touch screen operation, easy to operate
3:TFT LCD display, UI flattening design
4:Dual heat jaws, temperature controlled independently
5:Hot tack curve and other graphic outputs.
6:Pressure easy to adjust, heat temperature and time touch screen input.
7:Sample pneumatic clamping
8: Over temperature protection, over pressure protection
9: RS232 communication port.
10: DSM system is optional(Laboratory Management Information System), easy to manage and share test data.
Hot Tack Tester ASTM F1924 For Plastic Membrane/ Flexible Packages
Technical Indexes:
Sealing Temperature |
Room Temperature~300C |
| Resolution |
±0.1C |
|
Accuracy |
±0.2 |
Sealing Pressure |
0.1N/mm2~4.0N/mm |
|
Dwell Time |
0.025s~ 999.9s |
|
Load Range |
0~100N(Standard) 0~50N(Optional) 0~250N(Optional) 0~500N(Optional) |
| Humidity range |
Max0.01% F |
Heat Jaw Surface |
10mm × 40 mm (customized) |
|
Peeling Speed |
21mm/s-750mm/s |
| Sample size |
Length ≥300mm, Width ＜40mm, Thickness ＜1mm; |
