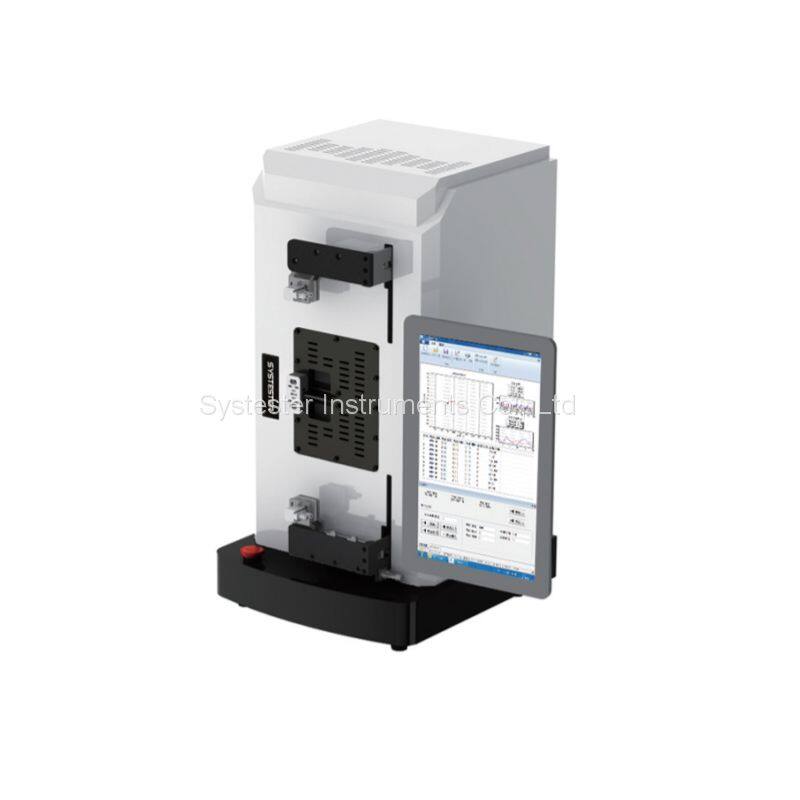

Hot Tack Testing Machine Of Flexible Package Thermal Sealing Strength Test
Product Detail
Application:
The tester is used for the measurement of the strength of heat seals formed between thermoplastic surfaces of flexible barrier materials and webs, immediately after a seal has been made and before it cools to ambient temperature.
Hot Tack Testing Machine Of Flexible Package Thermal Sealing Strength Test
Features:
1:Embedded system control, remote service and updating
2:Touch screen operation, easy to operate
3:TFT LCD display, UI flattening design
4:Dual heat jaws, temperature controlled independently
5:Hot tack curve and other graphic outputs.
6:Pressure easy to adjust, heat temperature and time touch screen input.
7:Sample pneumatic clamping
8: Over temperature protection, over pressure protection
9: RS232 communication port.
10: DSM system is optional(Laboratory Management Information System), easy to manage and share test data.
Hot Tack Testing Machine Of Flexible Package Thermal Sealing Strength Test
Technical Indexes:
Sealing Temperature | Room Temperature~300C |
| Resolution | ±0.1C |
Accuracy | ±0.2 |
Sealing Pressure | 0.1N/mm2~4.0N/mm |
Dwell Time | 0.025s~ 999.9s |
Load Range | 0~100N(Standard) 0~50N(Optional) 0~250N(Optional) 0~500N(Optional) |
| Humidity range | Max0.01% F |
Heat Jaw Surface | 10mm × 40 mm (customized) |
Peeling Speed | 21mm/s-750mm/s |
| Sample size | Length ≥300mm, Width ＜40mm, Thickness ＜1mm; |
Hot Tack Testing Machine Of Flexible Package Thermal Sealing Strength Test
