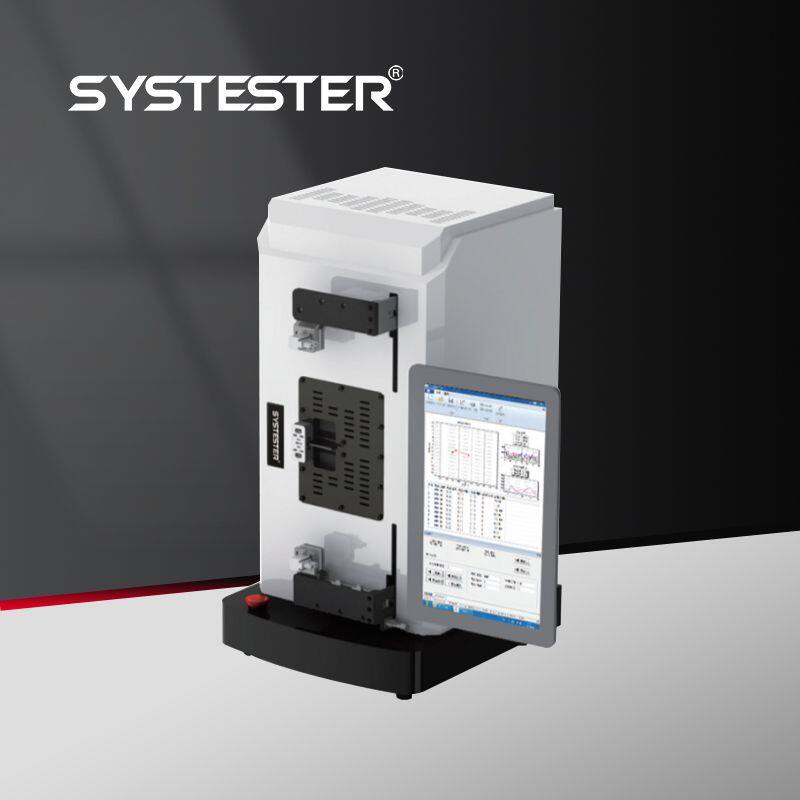

Hot Tack Tester For Plastic Film Heat Seal Strength Test
Product Detail
Application:
The tester is used for the measurement of the strength of heat seals formed between thermoplastic surfaces of flexible barrier materials and webs, immediately after a seal has been made and before it cools to ambient temperature.
Hot Tack Tester For Plastic Film Heat Seal Strength Test
Features:
1:Embedded system control, remote service and updating
2:Touch screen operation, easy to operate
3:TFT LCD display, UI flattening design
4:Dual heat jaws, temperature controlled independently
5:Hot tack curve and other graphic outputs.
6:Pressure easy to adjust, heat temperature and time touch screen input.
7:Sample pneumatic clamping
8: Over temperature protection, over pressure protection
9: RS232 communication port.
10: DSM system is optional(Laboratory Management Information System), easy to manage and share test data.
Hot Tack Tester For Plastic Film Heat Seal Strength Test
Technical Indexes:
Sealing Temperature |
Room Temperature~300C |
| Resolution |
±0.1C
|
|
Accuracy
|
±0.2
|
Sealing Pressure |
0.1N/mm2~4.0N/mm
|
|
Dwell Time
|
0.025s~ 999.9s |
|
Load Range
|
0~100N(Standard)
0~50N(Optional)
0~250N(Optional)
0~500N(Optional)
|
| Humidity range |
Max0.01% F
|
Heat Jaw Surface |
10mm × 40 mm (customized)
|
|
Peeling Speed
|
21mm/s-750mm/s
|
| Sample size |
Length ≥300mm, Width ＜40mm,
Thickness ＜1mm;
|
Hot Tack Tester ASTM F1291 Plastic Film Testing Machine
