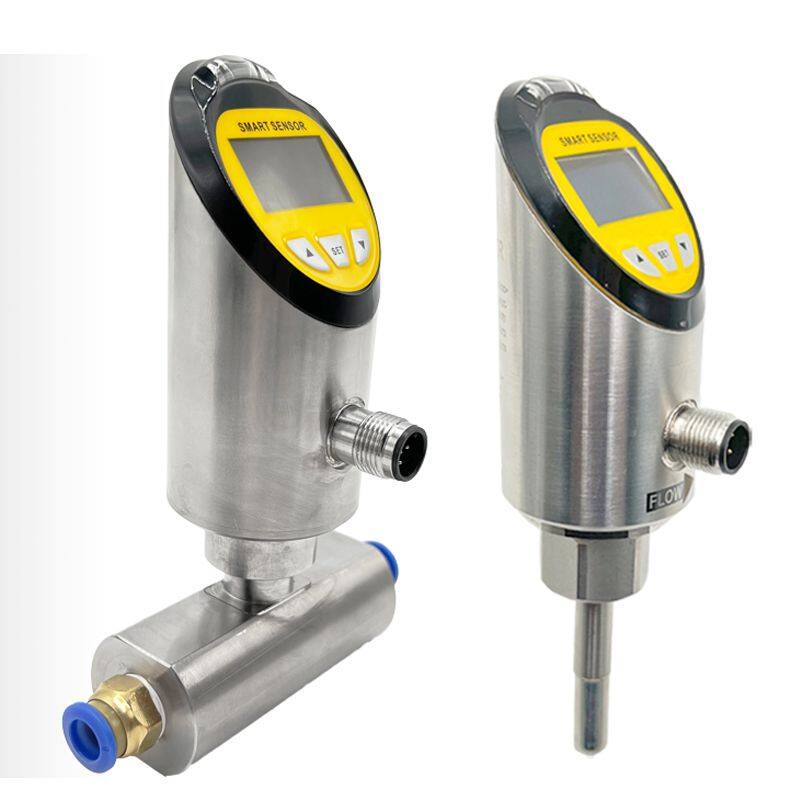

FXW intelligent flow temperature integrated sensor
It can monitor the liquid flow and temperature in the pipeline in real time, provide flow 4-20mA signal and alarm switch output, temperature 4-20mA signal and alarm switch output, and use digital LED to display fluid flow rate and temperature in real time, and can Set the alarm output through the meter head to realize the integrated monitoring function of temperature and flow in the pipeline. It is widely used in petrochemical, electric power, metallurgy, steel mills, papermaking, food processing, water treatment, battery factories and other industries.
FXW intelligent flow temperature integrated sensor features:
1. Temperature and flow; integrated sensor
2. Self-luminous OLED; display is clear and sharp
3. Temperature & flow intelligent display alarm contact output
4. Chinese + graphical interface; fool menu
5. Digital communication; analog integrated
6. The high-precision probe has good stability, long service life, anti-scaling probe and good corrosion resistance.
7. Full potting design, full waterproof shell
8. High pressure and high pressure type can withstand 60MPa
9. Mobile phone scan code installation guidance function; online engineer professional service without manual
The main technical parameters:
| Measuring range | water: 0.03~1.5m/s; oil: 0.03~3m/s |
| Display | OLED display |
| Switching time | ON: ≥5s (1~13s); OFF: ≥5s (1~15s) |
| Output | One alarm contact, 4-20mA (can be set) |
| Alarm contact | relay, NPN, PNP |
| Contact capacity | 0.15A/125VAC, 0.5A/30VDC |
| Insulation resistance | 50MΩ at 100VDC |
Temperature parameters:
| Measuring range | -20 ~ 100 ℃, customized |
| Display | OLED display |
| Switching time | ON: ≥5s (1~13s); OFF: ≥5s (1~15s) |
| Output | One alarm contact, 4-20mA (can be set) |
| Alarm contact | relay, NPN, PNP |
| Contact capacity | 0.15A/125VAC, 0.5A/30VDC |
| Insulation resistance | 50MΩ at 100VDC |
Other parameters:
| Working voltage | 24VDC |
| Power consumption | 3W (24VDC) |
| Interface | M18X1.5 internal thread |
| Shell material | 304 stainless steel |
| Probe material | 304 stainless steel |
| Environmental conditions | -20~85℃,≤85%RH |
| Protection class | IP67 |
FAQ:
1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on sensor for 10 years.
2. Q: What's your quality control system?
A: MC, ISO9001, CE Certificated.
3. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
A: Normally, our factory lead time is within 10~15 working days for products without customization. You can also check lead time detail with our sales depending on different items.
A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.
A: We have no MOQ limit, small quantity order is acceptable.
A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea.
A: We could accept T/T, Paypal, WU.
For more information, please contact us~
