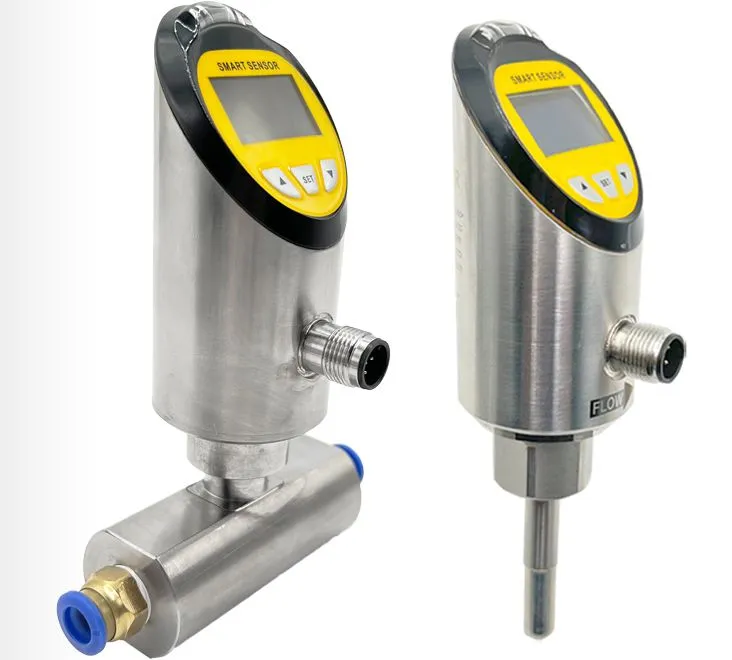

FXW intelligent flow temperature integrated sensor
It can monitor the liquid flow and temperature in the pipeline in real time, provide flow 4-20mA signal and alarm switch output, temperature 4-20mA signal and alarm switch output, and use digital LED to display fluid flow rate and temperature in real time, and can Set the alarm output through the meter head to realize the integrated monitoring function of temperature and flow in the pipeline. It is widely used in petrochemical, electric power, metallurgy, steel mills, papermaking, food processing, water treatment, battery factories and other industries.
FXW intelligent flow temperature integrated sensor features:
1. Temperature and flow; integrated sensor
2. Self-luminous OLED; display is clear and sharp
3. Temperature & flow intelligent display alarm contact output
4. Chinese + graphical interface; fool menu
5. Digital communication; analog integrated
6. The high-precision probe has good stability, long service life, anti-scaling probe and good corrosion resistance.
7. Full potting design, full waterproof shell
8. High pressure and high pressure type can withstand 60MPa
9. Mobile phone scan code installation guidance function; online engineer professional service without manual
The main technical parameters:
Flow parameters:
Measuring range: water: 0.03~1.5m/s; oil: 0.03~3m/s
Display: OLED display
Switching time: ON: ≥5s (1~13s); OFF: ≥5s (1~15s)
Output: One alarm contact, 4-20mA (can be set)
Alarm contact: relay, NPN, PNP
Contact capacity: 0.15A/125VAC, 0.5A/30VDC
Insulation resistance: 50MΩ at 100VDC
Temperature parameters:
Measuring range: -20 ~ 100 ℃, customized
Display: OLED display
Switching time: ON: ≥5s (1~13s); OFF: ≥5s (1~15s)
Output: One alarm contact, 4-20mA (can be set)
Alarm contact: relay, NPN, PNP
Contact capacity: 0.15A/125VAC, 0.5A/30VDC
Insulation resistance: 50MΩ at 100VDC
Other parameters:
Working voltage: 24VDC
Power consumption: 3W (24VDC)
Interface: M18X1.5 internal thread
Shell material: 304 stainless steel
Probe material: 304 stainless steel
Environmental conditions: -20~85℃,≤85%RH
Protection class: IP67
