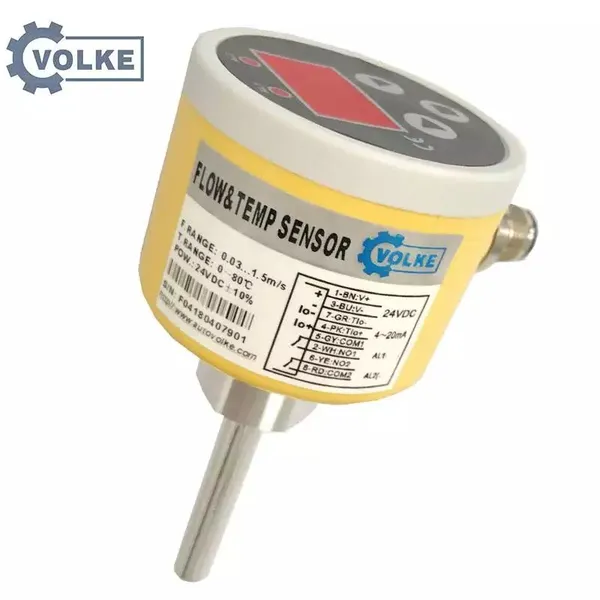

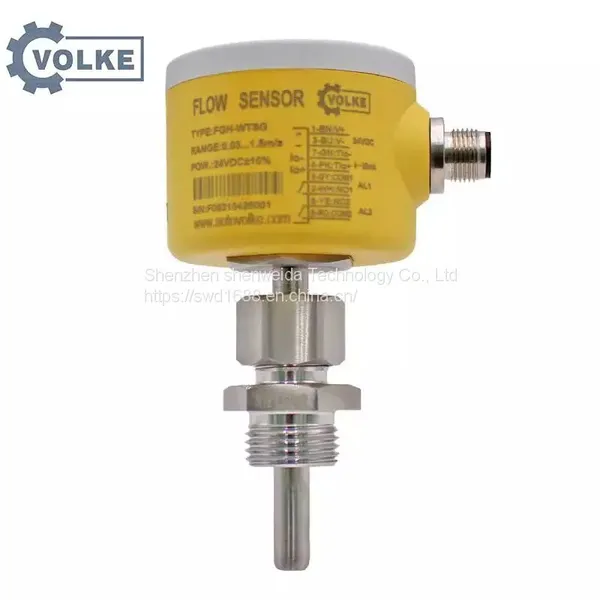

Electronic Liquid Water Control Flow Switch

FGI flow and temperature integrated sensor can monitor the liquid flow and temperature in the pipeline in real time, provide flow 4-20mA signal and alarm switch output, temperature 4-20mA signal and alarm switch output, and use digital LED to display fluid in real time Flow rate and temperature, and can be set to alarm through the meter to connect the output to realize the integrated monitoring function of temperature and flow in the pipeline. It is widely used in petrochemical, electric power, metallurgy, steel mills, papermaking, food processing, water treatment, battery factories and other industries.

FGI flow temperature integrated sensor features:

1. The temperature transmitter controller and the flow switch are integrated.

2, digital LED display flow and temperature.

3. Intelligent flow display and alarm contacts.

4. Intelligent temperature display and alarm contact.

5. Flow and temperature 4-20mA output can be switched.

technical parameter:

flow parameters

Measuring range: Water: 0.03 ~1.5 m/s

                   Oil: 0.03 ~3 m/s

Display: 3-digit digital LED display

Switching time: ON : ≥5 s (1 ~ 1 3 s); O F F : ≥ 5 s (1 ~ 1 5 s)

Output: One alarm contact, 4 - 20 mA (configurable)

Contact capacity: 0.1 5 A / 1 2 5 V A C, 0.5 A / 3 0 V D C

Insulation resistance: 50 MΩ at 100 V DC

Alarm Contact Type: Relay, N P N , P N P

Measuring range: -1 0 ~8 0 ℃, customized

temperature parameter

Display: 3-digit digital LED display

Output: One alarm contact, 4 - 20 mA (configurable)

Contact capacity: 0.1 5 A / 1 2 5 V A C, 0.5 A / 3 0 V D C

Insulation resistance: 50 MΩ at 100 V DC

Alarm Contact Type: Relay, N P N , P N P

Other parameters

Display: 3-digit digital LED display

Operating voltage: 24V DC

Protection class: IP 6 5

Power consumption: 3 W (2 4 V DC)

Shell material: P P

Interface: M 1 8 X 1.5 internal thread

Environmental conditions: - 2 0 ~8 5 ℃, ≤ 8 5 % RH

Probe material: 304 stainless steel
