Electromagnetic Low-current 27 V DC / AC Russian Components Relay

Electromagnetic Low-current 27 V DC / AC Russian Components Relay thumbnail-1
Electromagnetic Low-current 27 V DC / AC Russian Components Relay thumbnail-2
Electromagnetic Low-current 27 V DC / AC Russian Components Relay photo-1
Electromagnetic Low-current 27 V DC / AC Russian Components Relay photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Novgorod Foundation For Small Business Support
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

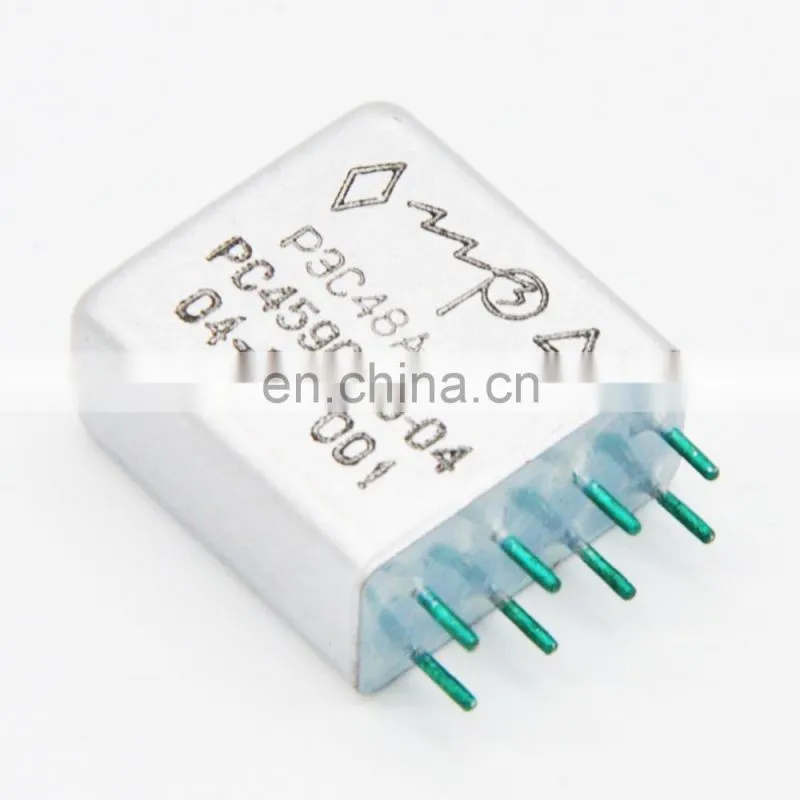

РЭС48А-В РС4.590.213-04 Relay

sealed, monostable, two-position, with two change-over contacts, powered by direct current It is intended for switching of DC and AC electric circuits with a frequency of up to 1100 Hz. Its structural design comprises plug-in terminals. Insulation resistance between current-carrying circuits, current-carrying circuits and the case - NLT 200 MOhm. Actuation time - 10 ms, release time - 5 ms. Operating voltage - 27 V.

- Electromagnetic, low-current, neutral
- ТУ ЯЛ0.450.033
- ГОСТ (GOST) 16121-86
- РС4.590.213-04 modification
- Nominal voltage 27 V

More than 50,000 items of goods are stock available and supplied on order.

Functional group
Electromagnetic, low-current
Actuation time
10 ms
Function type
Neutral
Release time
5 ms
Modification
РС4.590.213-04
Maximum commutated direct current
1 A
Technical specifications
ЯЛ0.450.033 ТУ
Maximum commutated direct-current voltage
36 V
National standard
ГОСТ 16121-86
Actuating current
23 mA
Typical configuration
With two change-over contacts
Drop-out current
3 mA
Mounting method
THT (through-hole)
Switching frequency
NMT 7 Hz
Overall dimensions L*W*H
20х10х28mm
Climatic modification
B - all climate conditions
Number of outputs and contacts
8
Operating temperature range
-60°С to +85°С
Output length
5 mm
Relative humidity
98% at a temperature of +35°С
Case material
Metal
Package
Box
Nominal voltage
27 V
Country of origin
Russia
Voltage range
24 V to 30 V
Minimum order
1 unit
Coil resistance
600±60 Ω
Brand
OJSC "Irkutsk relay equipment factory"
Key Features
Net weight of one unit
13.96 g
Package
Plastic bag + box
Box dimensions
Minimum dimensions 12*10*4cm
Box weight
Minimum weight 200g
Private Label Manufacturing
No
Minimum order
1 unit
The possible volume of supply
5,000 units per month
Delivery modes
Express courier, postal service, by sea, by truck
