ZTZG-140 Factory Price Tube Mill Manufacturer
US$ 80000 - 100000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ZTZG
Place of Origin:
China
Model Number:
ERW140
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
90 days
Related Products
-
Galvanized Pipe Welding High-Frequency Straight Seam Welded Pipe ERW Tube MillUS$ 80000 - 100000MOQ: 1 Set -
Cold Rolled Carbon Steel Forming Mill Large Diameter Cold Rolled Steel MachineUS$ 80000 - 100000MOQ: 1 Set
-
Long Service Life Pipe Mill ERW Tube Machine Steel Pipe and Profile Production LineUS$ 80000 - 100000MOQ: 1 Set
-
310S Stainless Steel Pipe, Welded PipeUS$ 800 - 1100MOQ: 1 Ton
-
Welded Pipe Welded Pipe 6mm-600mm Welded Iron Steel Pipe Price From China FactoryUS$ 450 - 500MOQ: 10 Tons
Brand Name
ZTZG
Place of Origin
China
Model Number
ERW140
Certification
ISO, SGS, CE
Type
Pipe Mill
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
50000
Dimension(L*W*H)
120*8*7m
Production Capacity
200sets/year
Condition
New
Voltage
380V,3ph
Application
Other, Construction
Power(W)
800000
Pipe Material
Carbon Steel
Product Description

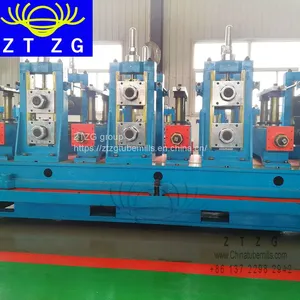

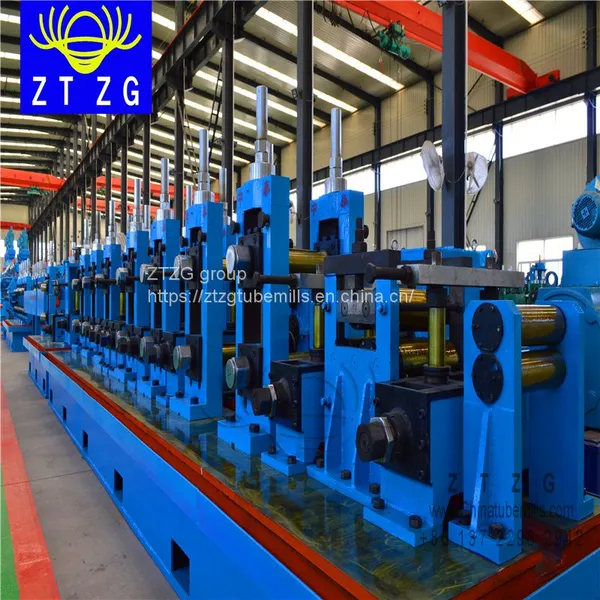

ERW pipe making machine
Uncoiling →Shear & Welder → Accumulator → Forming → H.F. Induction Welding → Burr Removing→ Cooling → Sizing → Cutting → Run out table → Checking & Collecting → Accessing Warehouse
Main Components
Double Heads Decoiler--------------------------------1 set
Shear & butt Welding Device-------------------------1 set
Horizontal Accumulator--------------------------------1 set

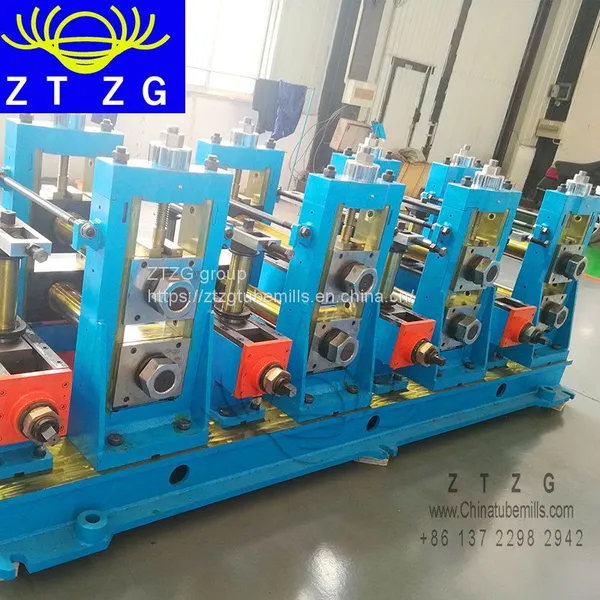

Forming & Sizing unit----------------------------------1 set
Computer Flying saw-----------------------------------1 set
Run out table (single side discharging)-----------1 set
Control system------------------------------------------1 set
Roller------------------------------------------------------according details
Introduction
Tube Mill Products:
GI, carbon steel and stainless steel tubes for metallurgy, construction, transportation, machinery and vehicle industries.
Characteristic:
High production efficiency, line speed can be up to 120m/min.
High yielding, the machine works stably at a high speed, which improves the yielding of products.
Low wastage, low unit wastage and low production cost.
High accuracy, diameter error is only 0.5/100 of the pipe OD.
More than 10 years' lifespan, high hedge ratio
| Model List | ||||
| Model | Specification(mm) | Thickness (mm) | Recommended Working Speed (M/min.) | |
| Circular | Rectangular/Square | |||
| ERW20 | 8-20 | 10mm×10mm -15mm×15mm | 0.5-1.5 | 120 |
| ERW32 | 10-32 | 10mm×10mm -25mm×25mm | 0.5-2.0 | 120 |
| ERW60 | 20-60 | 15mm×15mm - 45mm×45mm | 0.8-3.0 | 120 |
| ERW76 | 32-76 | 25mm×25mm - 60mm×60mm | 1.2-4.0 | 120 |
| ERW89 | 42-89 | 25mm×25mm - 70mm×70mm | 1.5-4.5 | 110 |
| ERW114 | 48-114 | 40mm×40mm - 90mm×90mm | 1.5-4.5 | 100 |
| ERW140 | 60-140 | 50mm×50mm - 110mm×110mm | 2-5 | 80 |
| ERW165 | 76-165 | 60mm×60mm - 130mm×130mm | 2-6 | 50 |
| ERW219 | 89-219 | 70mmx70mm- 170mm×170mm | 2-8 | 50 |
| ERW273 | 114-273 | 90mm×90mm - 210mm×210mm | 3-10 | 50 |
| ERW325 | 140-325 | 90mm×90mm - 250mm×250mm | 4-12.7 | 40 |
| ERW377 | 165-377 | 130mmx130mm-280mmx280mm | 4-14 | 35 |
| ERW406 | 219-406 | 170mm×170mm- 330mm×330mm | 6-16 | 30 |
| ERW508 | 273-508 | 210mmx210mm-400mmx400mm | 6-18 | 25 |
| ERW660 | 325-660 | 250mmx250mm -520mmx520mm | 6-20 | 20 |
| ERW720 | 355-720 | 280mmx280mm-570mmx570mm | 6-22 | 10 |
Q:Are you manufacturer?A:Yes,we are manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q:What kind of payment term do you do?
A: We do T/T and L/C.
Q:What info do you need before giving me the price and proposal?
A: Since we design individual machine based on our customer's requirement, we need your desired products' basic dimension, including all the pipe diameter(or tube length), thickness range , usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales service .Also we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you? what are the differences between you and other Chinese suppliers?
A:We are concentrate on pipe making machines for more than 20 years. We have constructed many steady trading partners in Asia,Africa, middle east, Europe, and South America throughout the years. Our innovative designed production line and each single unit of the production line are not only economical but also practical.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you? what are the differences between you and other Chinese suppliers?
A:We are concentrate on pipe making machines for more than 20 years. We have constructed many steady trading partners in Asia,Africa, middle east, Europe, and South America throughout the years. Our innovative designed production line and each single unit of the production line are not only economical but also practical.
