Power system OPPC 24 core hybrid fiber optical cable
Hybrid feeder cabling solution was developed to reduce installation complexity and costs at cellular sites,allows mobile operatiors deploying an RRH architecture to standardize the RRH installation process and eliminate the need and cost of cable grounding.

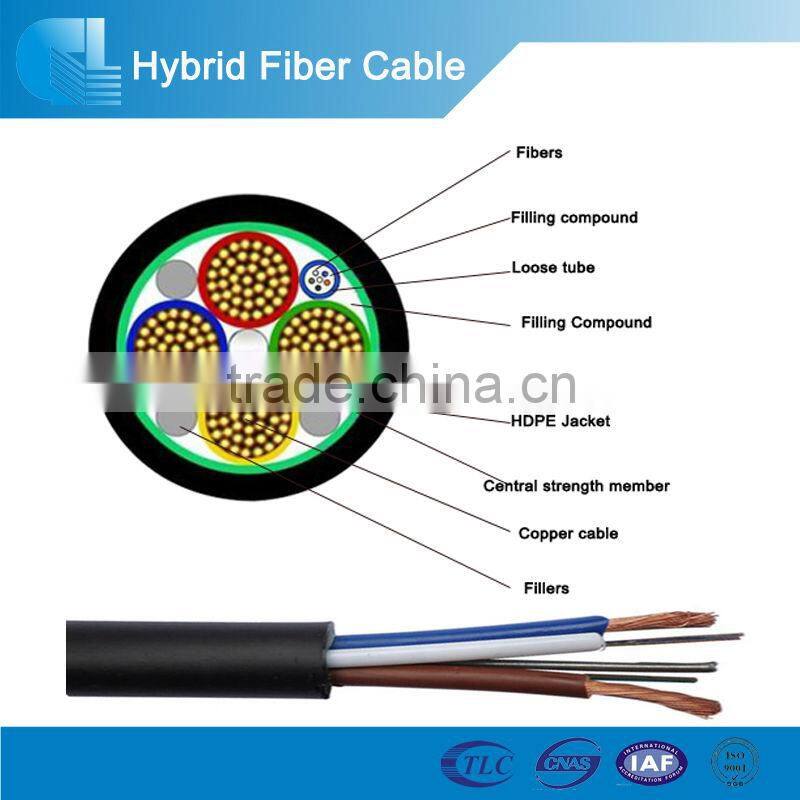

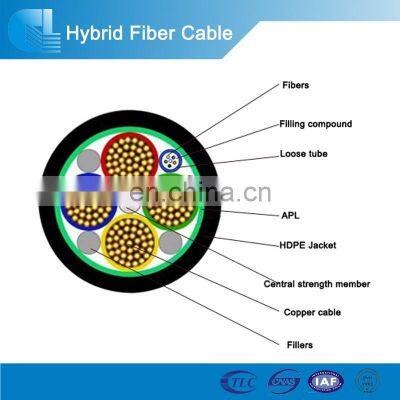

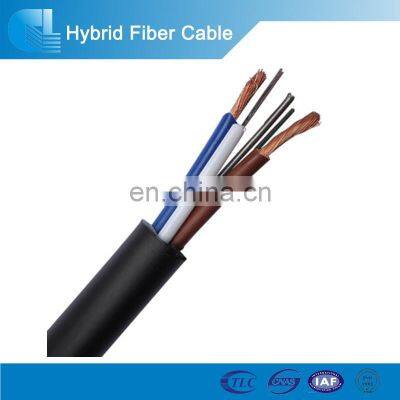

Hybrid cable combines optical fiber (multimode or single mode ) and copper conductor for DC power in a single light weight aluminium corrugated cable

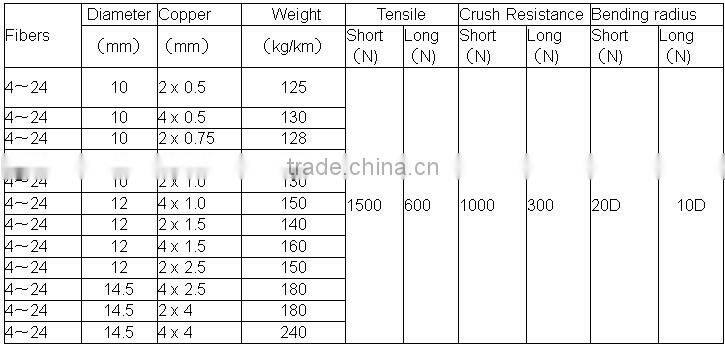

TECHINICAL PARAMETER
Note:
3. Specially designed Cable structure is available on request.
| Standard Packaging | Reeled by wooden Drum suitable for long-distance shipment | |||||||||
| Normal cable factory length |
Standard delivery length is 3000m with a tolerance of 5% or other required |
|||||||||
| Cable Weight | Approx. 450kg/km ~900kg/km | |||||||||
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C and Western Union, just choose what you like
3. Delivery time: Generally 15~25 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely
Hunan guanglian photoelectricity technologies Co.,Ltd is the professional enterprise on fiher optical cable at widely range of outdoor fiber optic / aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable /ADSS, OPGW, OPPC and OPLC for power system transmmision.
1. The Gate of Factory
2. Raw Material
3. Production Line

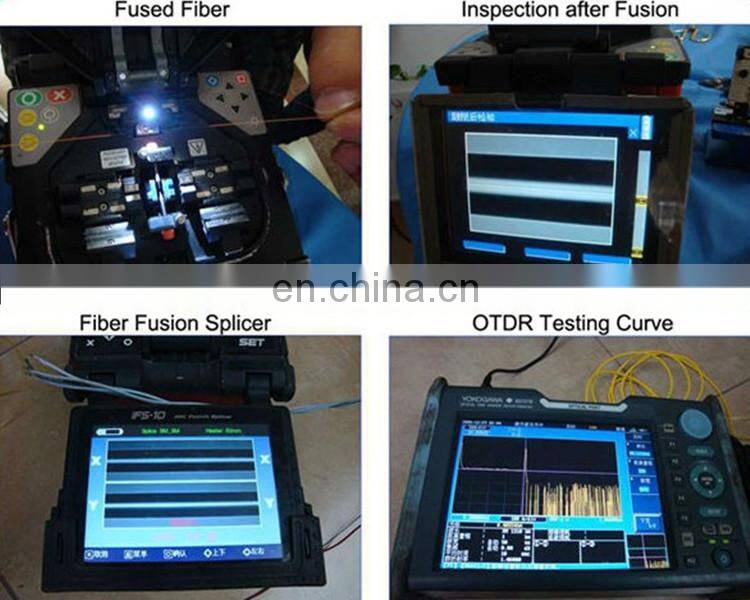

4. Fiber Optic Cable Testing
Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber Cable, mechanical characteristics can be tested on testing machine for the particular test.
♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to ur requirment and description;
♦ We can also provide OPGW hardware accessories fittings
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
