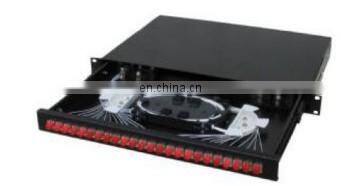

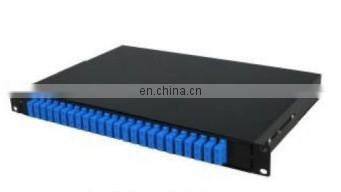

GL Factory Supply Drawer Type High Quality12 /24/48/96 Port Fiber Optic Patch Panel With1m Pigtails and Adapters
- T/T Credit Card
You May Like
-

                        China Manufactory Odf Patch Panel Compatible Products Drawer Type 12 Port Patch Panel Metal Structure
-

                        GL Drawer Type Distribution Frame LC Duplex ODF 12 Port Fiber Optic Patch Panel
-

                        1U 19 Inch Sliding Type Rackmount Fully Load ODF 24 Port SC SX Fiber Patch Panel With1m Pigtails and Adapters
-

                        GL Hot Selling! Factory Supply Drawer Type High Quality12 /24/48/96 Port Fiber Optic Patch Panel
-

                        GL 12 Port Patch Panel Metal Structure OEM Fireproof High Quality 12port Patch Panel Wholesale
-

                        FTTH Fiber Optic Cable Dome Splice Closure Splice Enclosure Box 96core 144 Core Fiber Optical Splice Closure Box
Product Description
ODF is mainly used for cable inlet, grounding and fixing and the splicing between the terminal end and pigtail. Users can select unit or ring flange amount according to their practical needs.
Application:
1,Telecommunications subscriber loop;
2,Fiber to the home (FTTH);
3,LAN/WAN;
4,CATV.
Charcterisics:
1,Applied to various of optical fiber distribution frames, distribution cabinets and optical cable cross-connection cabinets.
2,With splice trays in the box and integrate heat sealing and wiring into one.
3,Applydouble-sided structured optical fiber splice trayto make full use of the two sides of the board.
4,It’s suitable for ribbon or non-ribbon optical fiber cable.
5,Every tray can be clamped with 12FC/SC/ST adaptors.
6,Install adaptors on the face side of optical fiber splice tray in a bayonet way at an oblique angle of 30 degrees to ensure curve radius of optical fiber and prevent eyes from being damaged by laser light at the same time.
Features:
Easy Installa;High reliabil;FC/SC/ST/L;Anti-Rust p;Rugged Cas;Sliding Rail;For 19 in.
Specifications:
| Model | Fiber Quantity | Height | Dimension(cm) | Weight(Kg) |
| ODF-R12 | 12 | 1U | 45x 32×4.45 | 4 |
| ODF-R24 | 24 | 1U | 45x 32×4.45 | 4.2 |
| ODF-R48 | 48 | 2U | 48x32x8.9 | 4.31 |
| ODF-R96 | 96 | 2.5U | 48x32x11 | 5.05 |
| ODF-R144 | 144 | 4U | 48x32x17.8 | 7.91 |
ODF Unit Series with door:
| Modle No. | Overall Size | Max Capacity | Port Type | Way to install |
| GL0104011/15 | 480*280*3U | 48core | SC/FC | Rack-mounted |
| GL0104012/16 | 480*280*4U | 72core | SC/FC | Rack-mounted |
ODF Unit Series without door:
| Modle No. | Overall Size | Max Capacity | Port Type | Way to install |
| GL0104003 | 480*210*3U | 48core | SC | Rack-mounted |
| GL0104004 | 480*210*4U | 72core | SC | Rack-mounted |
| GL0104008 | 480*235*3U | 48core | FC | Rack-mounted |
| GL0104009 | 480*235*4U | 72core | FC | Rack-mounted |
COMPANY IMFORMATION
Hunan Guanglian Photoelectricity Technologies Co., Ltd(GL technology) is a professional manufacturer of fiber optic cable. GL technology offers its customers a complete range of indoor & outdoor cables,including FTTH drop cables/ aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable, ADSS,OPGW and OPPC for power system transmission in China.
Over 2000.00km of fiber optic cables installed, with sold over the world more than 30 countries. GL technology have been used in various fields over the world. In GL technology, We supply a full system and providing fiber optic cable system solutions and technical assistance for you. Customers who choose the GL technology can be sure that their decision will lead to a successful experience.
Certification

FAQ
1.Are you the real manufacturer?
Us. We are the real manufacturer with 17 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 10% in advance and 90% before shipment.
