figure 8 sm self supported cable 6/12/24 core fiber optic cable manufacturer in Chinae
Figure 8 fiber optic cable SASJ HDPE sheath 6 core fiber optic cable
Technical Characteristics
Loose buffer tube Jelly filled within cable core; fig8 Sheath; Application for local area Network .

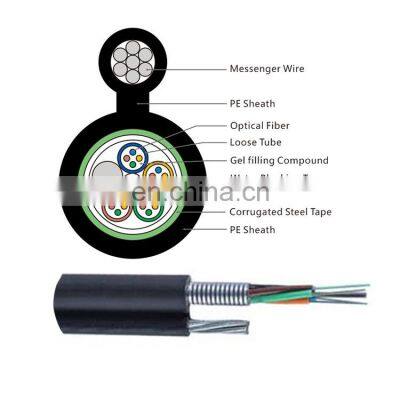

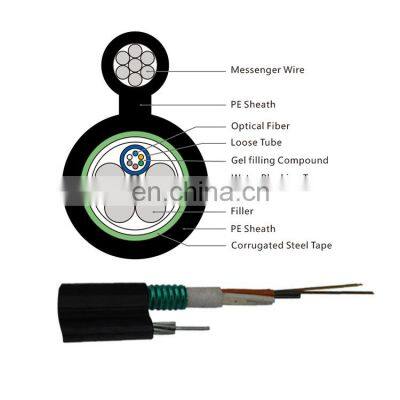

Construction:
1. Fiber
2. Jelly filling the tube
3. PBT loose tube
4. Jelly filling the cable
5, Corrugated armored
6,Steel wire central Strength
7,Water block tape
8 Possiable rip cords
Dimension and Properties
Fiber count |
24 |
Max. No of loose tube |
2 |
Fiber No. per tube |
12 |
No. filler |
4 |
Loose tube diameter |
2.2±0.2mm |
Water blocking material |
Filling gel in loose tube |
Strength |
Steel |
Messenger wire |
1.0mm*7 steel wire |
Outer sheath thickness |
1.8±0.2mm |
Cable OD mm |
5.0mm*17mm |
Operation temperature range |
-40 ℃ to + 70 ℃ |
Installation temperature range |
-40 ℃ to + 70 ℃ |
Transport and storage temperature range |
-40 ℃ to + 70 ℃ |
Allowable Tensile Load(N) |
Short term:1500 Long term:600 |
Crush resistance |
Long term :1000 N/10cm Short term :2200N/10cm |
Minimal installation bending radius |
20 x OD |
Minimal operation bending radius |
10 x OD |
The fibres shall be marked by a coloured coating with 12 different colours according to EIA/TIA 598:
PACKING AND DRUM
T cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture; kept away from high temperature and fire sparks; protected from over bending and crushing; protected from mechanical stress and damage.
MORE PRODUCT
COMPANY IMFORMATION
Hunan Guanglian Photoelectricity Technologies Co., Ltd(GL technology) is a professional manufacturer of fiber optic cable. GL technology offers its customers a complete range of indoor & outdoor cables,including FTTH drop cables/ aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable, ADSS,OPGW and OPPC for power system transmission in China.
Over 200.00km of fiber optic cables installed, with sold over the world more than 30 countries. GL technology have been used in various fields over the world. In GL technology, We supply a full system and providing fiber optic cable system solutions and technical assistance for you. Customers who choose the GL technology can be sure that their decision will lead to a successful experience.
OUR EXIHIBITION
Certification
PAKING AND SHIPPING
|
1. Standard Packaging: Rolled by wooden wooden drums. 2000m to 6000m/drum or other required. 2. Sheath mark: The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required b. Standard Code(Product Type, Fiber Type, Fiber Count) c. Year of manufacture: 7 years d. Length marking in meters. |
Our Service: 1.We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience. 2.We accept OEM. The cable size and material are customized. Ur own logo and own design are welcome. We will produce according to your requirment and description; 3.Please send us inquiry for more products info and we will give you feedback in 12 hours. |
FAQ
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
