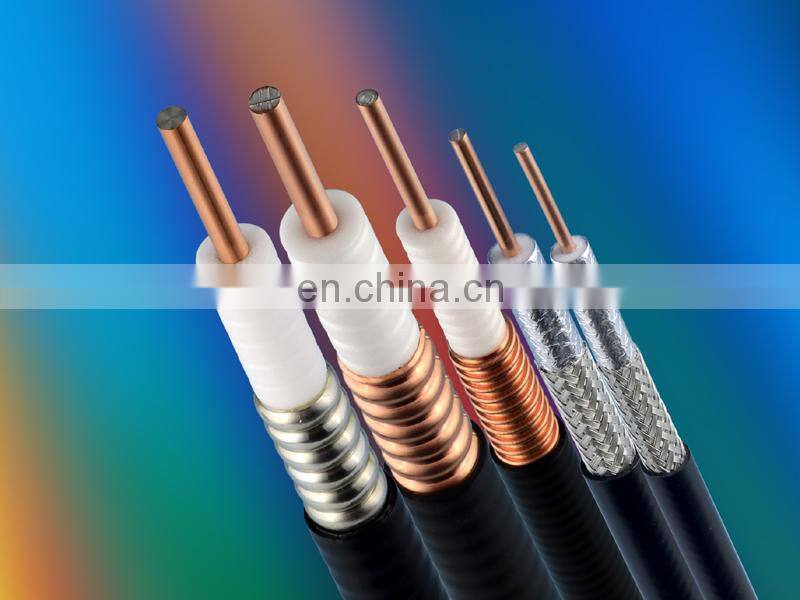

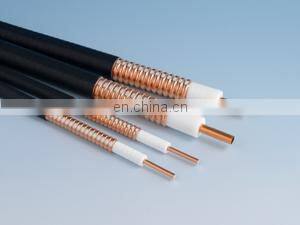

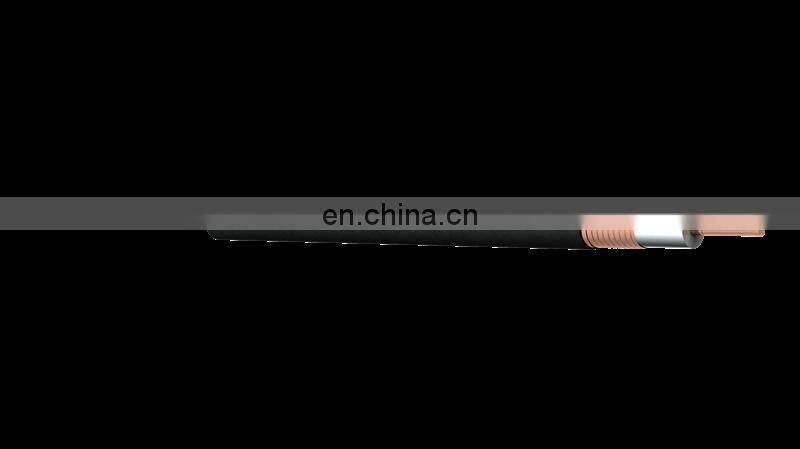

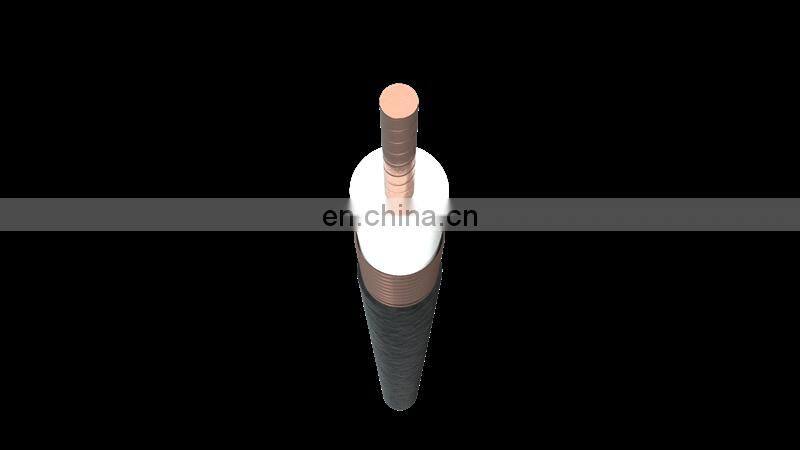

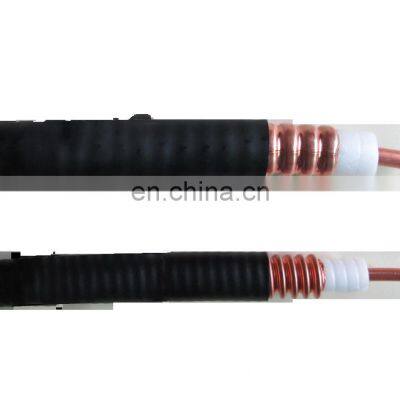

PVC jacket telecom feeder cable 7/8 rf coaxial cable 50 ohm high flexibility
Charateristics
- High Flexibility
- Low Attenuation
- High Power Rating
- Resistant to hostile environments
Application
- DAS & Small Cell.
- Telecomunications.
- Aerospace Industries.

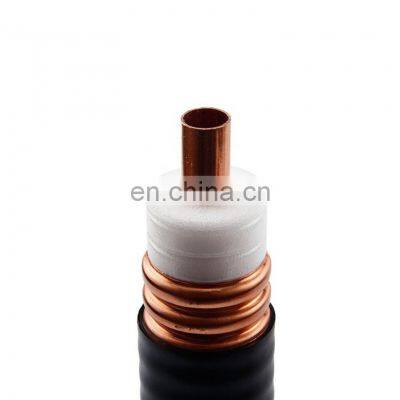

Mechanical Specifications
|
Inner Conductor |
Copper clad aluminium wire Ø 8.4mm ± 0.05mm
|
|
Dielectric |
Physically Foamed (PE) Ø 22.5mm ± 0.40mm
|
|
Outer Conductor |
Ring corrugated copper tube Ø 24.6mm ± 0.30mm
|
|
Jacket |
Black PE or Flame retardant black PE Ø 26.9 mm± 0.30mm
|
|
Min. bending Radius (Single) |
120 mm |
|
Min. bending Radius (Repeated) |
250 mm |
|
Maximum tensile strength
|
≥1470N
|
|
Recommended maximum clamp spacing
|
1m |
Electrical Specifications
|
Impedance |
50±3 ohm |
|
Relative Velocity Of Propagation |
86% |
|
Nominal Capacitance
|
75 pF/m |
|
Nominal Inductance
|
0.19 μH/m |
|
Cut-off Frequency |
5.5GHz |
|
Peak Power Rating |
91 kW |
|
Insulation Resistance |
≥ 5000 MΩ x km |
|
DC Breakdown Voltage |
6000V |
|
Jacket Spark Test Voltage |
8000 Vrms |
|
Inner Conductor DC-resistance |
≤ 1.55 Ω/km |
|
Outer Conductor DC-resistance |
≤ 2.7 Ω/km |

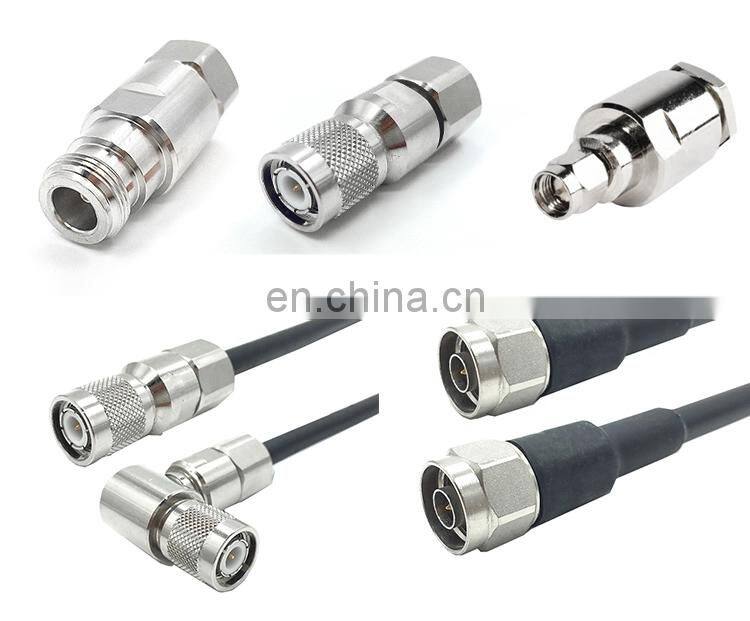

| Connector | Attachment | |
| N Male | Clamp Type | Crimp Type |
| 4.3-10 Male | Clamp Type | Crimp Type |
| TNC Male | Clamp Type | Crimp Type |
| DIN Male | Clamp Type | Crimp Type |
MORE PRODUCT
FAQ
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
3. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
4.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
