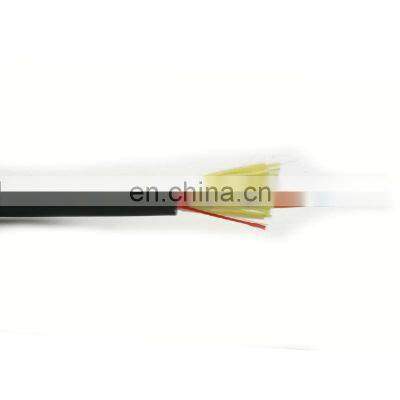

Help Center24 Core Single Mode Fiber Optic Cable Indoor Outdoor
Related Products
-
Fibre Optic Overhead Cables Drum Kilometres 48 CoresNegotiableMOQ: 1 -
36 Core Fiber Optic Cable G.652NegotiableMOQ: 1
-
Fiber Optic Cable G652 ADSS CablesNegotiableMOQ: 1
-
Fibre Optic Cable ADSS 32 Cores Fiber CableNegotiableMOQ: 1
-
24 Core Double Sheath Self Support 400m Span ADSS Fiber Optic CableNegotiableMOQ: 1
fibre optica de 12 hilos adss cable fiber hdpe jacket
TECHNICAL DATE
|
Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
Rec. Daily Max. Working Tension (kN) |
Max Allowable Working Tension (kN) |
Break Strength (kN) |
Strength Member CSA (mm2) |
Modulus of Elasticity CSA (kN/mm2) |
Heat Expansion Coefficient (x10- 6/K) |
Suitable Span (NESC Standard,m) |
||||
|
PE Jacket |
AT Jacket |
A | B | C | D | |||||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
MORE PRODUCT
COMPANY IMFORMATION
Hunan Guanglian Photoelectricity Technologies Co., Ltd(GL technology) is a professional manufacturer of fiber optic cable. GL technology offers its customers a complete range of indoor & outdoor cables,including FTTH drop cables/ aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable, ADSS,OPGW and OPPC for power system transmission in China.
Over 200.00km of fiber optic cables installed, with sold over the world more than 30 countries. GL technology have been used in various fields over the world. In GL technology, We supply a full system and providing fiber optic cable system solutions and technical assistance for you. Customers who choose the GL technology can be sure that their decision will lead to a successful experience.
OUR EXIHIBITION
|
1. Standard Packaging: Rolled by wooden wooden drums. 2000m to 6000m/drum or other required. 2. Sheath mark: The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required b. Standard Code(Product Type, Fiber Type, Fiber Count) c. Year of manufacture: 7 years d. Length marking in meters. |
