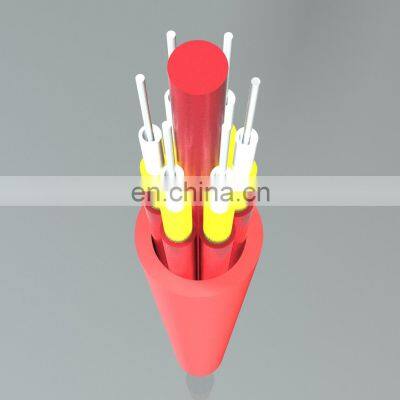

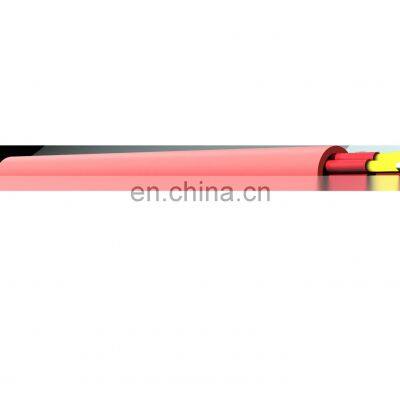

(GJBFJV) Indoor Multi Purpose Break-out Flber Optic Cable optical fiber r
Technical Parameter:
| Number of Fibers | 2 | 4 | 6 | 8 | 12 | 24 |
| Cable Diameter (mm) | 5.00 | 5.10 | 5.30 | 6.00 | 6.60 | 8.50 |
| Cable Weight (kg/km) | 20 | 20 | 22 | 25 | 28 | 50 |
| TBF Diameter (μm) | 900±50 |
|||||
| Fiber Mode | SMF | 50/125 | 62.5/125 |
| Wavelength | 1310/1550(nm) | 850/1300(nm) | 850/1300(nm) |
| Max Attenuation (dB/km) | 0.45/0.30 | 3.5/1.5 | 3.5/1.5 |
| AVG. Attenuation (dB/km) | 0.40/0.25 | 3.0/1.0 | 3.0/1.0 |
| Min Bandwidth (MHz/km) | —— | 400/400 | 160/500 |
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

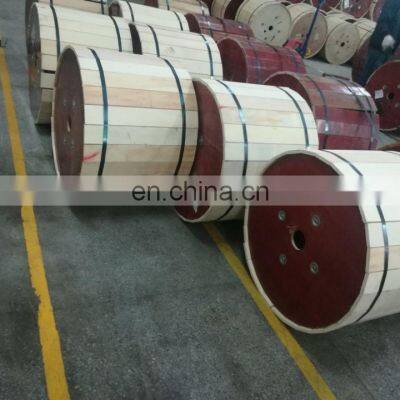

4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
