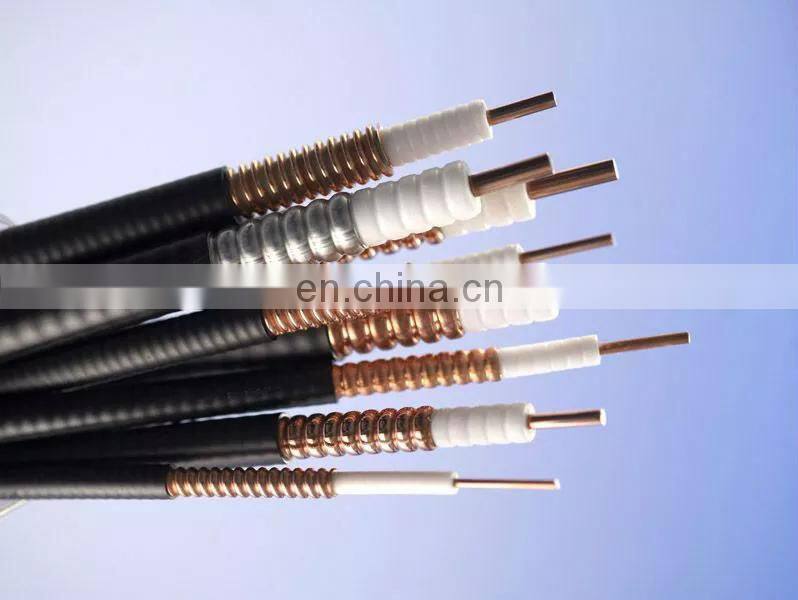

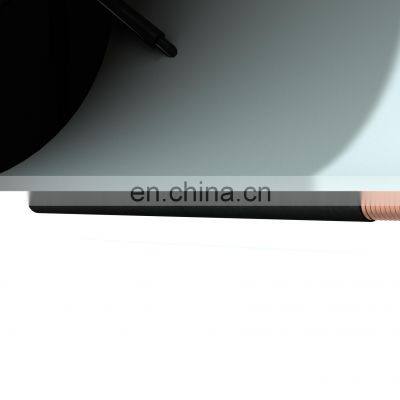

OEM/ODM Low Attenuation 7/8'' Feeder Cable RF coaxial fiber optic cable optical fiber
Mechanical Specifications
|
Inner Conductor |
Copper clad aluminium wire Ø 4.8mm |
|
Dielectric |
Foamed polyethylene (PE) Ø 12.2mm |
|
Outer Conductor |
Annularly corrugated copper tube Ø 13.8mm |
|
Jacket |
PE, Black, UV resistant, Halogen free Ø 15.9 mm |
|
UV Resistance |
GB/T 14049-093; EN 50289-4-17, Method A
|
|
Cable Weight |
≈ 200 kg/km |
|
Tensile Strength |
1150N |
|
Min. bending Radius (Single) |
70 mm |
|
Min. bending Radius (Repeated) |
125 mm |
|
Number Of Bends, Minimum (Typical) |
15 (50) |
|
Flat plate Crush Strength |
20 N/mm |
|
Recommended Hanger Spacing |
0.8 m |
Electrical Specifications
|
Impedance |
50±1 ohm |
|
Relative Velocity Of Propagation |
88% |
|
Capacitance |
76 pF/m |
|
Inductance |
0.195 μH/m |
|
Maximum Operating Frequency |
8.8GHz |
|
Cut-off Frequency |
10GHz |
|
Peak Power Rating |
16 kW |
|
Insulation Resistance |
≥ 10 GΩ x km |
|
DC Breakdown Voltage |
6000V |
|
Jacket Spark Test Voltage |
8000 Vrms |
|
Inner Conductor DC-resistance |
≤ 1.55 Ω/km |
|
Outer Conductor DC-resistance |
≤ 2.7 Ω/km |
MORE PRODUCT
FAQ
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
