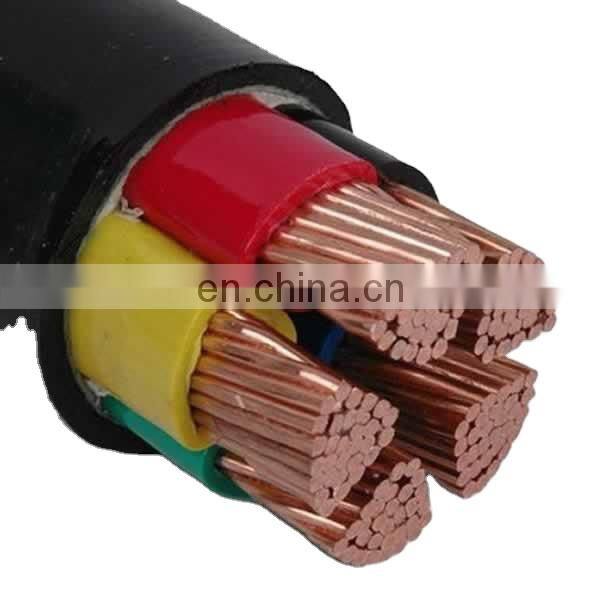

Copper/ Aluminum Conductor PVC/XLPE Insulation PVC Sheath Amoured PVC Outer Sheath Medium Voltage Power Cable

Name: Copper/ Aluminum Conductor PVC/XLPE Insulation PVC Sheath Amoured PVC Outer Sheath Medium Voltage Power Cable
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Products Description

Voltage:0.6/1kv,1.8/3KV,3.6/6KV,6/10KV,10KV,11KV,15kv,8.7/15KV, 18/30KV,19/33KV, 26/35KV

Size of area: 2.5mm2-100mm2

Armour type:

1. Galvanized steel wires/steel tape for 3 core; 2. Stainless steel wire/Steel tape or Aluminium wire/tape for single core Polyvinyl chloride (PVC) or PE, or HDPE.

Specifications

Part Number	Cross Section	Stranding	Approx Weight	Approx Overall Diameter	Gland Size	Single Cleat	Nom. Max. DC-resist conductor 20° C	Current rating laid direct
	(mm²)	(mm)	KG/KM	(mm)	(mm)		(Ohm/km)	(Amp)
11KVPVC3X16	3 x 16	7/1.70	3440	44.3	40	1.8	1.15	119
11KVPVC3X25	3 x 25	7/2.14	4060	48.5	50	2	0.727	152
11KVPVC3X35	3 x 35	7/2.52	4495	50.5	50	R9	0.524	181
11KVPVC3X50	3 x 50	19/1.78	5115	53	63s	R9	0.387	213
11KVPVC3X70	3 x 70	19/2.14	6035	56.8	63s	R10	0.268	260
11KVPVC3X95	3 x 95	19/2.52	7180	61.3	63	R10	0.193	309
11KVPVC3X120	3 x 120	37/2.03	8280	65.1	75s	R11	0.153	349
11KVPVC3X150	3 x 150	37/2.25	9325	66.8	75s	R11	0.124	390
11KVPVC3X185	3 x 185	37/2.52	10740	72.3	75	R12	0.0991	436
11KVPVC3X240	3 x 240	61/2.52	13820	79.3	90	R14	0.0754	499
11KVPVC3X300	3 x 300	61/2.85	16120	84.2	90	R15	0.0754	553
11KVPVC3X400	3 x 400	61/3.20	19350	92.4		R15	0.047	619

Company Profile

Hunan Guanglian Optoelectronics Technology Co., Ltd. was established in 2009. The company is located in China Changsha, Hunan. The company is an AAA credit enterprise and a national high-tech enterprise. The company has passed ISO9001 quality certification, TLC product certification, management system certification, power cable access license, Coal safety certification, and has obtained a number of technical patents, and has a comprehensive and unique solution in the national grid optical fiber transmission project. If you need visit our factory , we will meet you at the airport or train station.

lso we can offer other service. Custom Merchandise:we can make cable as your need include the color ,size and so on.we also offer OEM .Complete Course Tracking:we can offer you the service from the business begin to you get the cable and use it

Cable sample : we can offer the sample free
