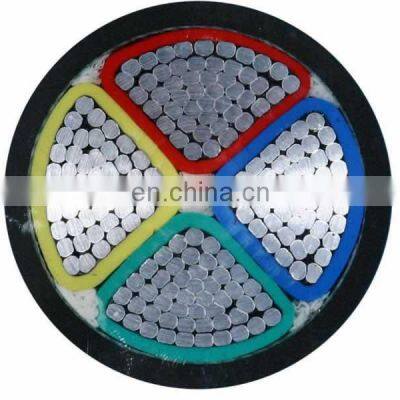

18/30kv Yjlv 3x240 Medium Voltage Aluminum Conductor Xlpe Insulation Pvc Sheath Power Cable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1993
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale High Voltage XLPE Cable 66kV 110kV 132kV 220kV 500kV HV Power CableNegotiableMOQ: 1 -
600/100v Low Voltage 4x50mm2 95mm 4 Core Xlpe Underground Copper Power Cable Overhead Abc Cable Shrimp Triplex CableNegotiableMOQ: 1
-
6/10kV Protolon Tscgewoeu Prysmian MV Medium Voltage Flexible Traling Cable 3 Core * 50mmNegotiableMOQ: 1
-
N2XSY Medium Voltage Single Core Cable 12/20 KV, XLPE With Screen of Cu ConductorsNegotiableMOQ: 1
-
NYY 3 x 16 Mm2 RE Power and Signal Cable 0,6/1 KV, PVC Insulated and SheathedNegotiableMOQ: 1
Products Description
Distribution and signal power cable for static outdoor application (with protection against direct UV-irradiation), in ground, in
water, within facilities, in cable canals, in concrete, in conditions where heavier mechanical loads and specially tensile
strains, are not expected. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and in
other electric plants, same as for connection of signalling devices in industry, traffic and similar.
Specifications
art Number | Cross Section | Stranding | Approx Weight | Approx Overall Diameter | Gland Size | Single Cleat | Nom. Max. DC-resist conductor 20° C | Current rating laid direct |
(mm²) | (mm) | KG/KM | (mm) | (mm) | (Ohm/km) | (Amp) | ||
SWAPVC4X1.5 | 4 x 1.5 | 7/0.53 | 351 | 12.88 | 20s | 0.5 | 12.1 | 32 |
SWAPVC4X2.5 | 4 x 2.5 | 7/0.67 | 429 | 14.43 | 20s | 0.6 | 7.41 | 42 |
SWAPVC4X4.0 | 4 x 4.0 | 7/0.85 | 538 | 16.87 | 20 | 0.6 | 4.61 | 55 |
SWAPVC4X6.0 | 4 x 6.0 | 7/1.04 | 670 | 17.87 | 20 | 0.7 | 3.08 | 69 |
SWAPVC4X10 | 4 x 10 | 7/1.35 | 998 | 20.1 | 25 | 0.8 | 1.83 | 92 |
SWAPVC4X16 | 4 x 16 | 7/1.70 | 1,272 | 22.4 | 25 | 0.9 | 1.15 | 119 |
SWAPVC4X25 | 4 x 25 | 7/2.14 | 1,940 | 27 | 32 | 1 | 0.727 | 152 |
SWAPVC4X35 | 4 x 35 | 7/2.52 | 2,390 | 30.1 | 32 | 1.2 | 0.524 | 182 |
SWAPVC4X50 | 4 x 50 | 19/1.78 | 2,925 | 31.5 | 32 | 1.4 | 0.387 | 217 |
SWAPVC4X70 | 4 x 70 | 19/2.14 | 4,200 | 37.4 | 40 | 1.6 | 0.268 | 266 |
SWAPVC4X95 | 4 x 95 | 19/2.52 | 5,355 | 40.9 | 50s | 1.8 | 0.193 | 319 |
SWAPVC4X120 | 4 x 120 | 37/2.03 | 6,925 | 46.6 | 50 | 2 | 0.153 | 363 |
SWAPVC4X150 | 4 x 150 | 37/2.25 | 8,200 | 50.2 | 50s | 2 | 0.124 | 406 |
SWAPVC4X185 | 4 x 185 | 37/2.52 | 9,975 | 55.8 | 63s | TC9 | 0.0991 | 458 |
SWAPVC4X240 | 4 x 240 | 61/2.52 | 12,700 | 62.5 | 63 | TC10 | 0.0754 | 529 |
SWAPVC4X300 | 4 x 300 | 61/2.85 | 15,275 | 67.4 | 75s | TC11 | 0.0601 | 592 |
SWAPVC4X400 | 4 x 400 | 61/3.20 | 19,875 | 77 | 75 | TC12 | 0.047 | 667 |
Company Profile
GL Technology is a professional MV XLPE Power Unarmoured Cable (Medium Voltage XLPE Insulated Unarmoured Power Cable factory)
manufacturer and supplier in China. Our products also include AAC, AAAC, ACSR, ACAR, Galvanized Steel Wire, Aluminium Clad Steel
Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to
email us, we will reply to you that day with feasible prices and material in time!
Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to
email us, we will reply to you that day with feasible prices and material in time!
lso we can offer other service. Custom Merchandise:we can make cable as your need include the color ,size and so on.we also offer OEM .Complete Course Tracking:we can offer you the service from the business begin to you get the cable and use it
Cable sample : we can offer the sample free
