Home > Products > Power cable > Aluminum Duplex Twisted Acsr Abc Cables Bull 1/0 Awg Duplex Service Drop Cable

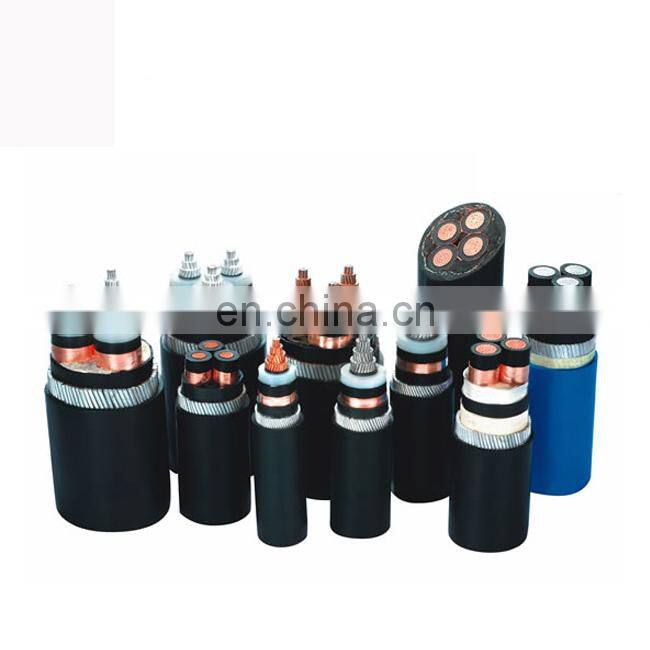

Aluminum Duplex Twisted Acsr Abc Cables Bull 1/0 Awg Duplex Service Drop Cable
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Bare Aluminium Conductor Pe/xlpe Insulation 50mm 70mm Abc Cable
-
All Aluminum Alloy Conductor 70mm2 95mm2 120mm2 Aac
-
All Aluminum Alloy Aaac Conductor Wire Cable
-
All Aluminium Alloy Conductor Aaac Bare Conductor
-
Alambre Aaac 2/0 Aaac Conductor Price
-
GL 1kv Insulated PVC Sheathed 240mm XLPE 4 Core Armoured LV Cable China Factory Price
Product Description
Products Description
Voltage:0.6/1kv,1.8/3KV,3.6/6KV,6/10KV,10KV,11KV,15kv,8.7/15KV, 18/30KV,19/33KV, 26/35KV
Size of area: 2.5mm2-100mm2
Armour type:
1. Galvanized steel wires/steel tape for 3 core; 2. Stainless steel wire/Steel tape or Aluminium wire/tape for single core Polyvinyl chloride (PVC) or PE, or HDPE.
Specifications
Part Number | Cross Section | Stranding | Approx Weight | Approx Overall Diameter | Gland Size | Single Cleat | Nom. Max. DC-resist conductor 20° C | Current rating laid direct |
(mm²) | (mm) | KG/KM | (mm) | (mm) | (Ohm/km) | (Amp) | ||
11KVPVC3X16 | 3 x 16 | 7/1.70 | 3440 | 44.3 | 40 | 1.8 | 1.15 | 119 |
11KVPVC3X25 | 3 x 25 | 7/2.14 | 4060 | 48.5 | 50 | 2 | 0.727 | 152 |
11KVPVC3X35 | 3 x 35 | 7/2.52 | 4495 | 50.5 | 50 | R9 | 0.524 | 181 |
11KVPVC3X50 | 3 x 50 | 19/1.78 | 5115 | 53 | 63s | R9 | 0.387 | 213 |
11KVPVC3X70 | 3 x 70 | 19/2.14 | 6035 | 56.8 | 63s | R10 | 0.268 | 260 |
11KVPVC3X95 | 3 x 95 | 19/2.52 | 7180 | 61.3 | 63 | R10 | 0.193 | 309 |
11KVPVC3X120 | 3 x 120 | 37/2.03 | 8280 | 65.1 | 75s | R11 | 0.153 | 349 |
11KVPVC3X150 | 3 x 150 | 37/2.25 | 9325 | 66.8 | 75s | R11 | 0.124 | 390 |
11KVPVC3X185 | 3 x 185 | 37/2.52 | 10740 | 72.3 | 75 | R12 | 0.0991 | 436 |
11KVPVC3X240 | 3 x 240 | 61/2.52 | 13820 | 79.3 | 90 | R14 | 0.0754 | 499 |
11KVPVC3X300 | 3 x 300 | 61/2.85 | 16120 | 84.2 | 90 | R15 | 0.0754 | 553 |
11KVPVC3X400 | 3 x 400 | 61/3.20 | 19350 | 92.4 | R15 | 0.047 | 619 |
Company Profile
Hunan Guanglian Optoelectronics Technology Co., Ltd. was established in 2009. The company is located in China Changsha, Hunan. The company is an AAA credit enterprise and a national high-tech enterprise. The company has passed ISO9001 quality certification, TLC product certification, management system certification, power cable access license, Coal safety certification, and has obtained a number of technical patents, and has a comprehensive and unique solution in the national grid optical fiber transmission project. If you need visit our factory , we will meet you at the airport or train station.
lso we can offer other service. Custom Merchandise:we can make cable as your need include the color ,size and so on.we also offer OEM .Complete Course Tracking:we can offer you the service from the business begin to you get the cable and use it
Cable sample : we can offer the sample free
