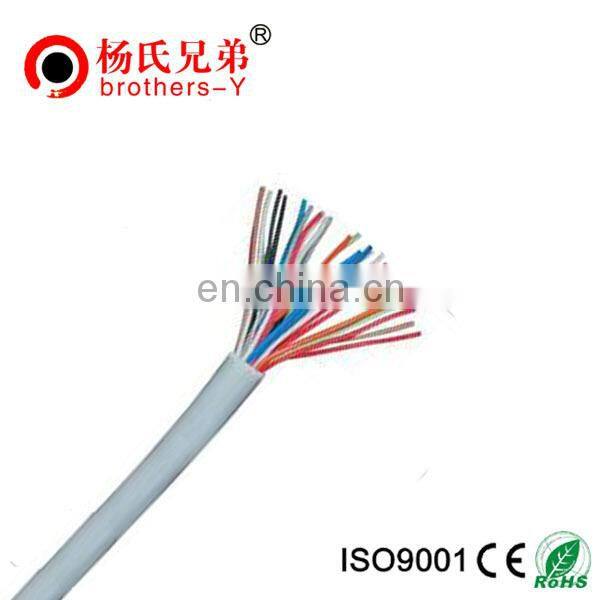

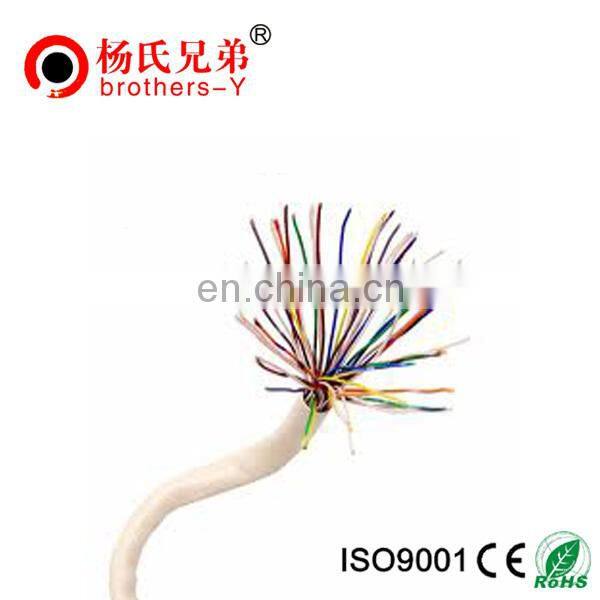

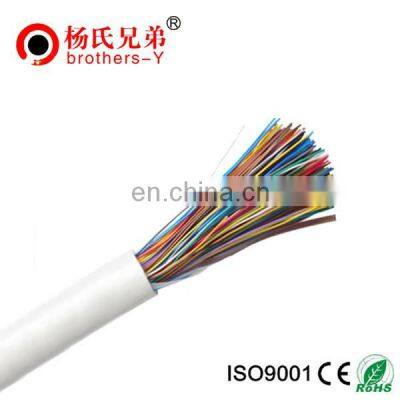

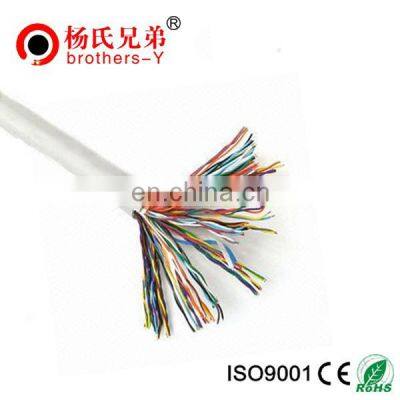

Armoured Multipairs Telephone Cable 100 Pair Aerial Telephone Cable Multi Pairs Communication Cable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ADSS Cable High Quality 24 Core Optical Fiber Cable and Good Fiber Optic Cable Price Communication Optic FiberNegotiableMOQ: 1 -
Brother -Y UTP FTP SFTP Lan Cable Cat5 Cat6 Outdoor Utp Network CableNegotiableMOQ: 1
-
Communication Optic Fiber ADSS Cable High Quality 24 Core Optical Fiber Cable and Good Fiber Optic Cable PriceNegotiableMOQ: 1
-
2*18AWG Drop Wire Telephone Cable in TelecommunicationNegotiableMOQ: 1
-
Pull Box of 305m Best Quality UTP CCA/BU/CCU Colored Cat6 Network CableNegotiableMOQ: 1
Armoured multipairs telephone cable 100 pair aerial telephone cable Multi pairs Communication Cable
Detail:
| Model | Multi core Communication Cable |
| Conductor Dimension | 0.37mm/0.40mm/0.50mm, 24AWG |
| Conductor Material | OFC/CCC/CCA/CCS |
| Insulation | 1.Water blocking swellable tape (optional) |
| 2.HD-PE (High density polyethylene) | |
| 1.0mmHD-PE(Highdensity polyethylene) | |
| Number of Twisted Pair | 1~100 pairs |
| Other materials | Polyester Tape/ripcord/Composite A-plastics tape |
| Jacket | PVC (Polyvinyl Chloride)/ LSZH (Low Smoke Zero Halogen)/PE |
| Separator | Mylar Spirally Wrapped |
| Color | different color is available |
| Sheath Type | Meet the LDPE of Rohs standard |
| Reference Standard | UL444,UL1581 |
| Rated Temperature | 60°C,75°C,90°C |
| Operating temperature | -20 ° C - +50 ° C |
| Service Life | 10~15 years |
| Technical Requirements | Meet the standard of TIA/EIA-568B & ISO/IEC 11801 |
Technical characteristics:
| Installation Temperature | Operating temperature | DC Resistance Unbalance | Pair-to-Ground Capacitance Unbalance | Capacitance | Maximum strand pitch | Dielectric Breakdown | Velocity of Propagation | Maximum Skew | |
| 0°C to +60°C | -20°C to +60°C | 5% | 330 pF/100 m | 14pF/ft nominal | 100 mm | 1000 Volts DC Conductor to Conductor | PE=65% | 45ns@100 meters |
Package( Multi pairs Communication Cable ):
1)100m/roll, 200m/roll, 305m/roll. Other lengths available according to client's request.
2)Inner packing: Wooden reel, plastic reel, and paper reel available.
3)Outer packing: Carton box, pull out box, pallet available.
4)Other packing available according to customer's requirements
5)Delivery detail: 7~20 days
