Copper conductor PVC insulated RVV 3 cores Electrical cable wire
(professional manufacture)
The standards
The power cable is mainly complying with IEC 60502 standard, also can be produced according to OEM requirements and other standards, such as BS, DIN, ASTM, VDE, NFC standards, and so on.
The construction of the power cable for different voltage grade
1 low voltage cable power cable
Low voltage (0.6/1 kv)
single core or multi-core
copper or aluminium conductor
pvc inusulation
steel tape armored or galvanized steel wire armored or unarmored
pvc outer sheath
power cable.
2 medium voltage cabel power cable
Voltage grade is up to 35kv,
cross-section area can be up to 1000 sqmm (copper or aluminiun conductor).
Conductor long-time operating temperature is 90 degrees.
In short circuit, conductor highest temperature should be not more than 250 degrees.
1kv-35 kv
multi-cores
copper or aluminium conductor
xlpe insulation
copper tape or copper wire screen
galvanized steel wire armored
pvc or pe sheath
power cable
3 high voltage cable power cable
High voltage (35kv~220kv)
copper or aluminium conductor
xlpe insulation
metal sheath (lead or corrugated aluminium)
hdpe or pvc outer sheath power cable.
Laying conditions: for lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force.
Application:
In domestic areas, for weak mechanical actions, to feed light portable equipment.
For signaling and command.
For home appliances, machine tools, electric tools for power supply.
Core identification: 2core blue, brown
3core green/yellow, blue, brown
4core green/yellow, black, grey, brown
5core green/yellow, black, blue, grey, brown
Model/Size: H03VV-F/H03VVH2-F 23coresX0.5mm2-0.75mm2
H05VV-F/H05VVH2-F 25coresX0.75mm2-2.5mm2
Specification:
RVV 300/500V
Nominal sectionmm2 |
Core Structure no./diamm |
Max. outer dia(mm) |
Conductor resistance at20 Ω/km |
Min.Insulation resistance at 70 Ω·km |
2×0.75 |
24/0.20 |
7.6 |
26.0 |
0.011 |
2×0.75 |
24/0.20 |
5.2×7.6 |
26.0 |
0.011 |
2×1.0 |
32/0.20 |
7.8 |
19.5 |
0.010 |
2×1.5 |
30/0.25 |
8.8 |
13.3 |
0.010 |
2×2.5 |
49/0.25 |
11.0 |
7.98 |
0.0090 |
2×0.75 |
24/0.20 |
8.0 |
26.0 |
0.011 |
3×1.0 |
32/0.20 |
8.4 |
19.5 |
0.010 |
3×1.5 |
30/0.25 |
9.6 |
13.3 |
0.010 |
3×2.5 |
49/0.25 |
11.5 |
7.98 |
0.0090 |
4×0.75 |
24/0.20 |
8.6 |
26.0 |
0.011 |
4×1.0 |
32/0.20 |
9.2 |
19.5 |
0.010 |
4×1.5 |
30/0.25 |
11.0 |
13.3 |
0.010 |
4×2.5 |
49/0.25 |
12.5 |
7.98 |
0.0090 |
5×0.75 |
24/0.20 |
9.4 |
26.0 |
0.011 |
5×1.0 |
32/0.20 |
11.0 |
19.5 |
0.010 |
5×1.5 |
30/0.25 |
12.0 |
13.3 |
0.010 |
5×2.5 |
49/0.25 |
14.0 |
7.98 |
0.0090 |

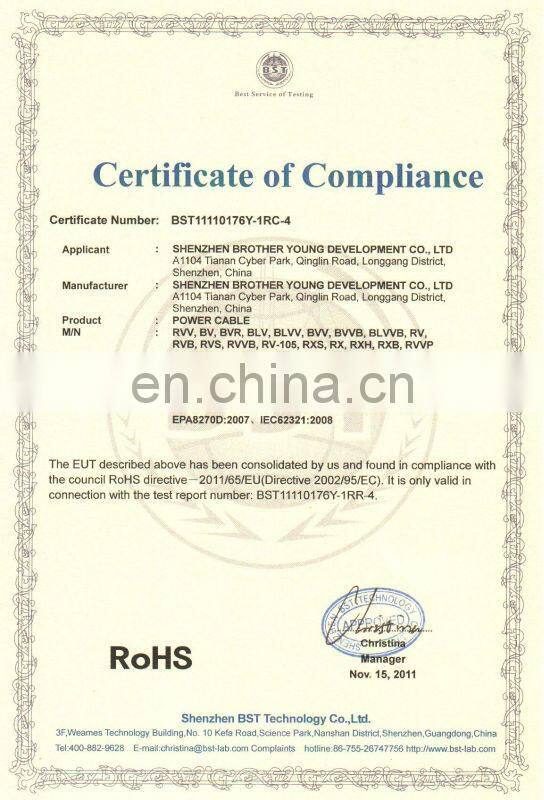

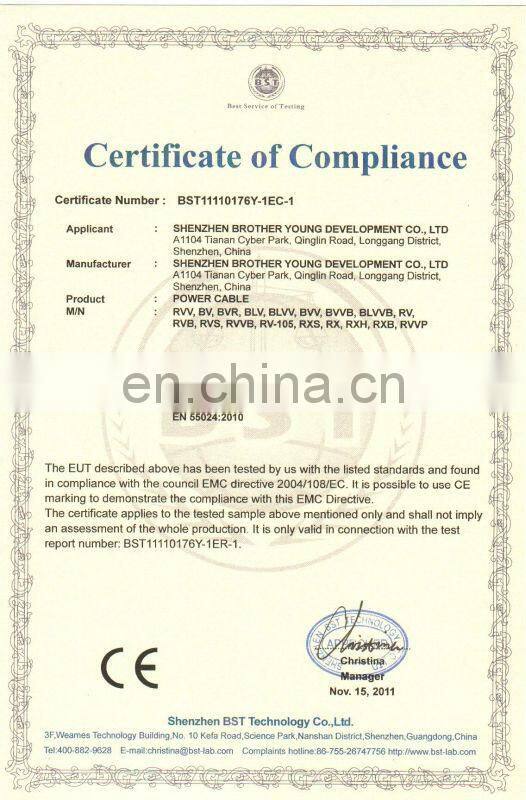

Certificate:
Package:
100M/roll, shrink film wrapping
