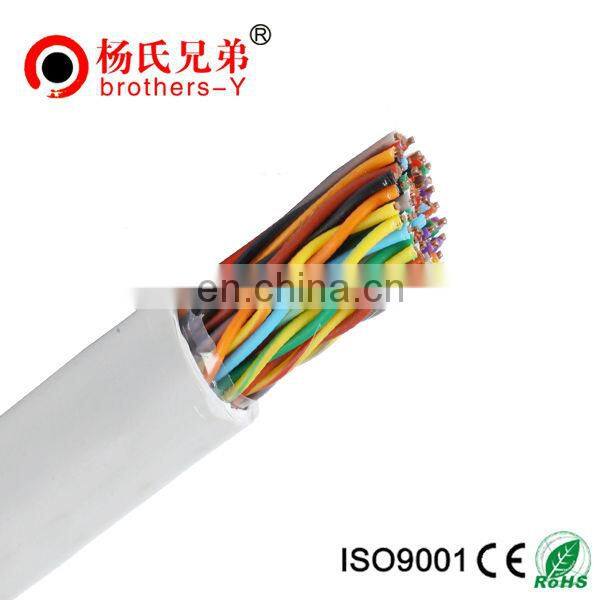

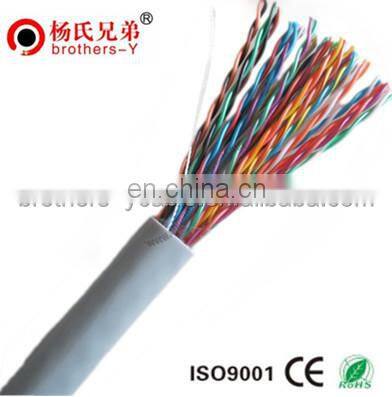

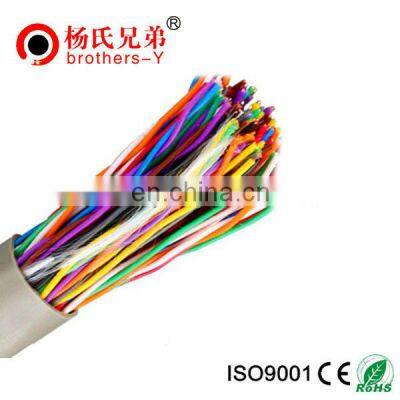

cable r wire 100 pair telephpone cable from shenzhen cable factory

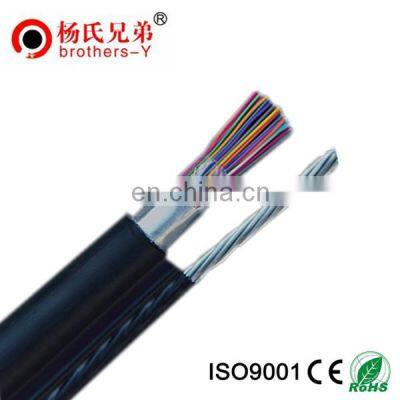

Specification( Aerial telephone cable HYAC cable ):
lid anneal pure copper
2.2-2400 pairs
Conductor: solid bare copper 26 awg
Conductor requirement: 99.99% pure copper
Mechanical properties: elongation 15%
Diameter: 0.4+/- 0.005 mm
Conductor resistance: 148 ohm/km 24awg/26awg (0.4/0.5mm) armoured underground jelly filled telephone cable
Resistance unbalance: <1.5
characteristic impedance: 100+/- 15 ohm
insulation: high density polyethylene (hdpe)
Nom: thickness (mm) 0.19
Nom insulation dia(mm) 0.84
Pair twist
Color (the 25 pairs basic unit)
- white-blue 13. black-breen
- white-orange 14. black-brown
- white-green 15. black-grey
- white-brown 16. yellow-blue
- white-grey 17. yellow-orange
- red-blue 18. yellow-green
- red-orange 19. yellow-brown
- red-green 20. yellow-grey
- red-brown 21. purple-blue
- red-grey 22. purple-orange
- black-blue 23. purple-green
- black-orange 24. purple-brown
25. purple-grey
Pet min thickness(mm) >= 0.04
Al mylar pet-alu-pet
Nom thickness 0.2mm
Inner jacket pe
Color black
Armored double layers steel tape
Outer jacket pe
Color black
Word print rpc cable hyat23 xxx meter
Electrical characteristic 1700 pairs telephone cable
Capacitance unbalance
-pair to pair (individual maximum) 250 pf/km
-pair to ground (individual maximum) 2630 pf/km
-pair to ground (average maximum) 570 pf/km
Insulation resistance => 10000 m ohm/km
Physical properties
-tensile strength minimum of pe insulation 16 mpa
-elongation of insulation => 300%
-cold bend failure maximum of pe insulation 5%
-elongation of jacket => 300%
Our Qualifications:
Company Profile:
Trading Fairs:
CHINA SOURSING FAIR ELECTRONICS & COMPONENTS
GITEX TECHNOLOGY WEEK
CEBIT TURKEY FAIR
ECOC IN LONDON
CONVERGENCE INDIA
CANTON FAIR
HONG KONG FAIR

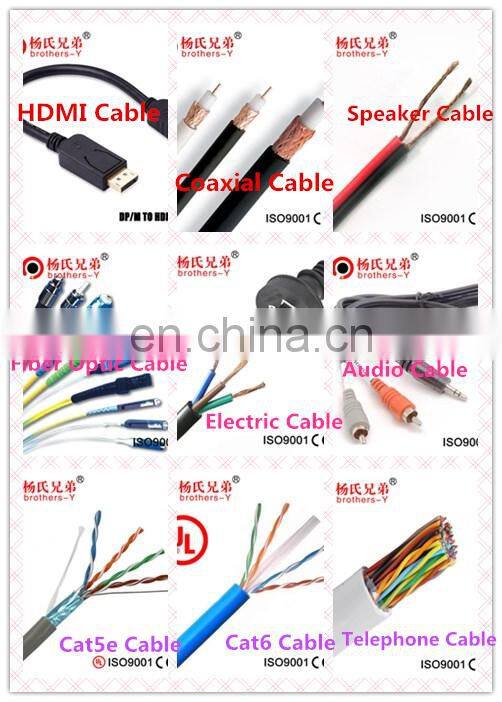

Other Product for Your Choice
