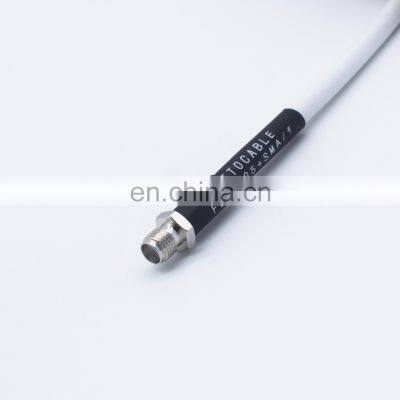

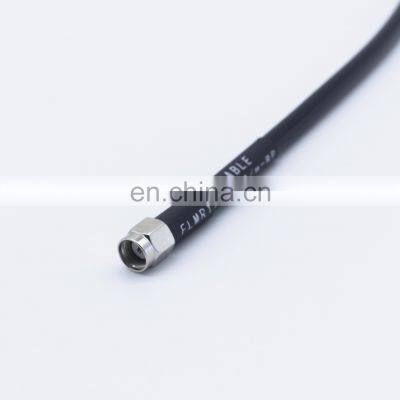

High performance 50Ohm rf coaxial cable LMR-195
- 1000 per Month
- T/T Credit Card
- High performance 50Ohm rf coaxial cable LMR300
- CU/CCS/CCA 50ohm Low Loss LMR 300 PE/PVC/LSZH jacket Coaxial Cable
- CU/CCA/CCS 50Ohm low loss rf cable lmr 300 PE/PVC jacket coaxial communication cable
- Rf Coaxial Cable LMR200 Assemblies High Performance 50ohm 3.66 TC Wire Braid 5.0 PVC/PE/LSZH 3.07 Bonded Aluminum Foil 2.95 FPE
- CU/CCS/CCA 50ohm Low Loss Cable LMR100 PE/PVC/LSZH jackket Coaxial Cable
- High performance 50 Ohm Cable LMR 400 Coaxial cable
Product Description
LMR195
Construction
Item |
Material |
Diameter(mm) |
Remarks |
In-Conductor Dielectric First Shield Second Shield Jacket |
Bare Copper Foam PE Double Bonded Al-Foil TC Wire Braid PVC |
0.94 2.79 2.95 3.53 4.95 |
Per customer’s requirements: Out conductor could be80,96 ,112 or 128 TC wires braiding; Jacket could be PVC,PE or LSZH; |
Electrical Characteristics
Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Screening Effectiveness(db) Voltage With Stand Installation Temp(℃) Operating Temp(℃) |
50±3 83..3 80 ≥20 ≥90 1000.0 -30 to +70 -30 to +70 |
Attenuation (@200C)
Frequency(MHz) |
Max Attenuation(dB/100m) |
150 220 450 900 1500 1800 2000 2500 |
14.6 17.7 25.5 36.5 47.7 52.5 55.4 61.1 |
