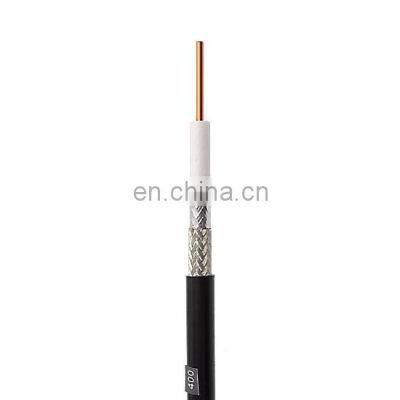

Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > LMR400 Cable Coaxial OTTO Cable LMR400
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality 50Ohm LMR600 CableNegotiableMOQ: 1 -
CU/CCS 50 Ohm Low Loss Quality RF Coaxial Lmr600 Cable PE/PVC/LSZH Coaxial CableNegotiableMOQ: 1
-
High Performance 50Ohm rf Coaxial Cable LMR-195NegotiableMOQ: 1
-
High Performance 50Ohm rf Coaxial Cable LMR300NegotiableMOQ: 1
-
CU/CCS/CCA 50ohm Low Loss LMR 300 PE/PVC/LSZH Jacket Coaxial CableNegotiableMOQ: 1
LMR400
Construction
|
Item |
Material |
Diameter(mm) |
Remarks |
|
Inner Conductor Dielectric First Shield Second Shield Jacket |
Copper Clad Aluminum Foam PE Bonded Aluminum Foil TC Wire Braid PVC |
2.74 7.24 7.39 8.13 10.29 |
|
Electrical Characteristics
|
Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Screening Effectiveness(db) Voltage With Stand Installation Temp(℃) Operating Temp(℃) Bending radius(mm) |
50±3 78.4 85.0 ≥18 ≥90 2000.0 -30 to +70 -30 to +70 Min. 200 |
Attenuation (@200C)
|
Frequency(MHz) |
Max Attenuation(dB/100m) |
|
150 450 900 1500 1800 2000 2500 |
5.0 8.9 12.8 16.8 18.6 19.6 2.2 |
