Hydraulic Hand Pump GE Druck Pv212 700psi

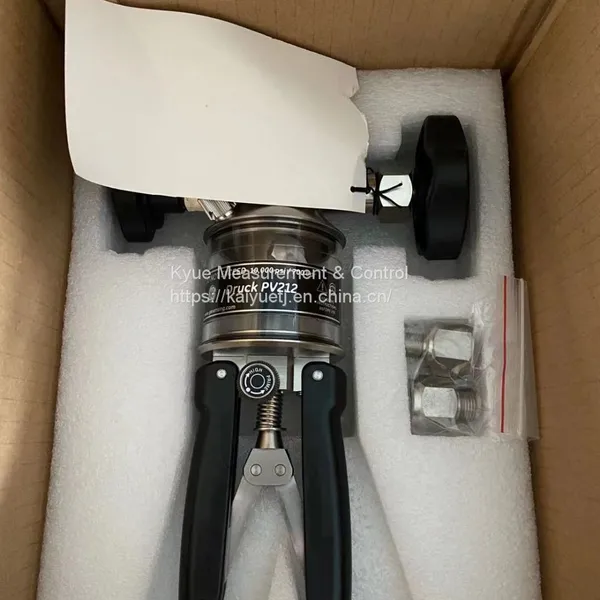

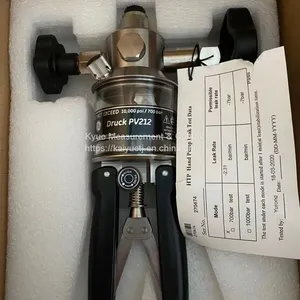

Hydraulic Hand Pump GE Druck Pv212 700psi photo-1
Hydraulic Hand Pump GE Druck Pv212 700psi photo-2
Hydraulic Hand Pump GE Druck Pv212 700psi photo-3
Hydraulic Hand Pump GE Druck Pv212 700psi photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GE druck
Place of Origin:
United Kingdom
Model Number:
pv212
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
56 days
Brand Name GE druck
Place of Origin United Kingdom
Model Number pv212

Druck hydraulic hand pump

PV212

The PV212 is a high quality hand pump designed to quickly  and easily generate hydraulic pressures. The materials of    construction make it compatible with most fluid media and an optional seal kit can be supplied for many applications. The built-in vernier provides excellent control and is easy to adjust even at high pressures.

The dual stage pump includes a selector valve which          increases the priming speed and greatly reduces the effort required to generate high pressures. An optional pressure  relief valve can be supplied to provide protection to            connected instruments (Included in 104 and 104S test kits).

Features

•  Pressures to 700 bar (10,000 psi) or 1,000 bar (15,000 psi)

•  Compatible with distilled water or mineral oil

•  Quick priming and pressure generation

•  Hydraulic pressure sources for pressures up to 1,000 bar (15,000 psi)

•  100 CC transparent reservoir which can be filled during operation

•  Vernier adjust for fine control

•  Optional pressure release valves offers outstanding control for decreasing pressures



PV212 specifications

(See Page 4 for ordering information)

General

Pressure ranges

PV212-22: 0 to 700 bar (0 to 10,000 psi)

PV212-23: 0 to 1000 bar (0 to 15,000 psi)

Materials

Series 300 stainless steel, brass, nickel plated brass,

polyester, nitrile, polyurethane and PTFE

Fluid media

Mineral oil, distilled water

Dimensions (L x W x D)

23 cm x 16 cm x 7 cm (9 in. x 6.25 in. x 2.75 in.)

Weight

Approximately 1.6 kg (3.5 lb).
