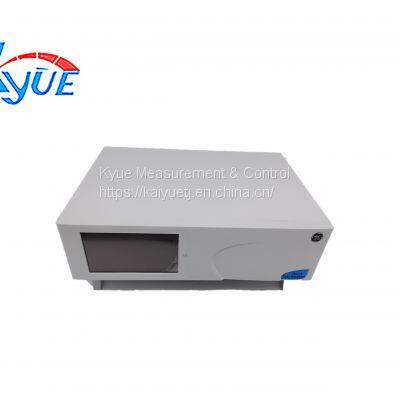

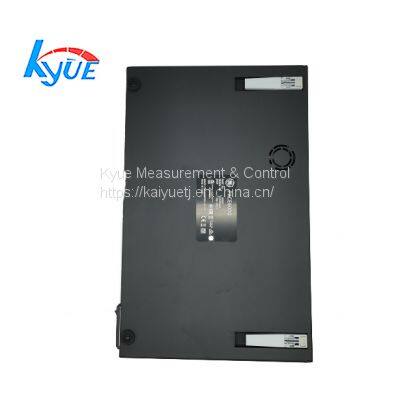

PACE Modular Pressure Controller
A new generation of high precision Druck pressure controller, designed for test bench, bench top and rack mount calibration, and automated test applications.
Modularity increases user flexibility, reduces downtime and lowers overall cost of ownership
Features
• Selection of Chassis and interchangeable control modules • Single, dual or auto range control module configurations
• High speed pressure control
• Up to 210 bar (3000 psi/21 MPa) gauge and absolute
• Precision to 0.001% FS over calibrated temperature range
• Accuracy 0.0016% Rdg (+0.0033% FS)
• Long-term stability to 0.0025% FS per annum
• Barometric reference option
• Utilises Druck’s new unique range of piezo-resistive and TERPS pressure sensor technology
• 28 selectable pressure units and 4 user defined units
• Switch Test, Leak Test, Test Program, Burst Test, Analogue output and Volt Free Contact options
• Aeronautical option
• Negative gauge calibration included as standard
• High resolution colour touch screen operation
• Intuitive icon task driven menu structure
• Compatible with software packages
• RS232, IEEE connectivity, Ethernet and USB as standard
