PV211
Druck pneumatic pressure and vacuum pump
Features
• Pressures to 600 psi (0 to 40 bar)
• Vacuum to 28.5 inHg (0 to -900 mbar)
• High pneumatic pressure generation with minimal effort
• Precision vernier control

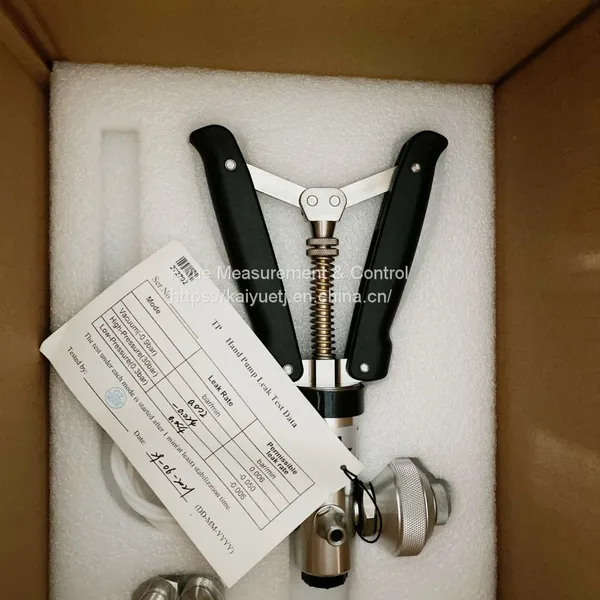

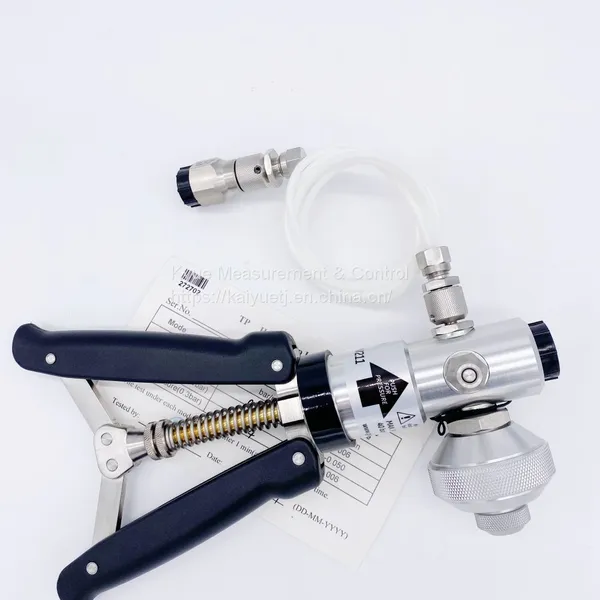

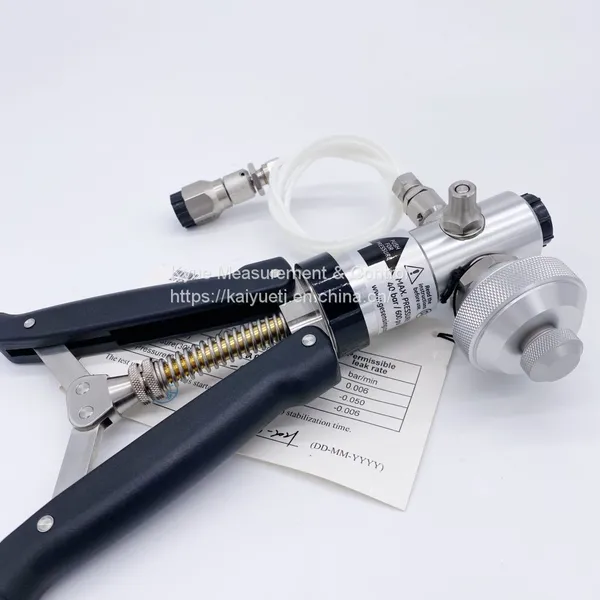

The field proven PV211 is a lightweight yet high quality combined pressure and vacuum hand pump. The PV211 has been designed to provide maximum pneumatic pressures efficiently and effortlessly.
• Dual source of pneumatic pressure and vacuum
• Built-in fine adjust vernier
• Needle valve provides controlled pressure release
• Selector valve for vacuum or pressure generation
• Comfortable, ergonomically designed molded handles
• Adjustable stroke
• Extremely efficient_only four strokes to 100 psi (7 bar)
PV211 specifications
General
Ranges
Pressure 0 to 600 psi (0 to 40 bar)
Vacuum 0 to 28.5 inHg (0 to -900 mbar)
Materials
Nickel-plated brass, anodized aluminum, phosphorus, bronze (springs), nitrile, nylon
Dimensions (l x w x d)
8.5 in x 4 in x 2.5 in (220 mm x 105 mm x 63 mm)
Weight
1 lb (650 g)
Test kits
Complete test kits can be ordered as individual items will:
PV211-P
Pneumatic test kit, contains:
• PV211 hand pump with operating instructions
• PV211-TC: Robust, lightweight hard-shell case with foam trays and nylon sealing kit
PV-BSP-QF
• Set of quick connectors made of nickel-plated brass
• Adapted to G1/8, G1/4, G3/8 and G1/2 internal threads as well as on G1/8 and G1/4 male threads
• One adapter each, G1/4 external thread to G1/4
• External thread and G1/8 external thread
