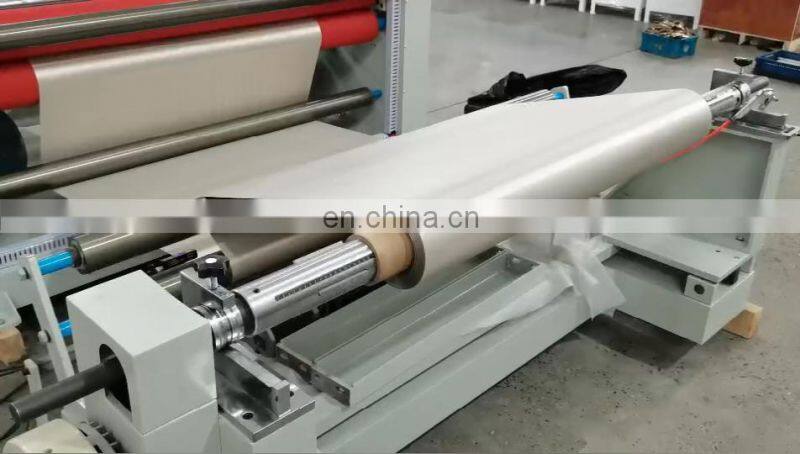

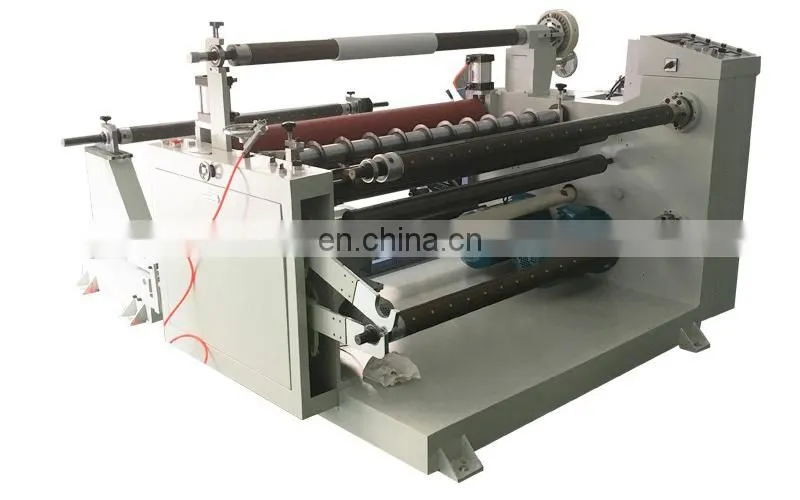

1300mm Automatic Slitting and Rewinding Machine Film Slitter

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

1300mm automatic slitting and rewinding machine film

Product Description

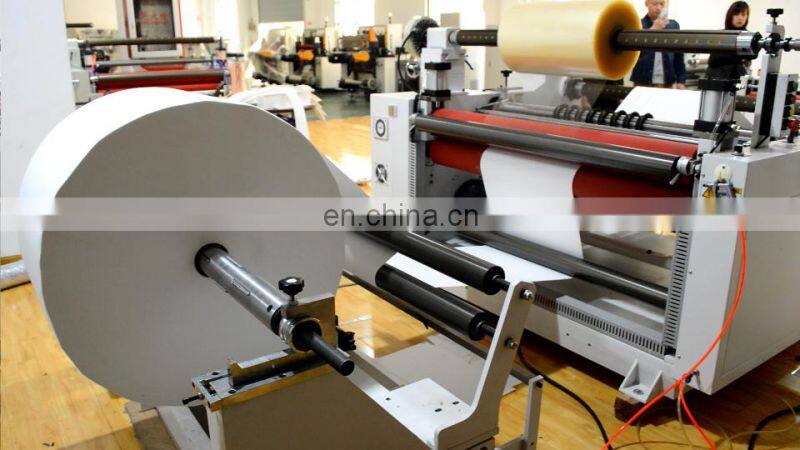

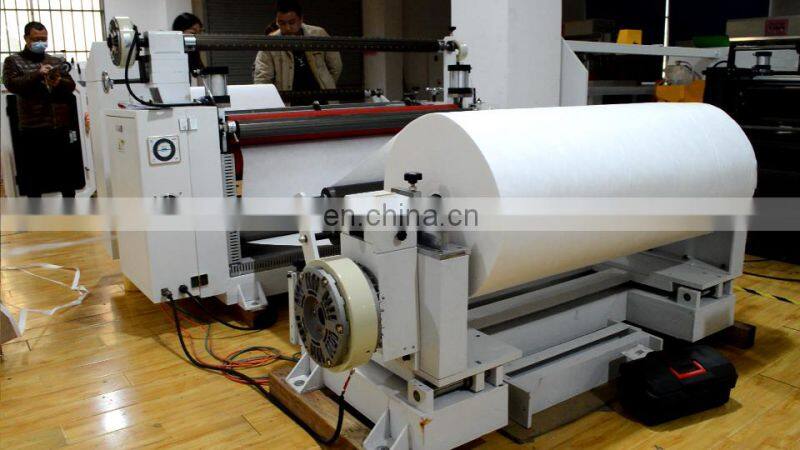

1.Unwinding unit

Name: Unwinding air shaft

Material : air shaft

Original: China

The unwind station is composed of one station for the axial unwinding of the logs.

This unit is equipped with one pneumatic shaft and the pneumatic brake is magnetic tension controlled.

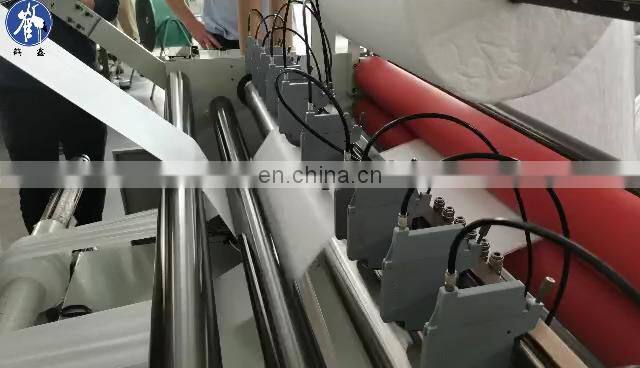

2.EPC system

Name: Electronic photo cell
Original: China

Usage :
These electrical photo cell is used to guide the non neat material .make sure the slitting effect is good .

The photo eyes focus on the edge of material ,you can choose to use single eye or double eyes .

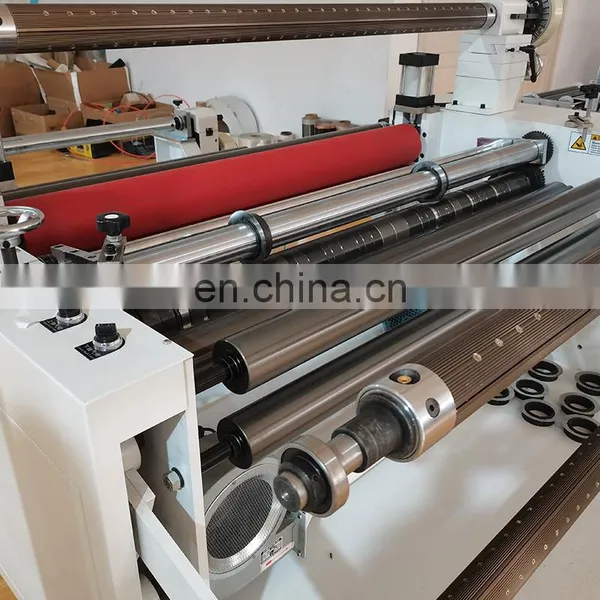

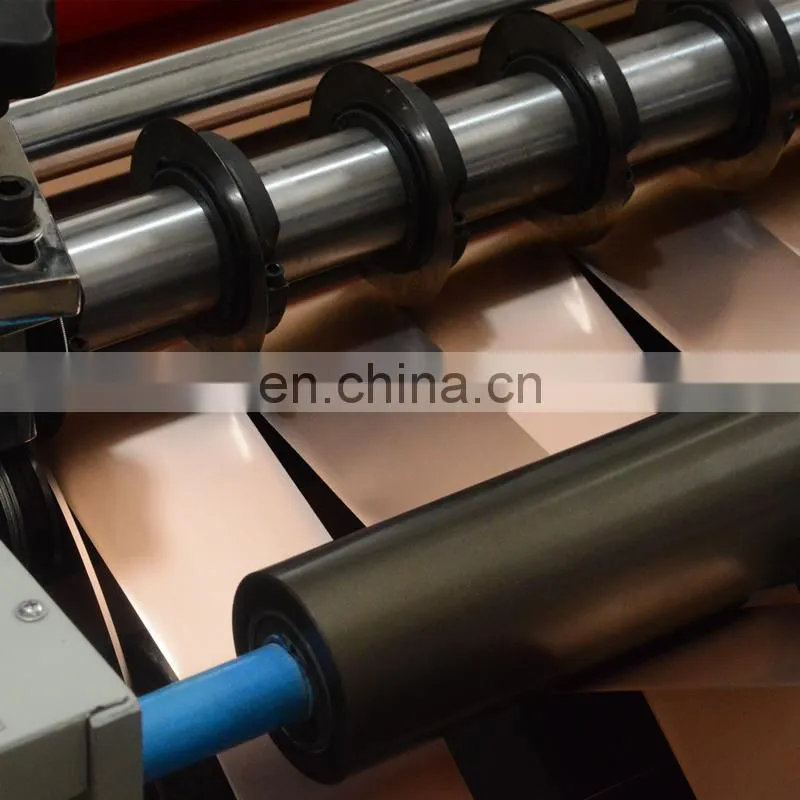

3.Slitting unit

Name: Slitting blades
Material : 9GrSi
Original: China
This machine is standard equipped with 8 sets of slitting blades ,The minimum slitting width is 20 MM ,

if you want to slit smaller width ,you can customize self-locking knives . It's easy to adjust the slitting width based on your products .

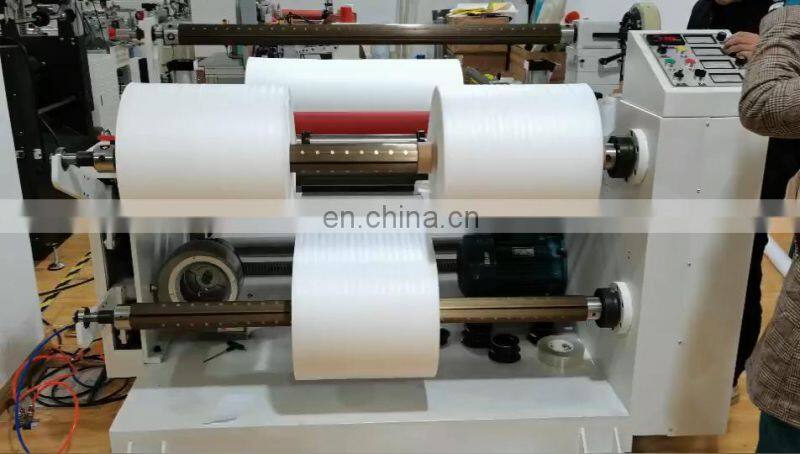

4.Rewinding unit

Name: rewinding air shafts
Original: China
It's inflatable by air compressor ,convenient to upload and discharge the material ,two rewind stations are designed

to rewind the finished log up to 450 mm in outside diameter.

This unit is equipped with two pneumatic shaft and two magnetic clutch .

specifications:

Model	HX-1300FQ
Max feeding width	1300mm(max)
Main Engineer Power	6Kw
Speed	90m/min
Machine Size	240023001600mm
Machine Weight	1500kg
Max.Unwinding diameter	800mm
Max.rewinding diameter	450mm
Precision	+-0.1mm
Power	380V 50Hz

Featuress :

©Laminating function

©EPC (edge positioning control) device:Ultrasonic sensor

©Waste discharge function

©Magnetic brake and clutch

©Length counting function, automatically stop after it reaches the length you set.

Application:

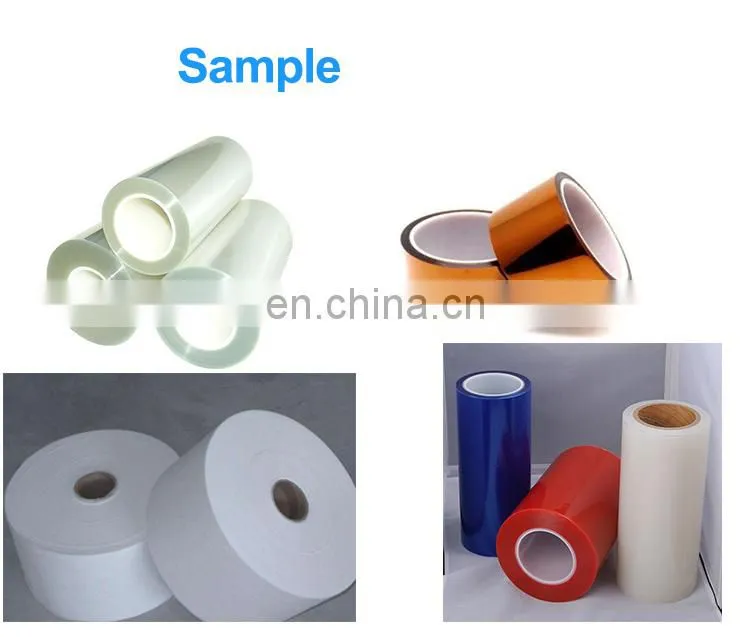

It is applicable for slitting industrial tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, 3C, leather, garment, plastic, etc.

According to the width of your material and slitting needs, we can recommend suitable slitter.

HX-320FQ for Max 320mm width material slitting.

HX-550FQ for Max 550mm width material slitting.

HX-650FQ for Max 650mm width material slitting.

Our company

About Us

We are a team of industry professionals with strong backgrounds in cutting, die cutting, slitting, laminating

and rolling. Other related machines in our fields can be customized based on your specific requirements.

Kunshan Hexin Precise Machinery is located in Kunshan city,Jiangsu province. We are near

Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train.

Established in 2007, we have been dedicated on converting machines which are used before and after

printing for over 10 years.

Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers

reliable products, perfect service.Our products are widely applied in laminating, slitting and die cutting

for shield materials, sticky materials, insulating materials, conductive materials, electronic materials.

Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.
