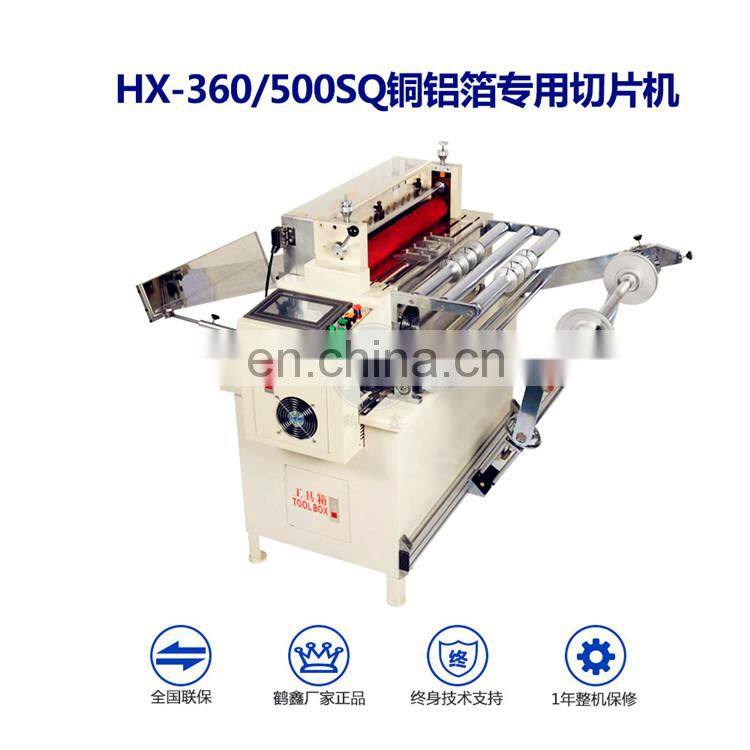

Non Woven Fabric Roll Cutting Machine With Rack
Main Technical Parameter:
|
Model |
HX-500SQ |
|
Cutting Length |
0.1~9999.9mm |
|
Cutting Width |
1~500mm |
|
Power |
1.5HP |
|
Voltage |
220V/380V |
|
N.W./ GW. |
270/290kg |
|
Measurement |
980x1340x1070mm |
Features:
1. The max width: 500mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
4. Kiss cut or cut through available
5. Under CE and ISO Certifications
6. Warranty for machine: 12months
7. Delivery time: 1-3days
8. Hot cut or cold cut available
9. Cut through for standard machine
10. Kiss cut is for optional
Characteristics:
1. This machine employs man-machine + PLC system equipped with pneumatic device, with elevating type material rack
2. Material to be cut aligns the material inlet, and the material won't be bent and damaged
3. The cutting length is accurate.
4. Operation is easy.
5. Waste rate is low.
6. Manufacturing experience: 30 years
7. Export experience: 20 years
Application: This machine is designed for the material which bending mark should be avoided.
After-service:
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
Material rack
Control panel
