Main Technical Parameter for aluminium sheet cutting machine :
|
Model |
HX-360X+Y |
|
Voltage |
220V/380V |
|
Power |
1HP |
|
N.W. |
220kg |
|
G.W. |
240kg |
|
Cutting Length |
0.1~9999.9mm |
|
Cutting Width |
1~350mm |
|
Measurement |
840x910x1150mm |
Features for aluminium sheet cutting machine :
1. The max width: 360mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
4. Kiss cut or cut through available
5. Under CE and ISO Certifications
6. Warranty for machine: 12months
7. Delivery time: 1-3days
Characteristics for aluminium sheet cutting machine :
1. This machine employs microcomputer controller with the same basic cutting function as HX-360/500, has an extensional function to cut square shape.
2. The cutting length and width is accurate.
3. Operation is easy.
4. Waste rate is low.
5. Manufacturing experience: 30 years
6. Export experience: 20 years
Application for aluminium sheet cutting machine :
Sizing cutting for a variety of material (mat/cushion, silicon rubber, conductive fabric, foam, diffuser, reflector film, double-sided adhensive tape, nickel plate, PET, PC, PE insulation paper copper/aluminum foil and all kinds of adhensive tapes) and X+Y square.

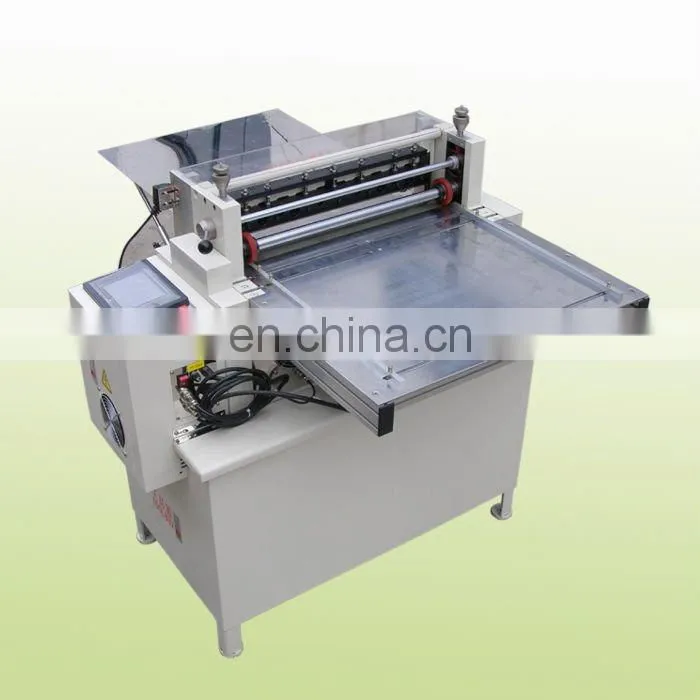

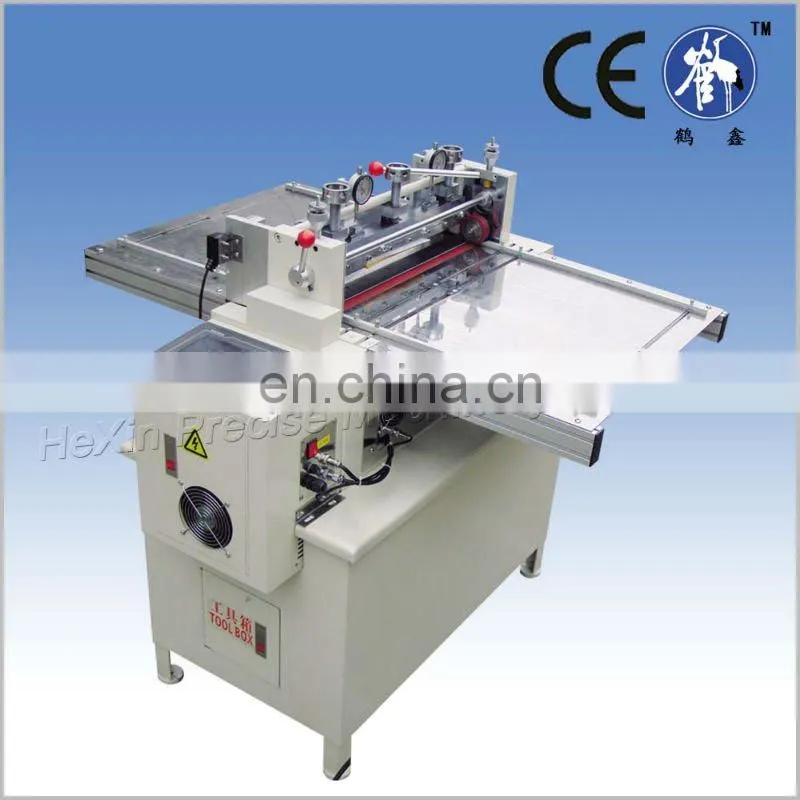

Details pictures for aluminium sheet cutting machine
Our packing for aluminium sheet cutting machine is plywood case
After-sale service for aluminium sheet cutting machine
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training in factory before delivering machines
4.If our machines can't well meet your requirment ,we support customized machine .
Brief Introduction
Kunshan Hexin precise machinery co. Ltd is located in Kunshan city, Jiangsu province, it’s only 40 minutes' away from Shanghai Hongqiao airport by car,
and 18 minutes' away from Shanghai railway station by high-speed rail. The
traffic is very convenient.
We are specialized in developing, manufacturing, marketing and exporting
microcomputer belt cutting machines, slitting machines, laminating machines, high precision die cutting machines. With strong
technology, international quality control system and perfect after sale service, our products enjoy a good reputation both at home and aboard market.
with Japanese advanced design drawing and manufacturing technology,
our machines have come up to the leading levels after continuous improvement for many years, especially in mechanical and electrical, gas and liquid fields. We own professional technical staffs, engineers, sales and after-service
employees who constitute a young and well-qualified team. Our belief is
"people-oriented, technology-first, integrity-centered and brand idea" and we will provide all our customers with reliable products, perfect service in order to create a brilliant future together.
Our products are widely applied in laminating, slitting and die cutting for
protective materials, sticky materials, insulating materials, conductive materials, electronic materials, printing materials and so on, and SE for strings, strips, sheets, ropes, lines, belts, rolls, plates ,tubes, fibre , rubber,
PET, PVC, PC, metal foils, etc. Our machines can process all kinds of sheet materials, roll materials and so on.
Our factory
workshop for aluminium sheet cutting machine
The samples which use our machines to produce
Our products on Shanghai Expo
Customers Visiting our Factory
If you coming to visit our factory ,you will be warmly welcomed .
CE Certification
Our machines meet CE requirement . Conform to the safety, health, environmental protection and consumer protection, and a series of European directives to express requirements . For our products ,please rested assured .
Letter of Patent for aluminium sheet cutting machine
Utility Model Patent Certificate .Thirty years of production experience ,we spent a great deal of time to research new products ,won a number of utility model patent certificates .Some of our product are world first .
1. Q: Are you a factory or trading company?
A: We are a factory and manufacturer
2. Q: Where is your factory located in ? How can I visit there?
A: Our factory is located in Kunshan which is very near from Shanghai, and
our detailed address is: Factory 9, No. 157, Wulian Road, Yushan Town,
Kunshan, Suzhou, Jiangsu, China. If you fly to Shanghai hongqiao airport
or Pudong airport, we can pick you up by car from there. We welcome all our clients, home and abroad, to visit us.
3. Q: what are your main products?
A: Our main products are belt cutting machines, slitting machines, sheeting
machines, laminating machines and rotary die cutting machines.
4.Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slit,
laminate, rotary die cut raw materials can use our machines.
5.Q: How to control the quality in your factory ?
A: Quality is priority. We control the quality of our products strictly, from the
incoming materials to the finished products. Our factory has obtained
CE & ISO Certification
6. Q:If there are no machines available from your list, could we customize
non-standard machines from you ?
A: Yes, we have our own professional design engineers, and can customize
products according to your requirement.
