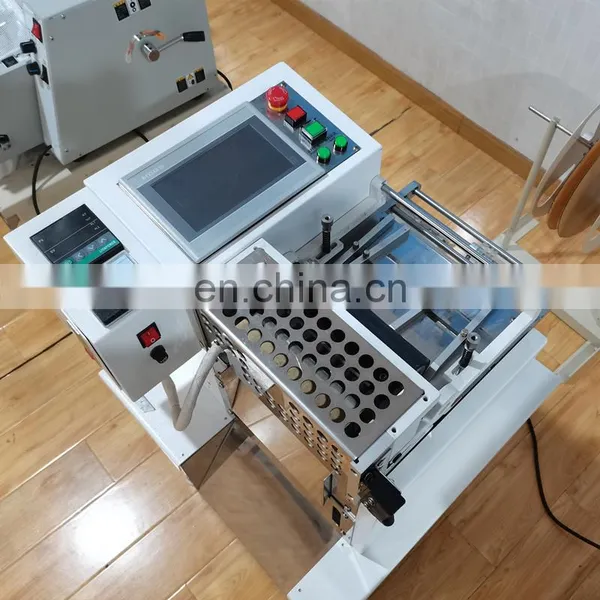

Automatic Nonwoven Sheet Cutting Machine Manufacturer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Kiss Cut Aluminum Copper Foil Cutting MachineNegotiableMOQ: 1 -
High Speed Automatic Cold Cutting Machine for Rubber /hose/ TubeNegotiableMOQ: 1
-
Perfectly Working Speed Aluminum Copper Foil Slitting Cutting MachineNegotiableMOQ: 1
-
Medical Gauze Slitting Machine Cutting MachineNegotiableMOQ: 1
-
Non Woven Fabric Roll Cutting Machine With RackNegotiableMOQ: 1
Product Overview
This machine adopts microcomputer numerical control device to set the cutting length. The model design conforms to the ergonomic operation principle and is easy to operate. Use: This machine is suitable for cutting hook and loop fasteners, cotton yarn tapes,elastic tapes, plastic bags, zippers, sleeves, papers, cables, metal sheets, etc.
achine Parts
Name: Hot cutting blade with heating copper . Material : SKH-51
Original: Japan Lifetime : About 20 Million times cuts .
Scissor-type cutting blade, durable with highest hardness 65 HRC .Easy to adjust ,sharp ,maintain,and change .
Warranty : Nope , consumable parts are not included .
Main Features Name: Rubber Feeding roller
Material: Rubber Original: China
The rubber roll is connected with servo motor , which could feed material with high precision ,reach +/-0.1 mm .
Name: Hot cutting blade with heating copper . Material : SKH-51
Original: Japan Lifetime : About 20 Million times cuts .
Scissor-type cutting blade, durable with highest hardness 65 HRC .Easy to adjust ,sharp ,maintain,and change .
Warranty : Nope , consumable parts are not included .
Main Features Name: Rubber Feeding roller
Material: Rubber Original: China
The rubber roll is connected with servo motor , which could feed material with high precision ,reach +/-0.1 mm .
Name: Web guiding bars Material : Aluminum
Original: China
It can leads your material passing in straight way to the feeding roller ,make sure your products are in right angle .
Several strips cutting at same time are available too . Optional part
Name: Cold cutting blade Material : SKH-51
Original: Japan
This unit can finish cold full cutting function .Scissor-type cutting blade, durable with highest hardness 65 HRC .Easy to adjust and maintain .
Original: China
It can leads your material passing in straight way to the feeding roller ,make sure your products are in right angle .
Several strips cutting at same time are available too . Optional part
Name: Cold cutting blade Material : SKH-51
Original: Japan
This unit can finish cold full cutting function .Scissor-type cutting blade, durable with highest hardness 65 HRC .Easy to adjust and maintain .
©Taiwan Brand Servo motor & Japan brand PLC applied
©Roll to sheet cutting, max. web width 160mm
©Touch screen with the ability to save parameters
©Cutting Length adjustable, max. cutting length can be customized
©Cutting tolerance can be +/-0.1mm based on materials.
©Cutting edge can be sealed perfectly without any burrs.
©Cutting temperature(max. temperature 680℃) can be adjustable based on different materials.
©Cutting length and cutting speed adjustable.
©Roll to sheet cutting, max. web width 160mm
©Touch screen with the ability to save parameters
©Cutting Length adjustable, max. cutting length can be customized
©Cutting tolerance can be +/-0.1mm based on materials.
©Cutting edge can be sealed perfectly without any burrs.
©Cutting temperature(max. temperature 680℃) can be adjustable based on different materials.
©Cutting length and cutting speed adjustable.
every detail is strictly for your conveniencetrust more because of quality
01 computer control
use microcomputer numerical control device to set cutting length
02 reasonable design
model design accords with ergonomic operation principle
01 computer control
use microcomputer numerical control device to set cutting length
02 reasonable design
model design accords with ergonomic operation principle
03 easy to operate
the machine adopts fully automatic design, convenient and time saving
04 flexible control
the cutting knife is attached with a heating device,which can heat and consolidate the webbing incision without generating burrs
the machine adopts fully automatic design, convenient and time saving
04 flexible control
the cutting knife is attached with a heating device,which can heat and consolidate the webbing incision without generating burrs
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Model |
HX-160A |
Voltage |
220V |
Total Power |
1.65KW |
N.W. |
90kg |
G.W. |
140kg |
Cutting Width |
1-160mm |
Cutting Length |
0.1-9999.9mm |
Packing size |
600x600x1150mm |
Max.Heating temperature |
680℃ |
