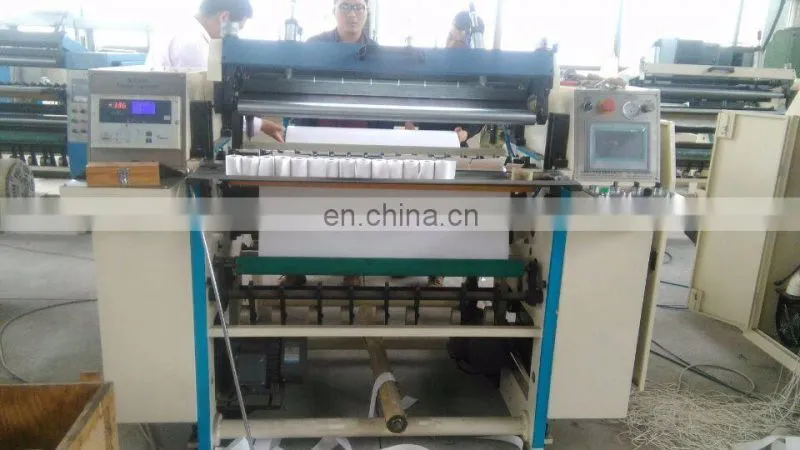

Good Tension Thermal Paper Cutting Slitting Machine
|
Model |
HX-700FQ |
|
Max Feeding Width |
700mm |
|
Main Engineer Power |
2.2kw |
|
Speed |
180m/min |
|
Size |
2400x1700x1300mm |
|
Weight |
1000kg |
|
Rewinding Diameter |
600mm |
|
Winding Diameter |
450mm |
|
Precision |
±0.1mm |
|
Power |
220V 50HZ |
1. The max width: 1300mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 30years
8. Export experience: 20years
1.This machine is thermal paper slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and receiving materials.

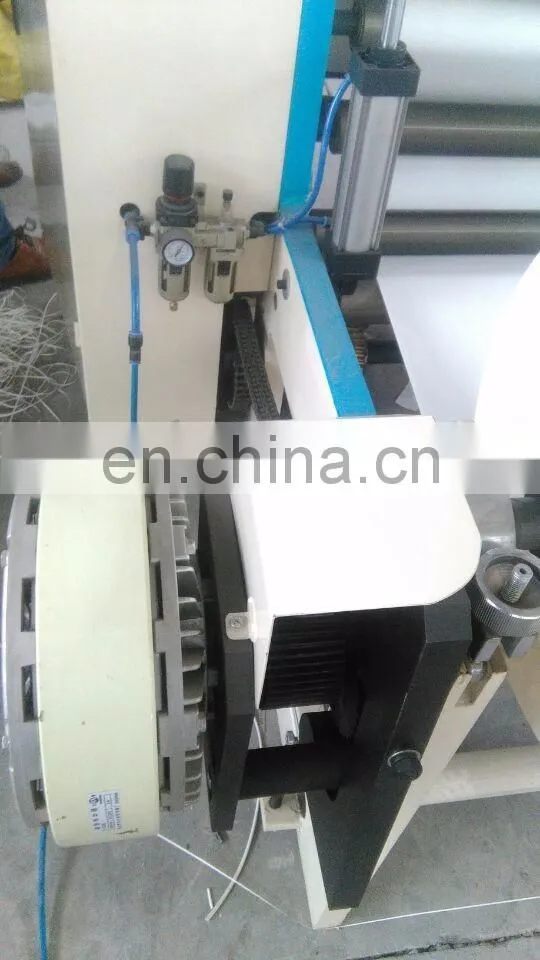

2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines.
.
photoelectricity marking sensor
motor

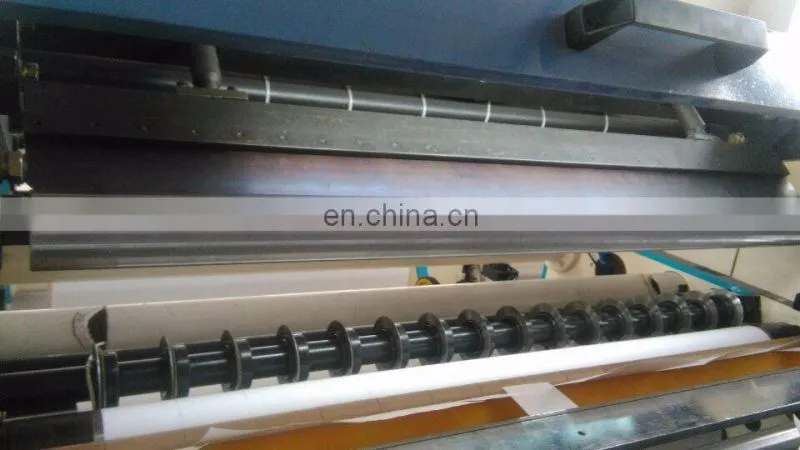

slitting knife
