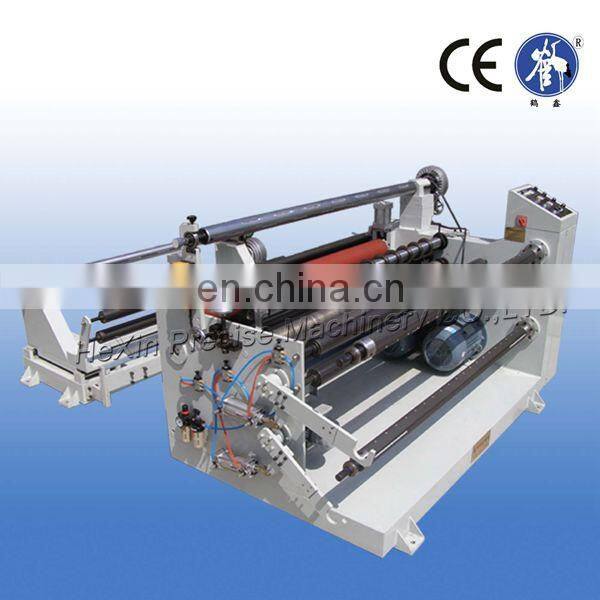

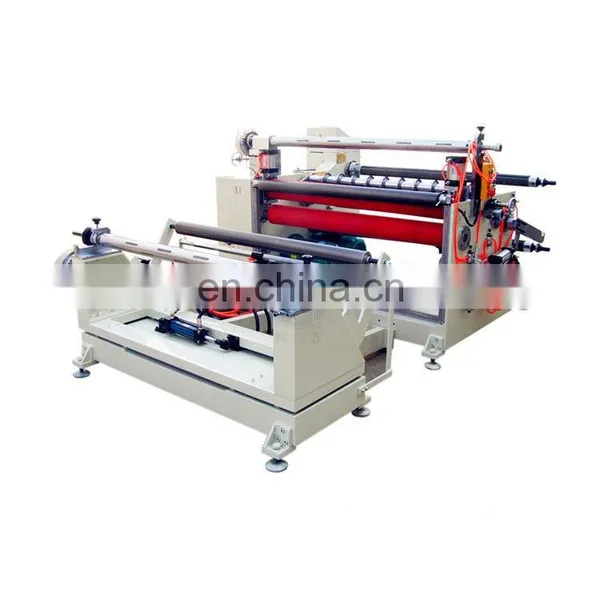

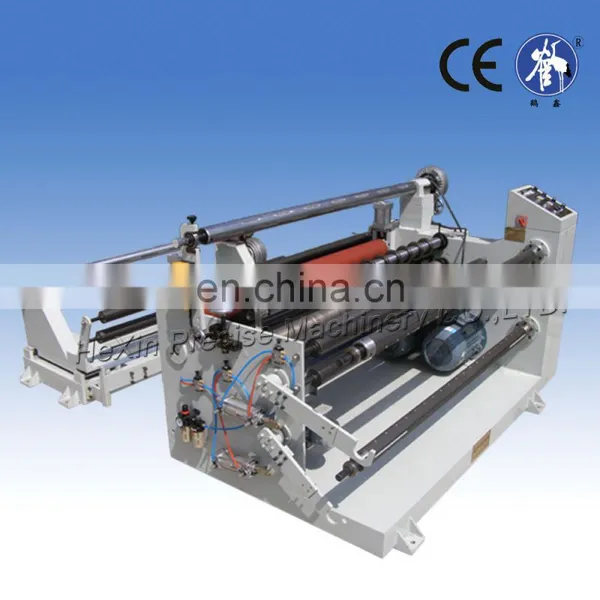

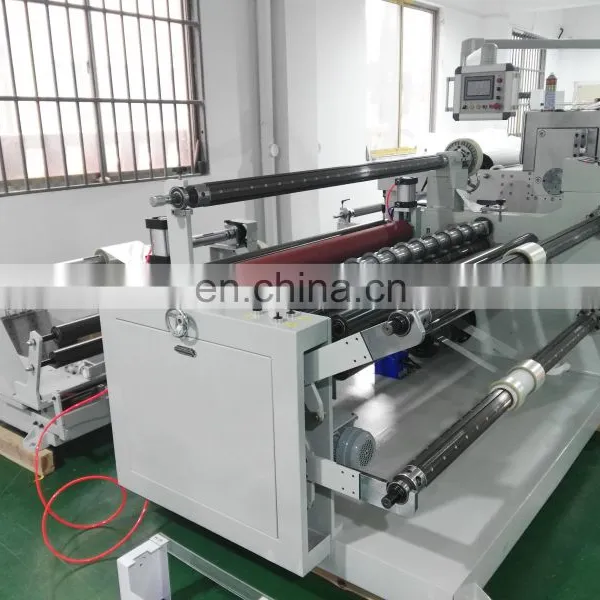

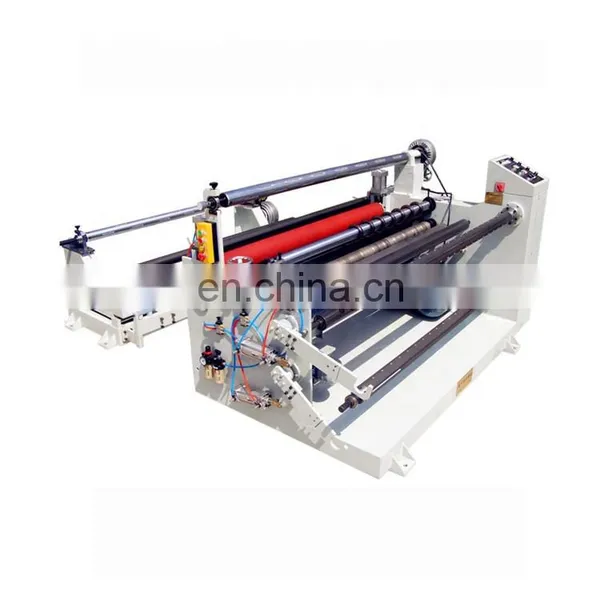

Fully automatic wallpaper cutting machine
Video for this wallpaper cutting machine :
/v_show/id_XODI0NDUwODky.html
There are two models of this wallpaper cutting machine for your reference:
|
Model |
HX-1300 |
HX-1600 |
|
Max feeding Width |
1300mm |
1600mm |
|
Main Engineer Power |
6kw |
6kw |
|
Speed |
80m/min |
80m/min |
|
Size |
2400*2000*1300mm |
2400*2300*1600mm |
|
Weight |
1200kg |
1500kg |
|
Unwinding Diameter |
600mm |
800mm |
|
Winding Diameter |
450mm |
450mm |
|
Precision |
±0.1mm |
±0.1mm |
|
Power |
380v 50hz |
380v 50hz |
1. Max feeding width: 1300mm;
2. Min slitting width: 8-25mm;
3. Material thickness range: 0.05-3mm;
4. Tolerance: 0.2mm, Precision: 0.1mm;
5. The speed: 80m/min;
6. This wallpaper cutting machine is a slitting equipment of high precision and high sensitivity, with air shafts to feed and receive materials;
7. Imported magnetic powder clutch is adopted to control the tension;
8. Imported gas sensitive device is adopted to detect rectification, with fully automatic hydraulic rectification control;
9. Automatic detection, rectification and metering can be realized;
10. It is characterized to be accurate and fast slitting, easy operation and maintenance;
11. Holding CE and ISO certifications;
12. Manufacturer experience: 10 years;
13. Export experience: 5 years.
1. This wallpaper cutting machine is applied in slitting of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This wallpaper cutting machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
1. Warranty for machine: 12months;
2. A reply within 24 hours;
3. A free training in our factory before delivering.
Details of this wallpaper cutting machine :
Rectification controller

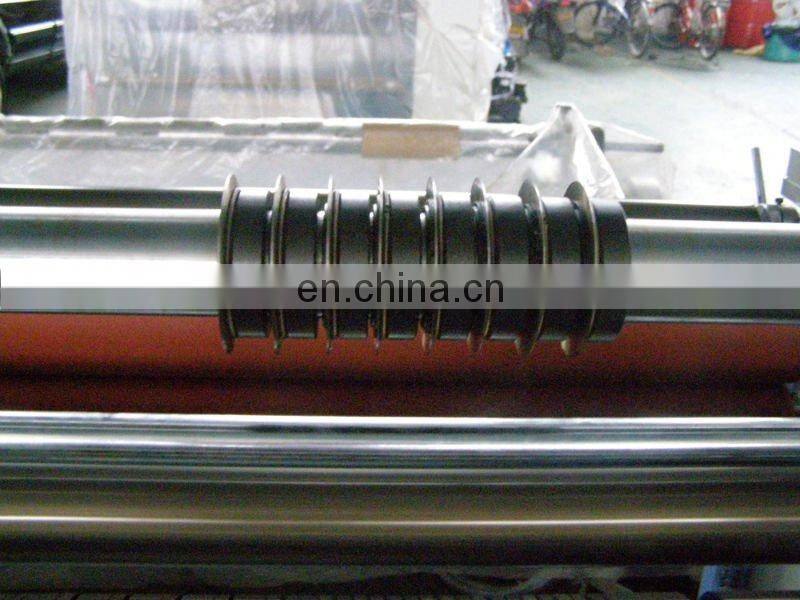

Slitting knife

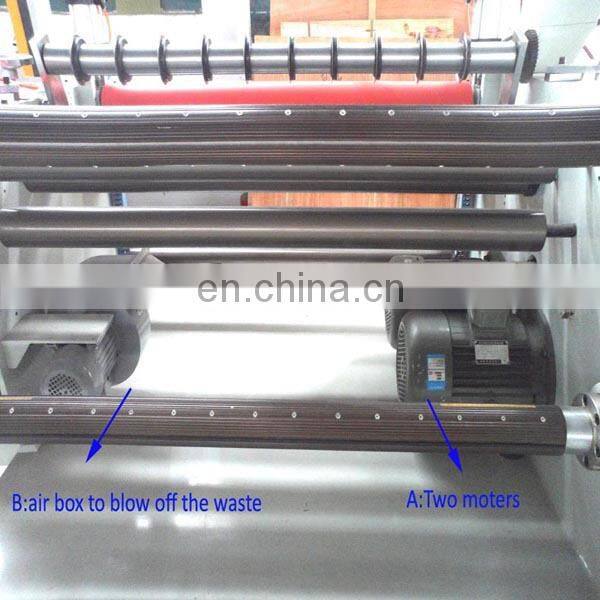

Air box and motors

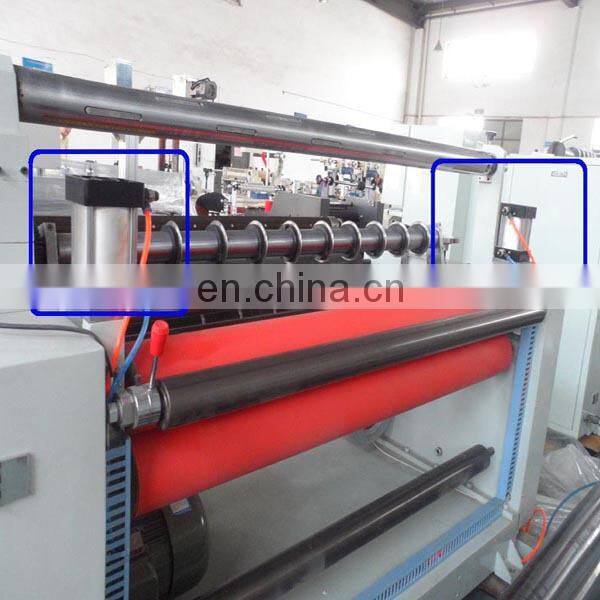

Air cylinders

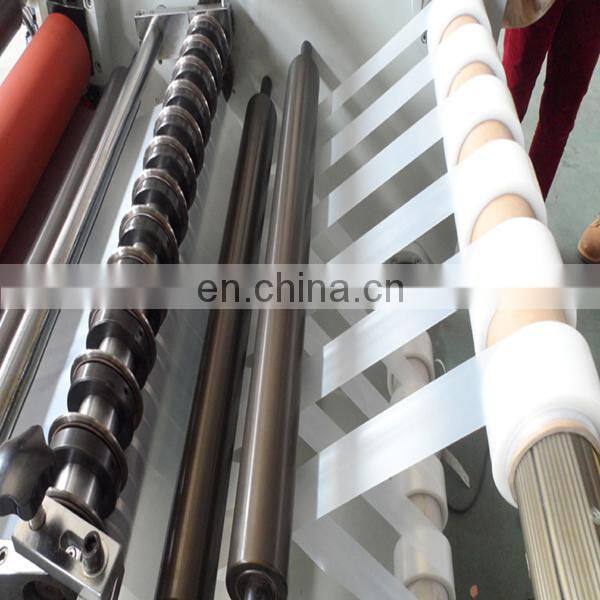

Rewinding
Packing:
1.Q: Are you a manufacturer or trading company?
A: We are a manufacturer.
2.Q: Where is your factory located in? How can I get there?
A: Our factory is located in Kunshan which is very near from Shanghai, and our detailed address is: Factory 9, No. 157, Wulian Road, Yushan Town, Kunshan, Suzhou, Jiangsu, China. If you fly to Shanghai Hongqiao Airport or Pudong Airport, we can pick you up by car from there. we welcome all our clients form home and abroad to visit us.
3.Q: What are your main procducts?
A: Our main products are belt cutting machines, slitting machines, sheeting machines, laminating machines and die cutting machines.
4.Q:Which industries can use your machines?
A: All industries need to cut(including full-cutting and kiss-cutting), slit, laminate, die cut materials can use our machines.
5.Q: How to control the qualith in your factory?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE and ISO certifications.
6. Q: If there are no machines available from your list, could we customize non-standard machines from you?
A: Yes, we have our own professional design engineers, and can customize products according to your requirements.
