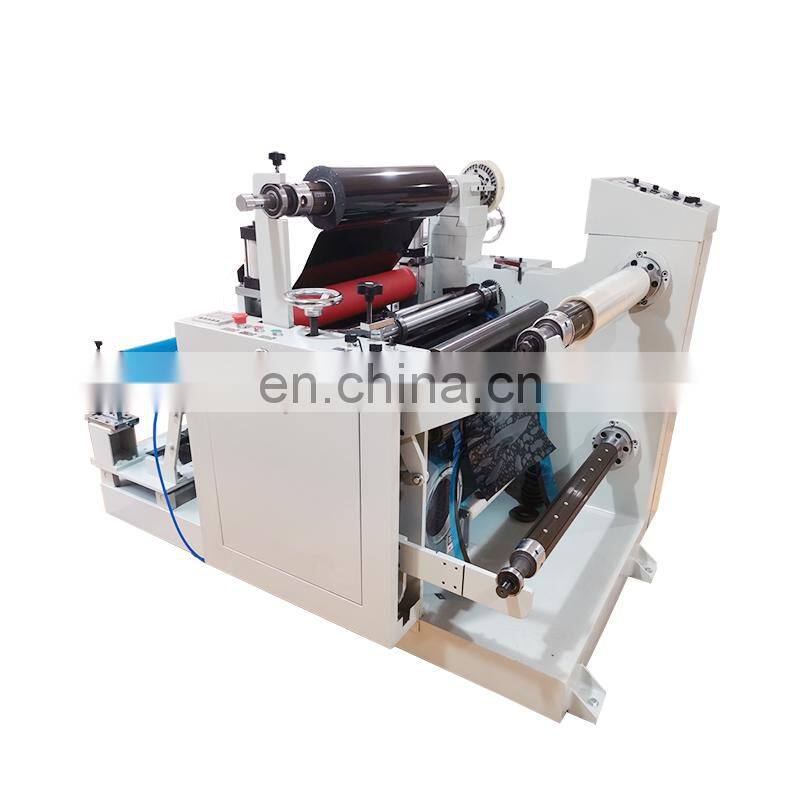

Automatic Aluminum Foil Slitting Siltting and Rewinding Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Narrow Roll Thermal Transfer Ribbons Slitting MachineNegotiableMOQ: 1 -
Dual Purpose Round Knife Cloth Cutting MachineNegotiableMOQ: 1
-
Automatic Ttr Slitting Machine With Laminating FunctionNegotiableMOQ: 1
-
Factory Professional EVA Foam Slitter MachineNegotiableMOQ: 1
-
Small Size Low Price Label Slitter RewinderNegotiableMOQ: 1
Product Overview
Optical material slitting machine, laminating, slitting and rewinding two materials. With hydraulic loading. Specially used for the slitting of PET, OCA, AB glue, PvC, release film, brightness enhancement film, diffusion film and reflective film. The tension control is uniform and adjustable, which meets the requirements of rewinding and unwinding, ensuring consistent material tightness, frequency conversion speed regulation, maintaining acceleration and smooth operation, good anti-scratch function,ensuring no mechanical scratches designed, automatic correction of ultrasonic servo motor, ensuring There is no left-to-right drift in product receipts.
Features:
◎Laminating function
◎EPC (edge positioning control):Unit: Photo Cell*2pcs
◎Waste discharge function
◎Magnetic brake and clutch
◎Length counting function, automatically stop after it reaches the length you set.
◎2 rewinding inflatable shafts, easy for unload materials.
◎Laminating function
◎EPC (edge positioning control):Unit: Photo Cell*2pcs
◎Waste discharge function
◎Magnetic brake and clutch
◎Length counting function, automatically stop after it reaches the length you set.
◎2 rewinding inflatable shafts, easy for unload materials.
Model |
HX-650FQ |
Maximum feed diameter |
800mm |
accessories maximum |
400mm |
slitting width |
1mm-650mm |
Maximum cutting diameter |
400mm |
winding inner diameter |
3 inches |
Unwinding inner diameter |
3 inches/6 inches |
Products Description
Multifunctional laminating and slitting machine
Factory direct support customization
Six core advantages
Direct deal Time guarantee Experience guarantee
Material guarantee Price guarantee After sale guarantee
Science and technology Manufacturing quality assurance
We strive to develop machinery Only to provide you with high quality products
It's not the most expensive, but it's easy to use
It is suitable for many industries, with wide range of uses, easy to use and customized on demand
Non standard customization
Fast delivery
Exquisite materials
Born for efficiency
Convenient operation and high efficiency
We give you more than just It's a laminating machine
Because quality is more reliable.
The strictness of every detail is for your convenience
01 Scope of application
01 Scope of application
It has photoelectric tracking and rectifying system, and magnetic powder clutch is used to control the tension
02 reasonable design
02 reasonable design
The design of the machine conforms to the principle of ergonomics
03 Easy to operate
Variable frequency speed regulation of the main machine, the up and down movement of the rubber roller is
controlled by the air cylinder
controlled by the air cylinder
04 Functional scope
It can be fitted and cut at the same time, or it can be fitted or cut
separately
separately
Product Paramenters
Model |
HX-650FQ |
Max Feeding Width |
650mm |
Main Engineer Power |
2.2kw |
Speed |
80m/min |
Size |
2400x1700x1300mm |
Weight |
1000kg |
Rewinding Diameter |
600mm |
Winding Diameter |
450mm |
Precision |
±0.1mm |
Power |
220V 50HZ |
1 |
The max width: 650mm |
||||||
2 |
Tolerence: 0.05mm, Precision: 0.1mm |
||||||
3 |
Material thickness: 0.1mm-1mm |
||||||
4 |
Kiss cut or cut through available |
||||||
5 |
Under CE and ISO Certifications |
||||||
6 |
Warranty for machine: 12months |
||||||
7 |
Delivery time: 30days |
||||||
8 |
Cut through for standard machine |
||||||
9 |
Kiss cut is for optional |
||||||
Product configuration
stainless steel
slitting knife
motor
Photoelectric tracking and correcting system
Provide customized service according to demand
Machine refit slip shaft
Product packaging
Wooden case for export
.You can also choose vacuum packaging
Our company
We are a team of industry professionals with strong backgrounds in cutting, die cutting,slitting, laminating and rolling. Other related machines in our fields can be customized based on your specific requirements.
Kunshan Hexin Precise Machinery is located in Kunshan city,Jiangsu province. We are near Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train. Established in 2007, we have been dedicated on converting machines which are used before and after printing for over 10 years.
Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers reliable products,perfect service.Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials,insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.
Kunshan Hexin Precise Machinery is located in Kunshan city,Jiangsu province. We are near Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train. Established in 2007, we have been dedicated on converting machines which are used before and after printing for over 10 years.
Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers reliable products,perfect service.Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials,insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.
