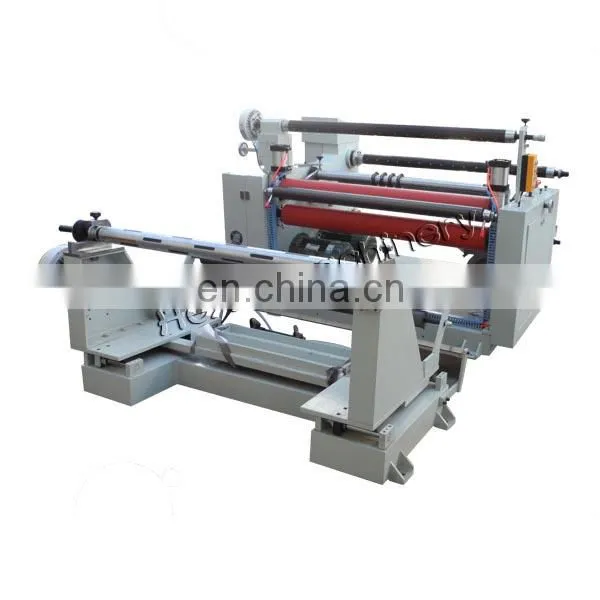

Non-Woven fabric slitting machine with laminating function
working video links
| https://youtu.be/RM5ftwgrnB0 |
| https://youtu.be/xQe6ZoGjlHw |
Application:

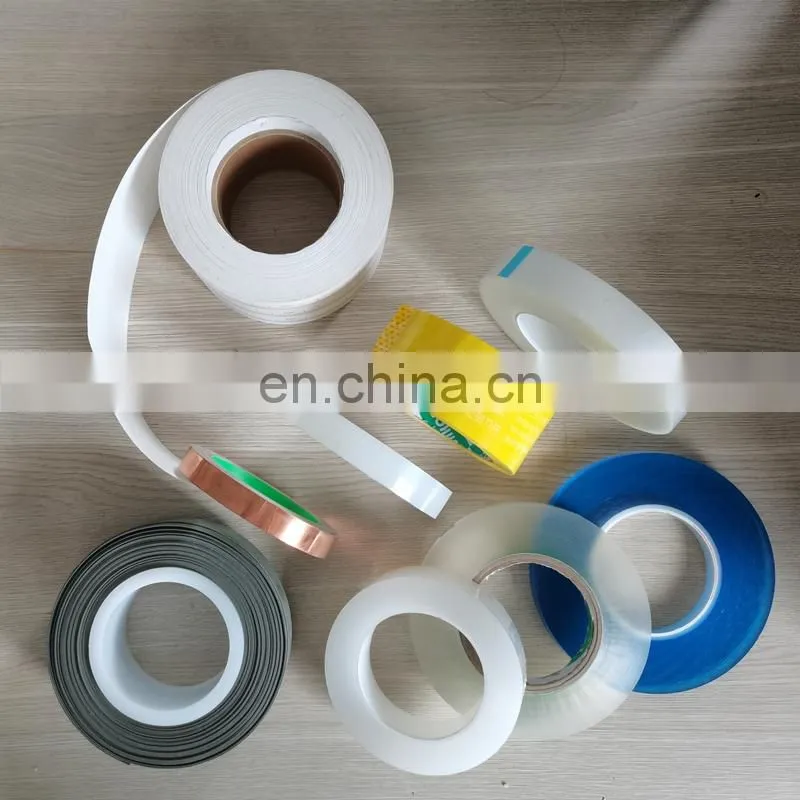

It is applicable for slitting industrial tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, 3C, leather, garment, plastic, etc.
Main Technical Parameter
We have two feeding widths for your options.
The price for HX-1600FQ will have extra cost 2,999USD.
|
Model |
HX-1300FQ |
HX-1600FQ |
|
Max feeding Width |
1300mm |
1600mm |
|
Main Engineer Power |
4kw |
6kw |
|
Speed |
80m/min |
80m/min |
|
Size |
2400*2000*1300mm |
2400*2300*1600mm |
|
Weight |
1200kg |
1500kg |
|
Max. Unwinding Diameter |
600mm |
800mm |
|
Max. rewinding Diameter |
450mm |
450mm |
|
Precision |
±0.1mm |
±0.1mm |
|
Power |
380V 3Phase |
380V 3Phase |
|
Mini. slitting width |
8mm |
8mm |
Features
* Laminating function
* EPC (edge positioning control) device:Ultrasonic sensor
* Waste discharge function
* Magnetic brake and clutch
* Length counting function, automatically stop after it reaches the length you set.
* 2 rewinding inflatable shafts, easy for unloading materials.
* The minimum slitting width: 8mm
* Material thickness range: 0.05-3mm
1. Warranty:1 year after you get the machine.
2. Promptly response within 24 hours in working days.
3. Free training before machine delivery and on-site training engineers available.
1. Q: Are you a factory or trading company?
A: We are a factory and manufacturer
2. Q: Where is your factory located in ? How can I visit there?

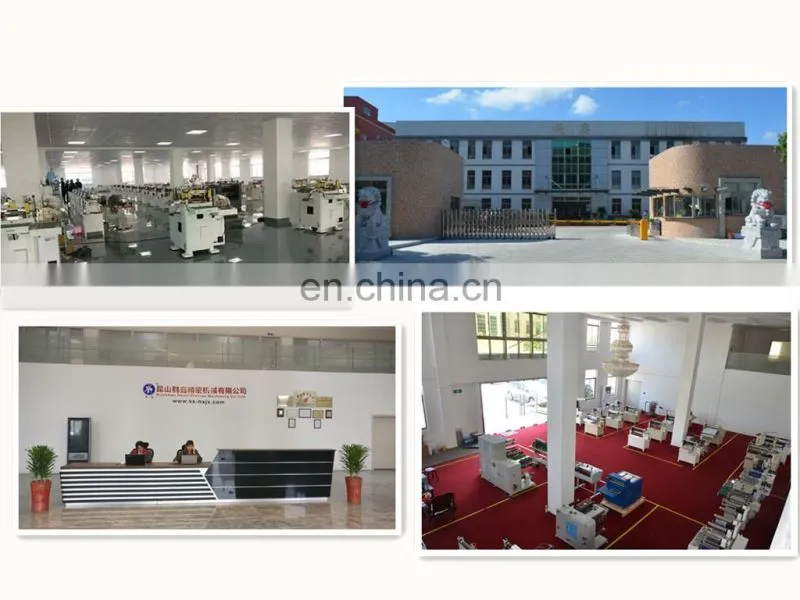

A: Our factory is located in Kunshan which is very near from Shanghai, and
our detailed address is: No.66, Kaigui Road, Yushan Town,
Kunshan, Suzhou, Jiangsu, China. If you fly to Shanghai hongqiao airport
or Pudong airport, we can pick you up by car from there. We welcome all our clients, home and abroad, to visit us.
3. Q: what are your main products?
A: Our main products are belt cutting machines, slitting machines, sheeting
machines, laminating machines and rotary die cutting machines.
4.Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slit,
laminate, rotary die cut raw materials can use our machines.
5.Q: How to control the quality in your factory ?
A: Quality is priority. We control the quality of our products strictly, from the
incoming materials to the finished products. Our factory has obtained
CE & ISO Certification
6. Q:If there are no machines available from your list, could we customize
non-standard machines from you ?
A: Yes, we have our own professional design engineers, and can customize
products according to your requirement.
